PBS-T250

Name: PBS-T250
SKU: 6621
Availability: InStock

49,00 €

Only 1 left in stock

Add to wishlist

SKU: 6621 Category: Sensors

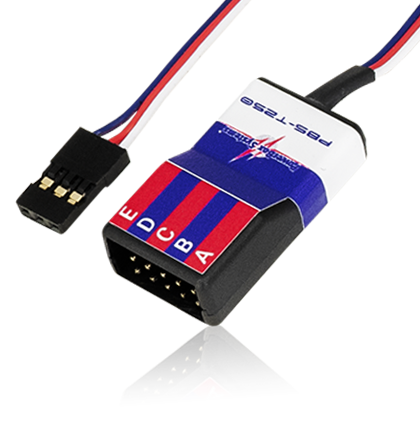

The PBS-T250 is a five-way temperature sensor for measuring cylinder head temperatures. It is designed to work with the PowerBox CORE, but is also suitable for use with other telemetry systems.

Features

Temperature measurement up to 250°C
Sockets for five temperature sensors
Compact design
Low weight
Supports the following telemetry systems: PowerBox CORE P²BUS, Multiplex M-Link, Jeti EX-Bus, Futaba

Operating voltage	4.0V – 9.0V
Current drain Power-on state	max. 20mA
Supported RC systems	PowerBox, Jeti, Multiplex, Futaba
Dimensions	32 x 18 x 10 mm
Weight	7g
Temperature range	-30°C to +85°C

Product description

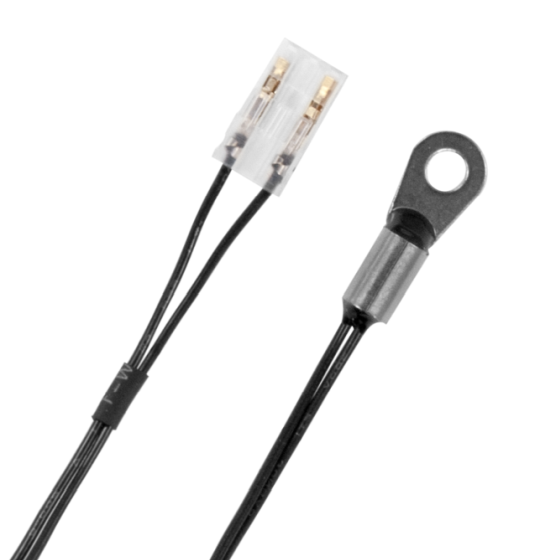

The PBS-T250 can measure a maximum of five temperatures simultaneously, which means that it is even possible to monitor all the cylinder head temperatures of a radial engine. The set is supplied as standard with two temperature sensors, and further sensors are available as accessories.

The PBS-T250 is Plug’n’Play for the CORE telemetry system, but can also be switched for use with Jeti, Futaba and Multiplex using the PowerBox Terminal program.
