PBS-P16

109,00 €

In stock

SKU: 6622 Category: Sensors

The PBS-P16 is an ultra-precise pressure sensor for up to 16 Bar. It is designed to work with the PowerBox CORE, but is also suitable for use with other telemetry systems.

Features

Pressure measurement up to 16 Bar (230 psi)
Compact design
Low weight
Supports the following telemetry systems: PowerBox CORE P²BUS, Jeti EX-Bus, Multiplex M-Link, Graupner HoTT, Futaba

Technical Data

Operating voltage	4.0V – 9.0V
Current drain Power-on state	max. 20mA
Supported RC systems	PowerBox, Jeti, Multiplex, Graupner, Futaba
Dimensions	42 x 17 x 12 mm
Weight	14g
Temperature range	-30°C to +85°C

Product description

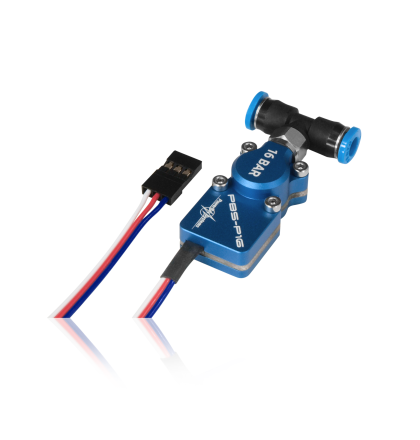

The robust aluminium case is machined from solid, and contains a small pressure chamber fitted with a digital Mems pressure sensor. The Festo T-connector is simply installed in the existing 4 mm pressure line to the pressure tank. Other pressure hose connections can easily be screwed into the PBS-P16’s M5 threaded socket.

The PBS-P16 is Plug’n’Play for the CORE telemetry system, but can also be switched for use with Jeti, Futaba*, M-Link and HoTT using the PowerBox Terminal program.

*Futaba will display the pressure value as a temperature as the system cannot show pressure values
