Home / Engines / Gas Engines

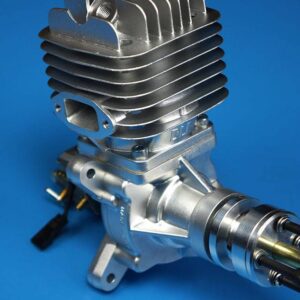

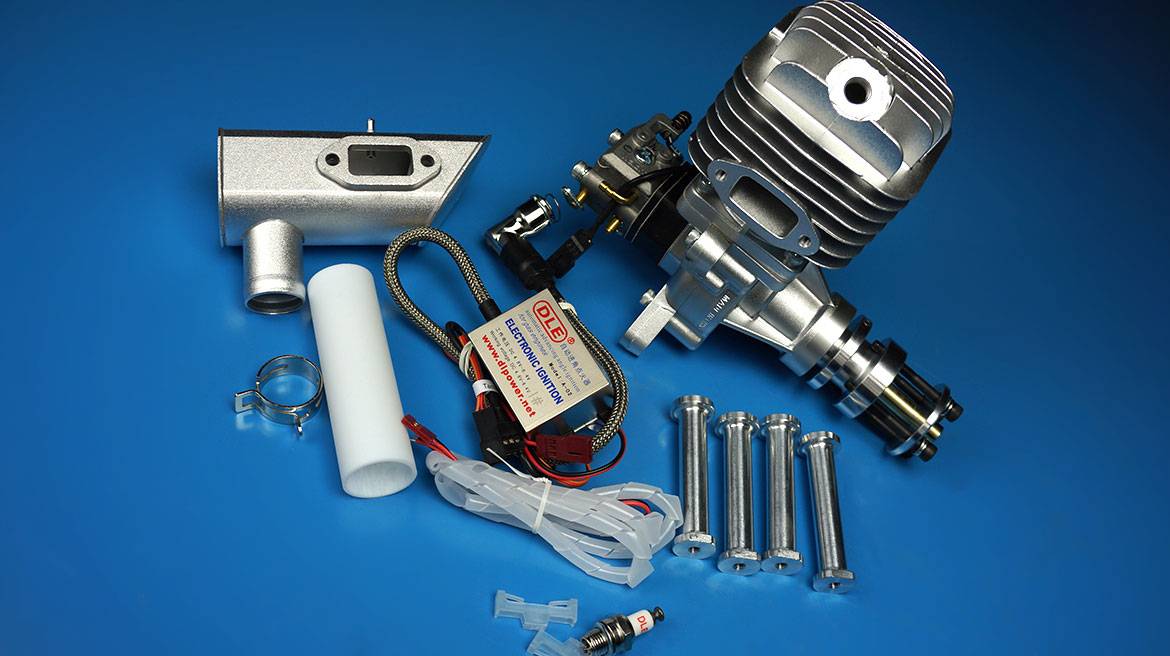

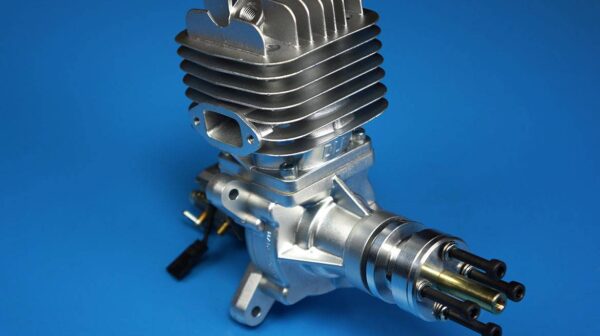

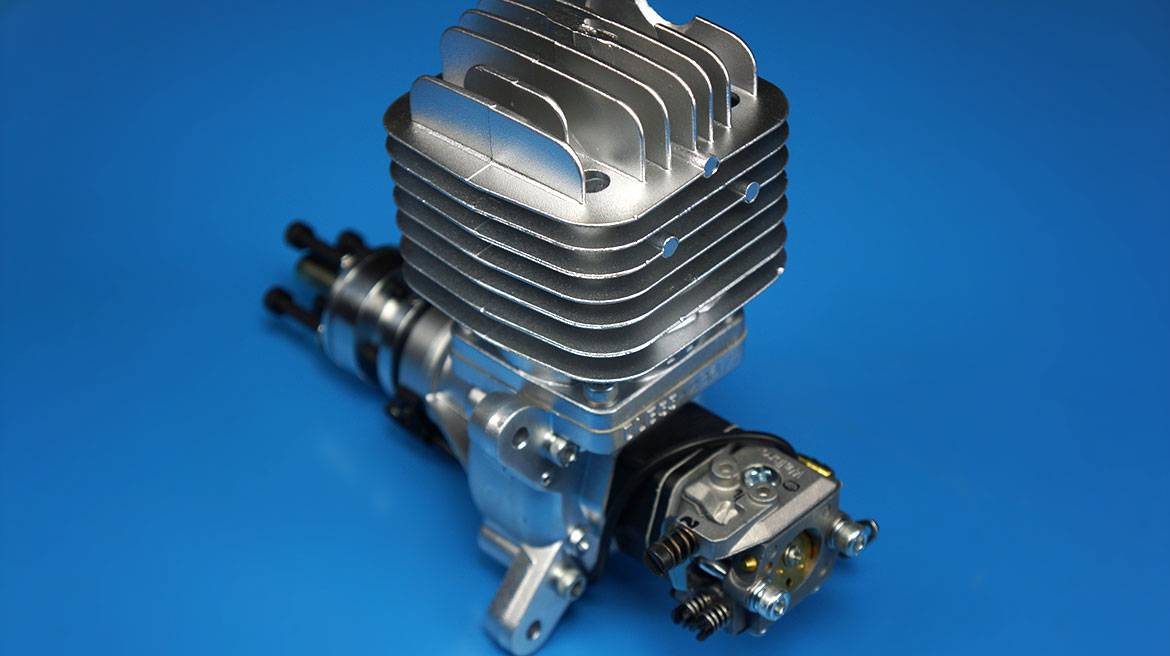

DLE55RA

  • 111dt
  • 20Rdt

495,00 €

Out of stock

Add to wishlist
SKU: 55RA Categories: Engines, Gas Engines
  • 111dt
  • 20Rdt
  • Description
  • Reviews (0)
  • Attachment

This engine is not a toy , before staring the engine ,read the operators manual carefully ,if failure to do so may result in personal injuries , DLE refuses any liability;Before each operation, check the engine mount ,propeller and airframe carefully  to ensure all engine screws and nuts is tight . Loctite(242,243) is strongly recommended during the installation.

■CAUTION : During the break-in period, it is recommended that the engine be installed on the aircraft or a test stand with an appropriate shock absorber. Otherwise it is probable that vibration could rebound back to the engine and serious damages may occur during the break-in period. For your safety and the safety of others, please do not stand in front or in line with the propeller when the engine is running.

Parameter

  Performance :

5.5HP/8500rpm

  Idle Speed :

1500 rmp/min

  Static Thrust :

14.5kg/100 meters  Altitude

  Static Thrust :

12.8kg/1800 meters  Altitude

  Recommended Propeller :

22×8 ; 22×10 ; 23×8 ; 23×10 ;

  Spark Plug Type :

NGK CM6

  Displacement :

 55.6cm3

  Diameter × Stroke :

 45mm×35mm

  Compression Ratio :

 7.6:1

  Lubrication Ratio :

 30:1

  Weight of Main Engine :

 1330g

  Weight of Exhaust :

 140g

  Weight of Ignition :

 140g

  Ignition voltage :

 4.8V-8.4V

Download

Operator’s Manual for DLE55
PDF
Three-dimensional diagram for DLE55
RAR
