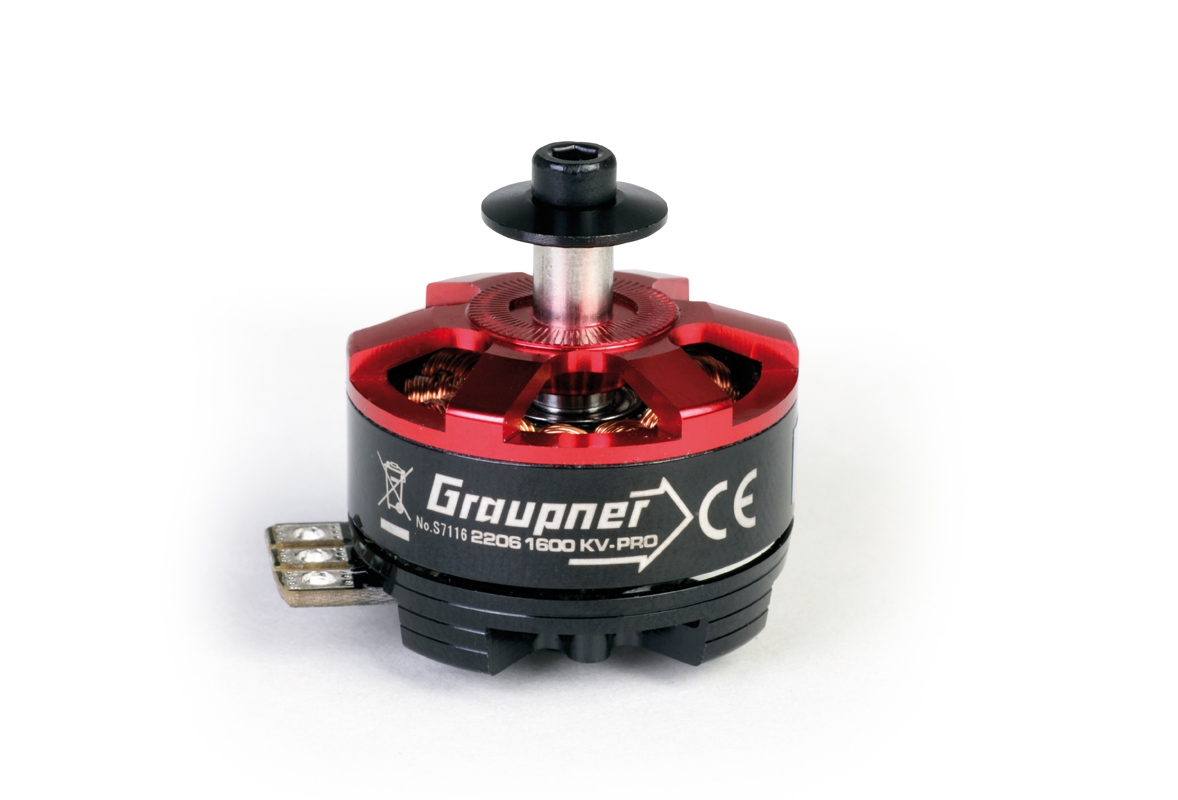

ULTRA PRO 2206 1600 KV brushless Motor mit Rechtsgewinde

High-performance motor for professionals for multicopters

Hand-wound brushless external rotor motors with a special multiple winding for optimal filling of the winding and thus optimal efficiency and optimized cooling.
Specially shaped, thicker and larger N52H magnets for up to 30% more torque and good temperature resistance.
Particularly stable and thicker motor shaft.
A 2206 motor stator was installed. The motor size corresponds to the previous Graupner 2806 sizes, ie 28 mm outer diameter with 6 mm stack height. Optimum power-to-weight ratio.
Less mass inertia thanks to the new M3 prop assembly.
PCB for easy soldering of the connection cables.
The set includes a set of screws and a prop adapter for the anti-twist protection of the Graupner 3D PROP.
The 1600KV motors are particularly suitable for multicopters with 6.5 inch raceprops with 4S LiPo with higher capacity or for racecopters with 6S LiPo and 5.5 inch raceprops.

Technical specifications:
