- Dimensions (L/W/H): 35.0 x 15.0 x 30.7 mm
- Weight: 40.0 grams
- 0.055/0.065 sec/60 degrees and 80/120 Ncm at 6.0/7.4 volts
- High-voltage digital servo
- Possible application examples: wing servo in tall gliders, swashplate servo for helis of the 500 / 550 class, tail servo in large jet models
DESCRIPTION
WHAT DOES HV MEAN AT SAVÖX.
HV stands for High Voltage. Savöx servos marked in this way can be operated with up to 8.4V voltage. The use of a 2s LiPo battery is possible without any problems. All HV servos can of course also be operated with a lower voltage from 4.8V, but here less power is available.

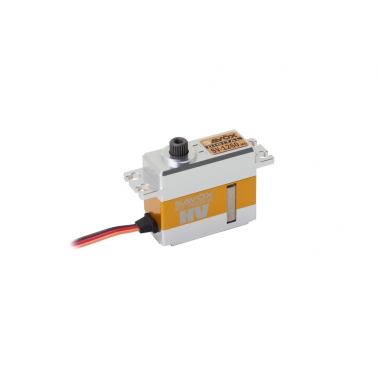

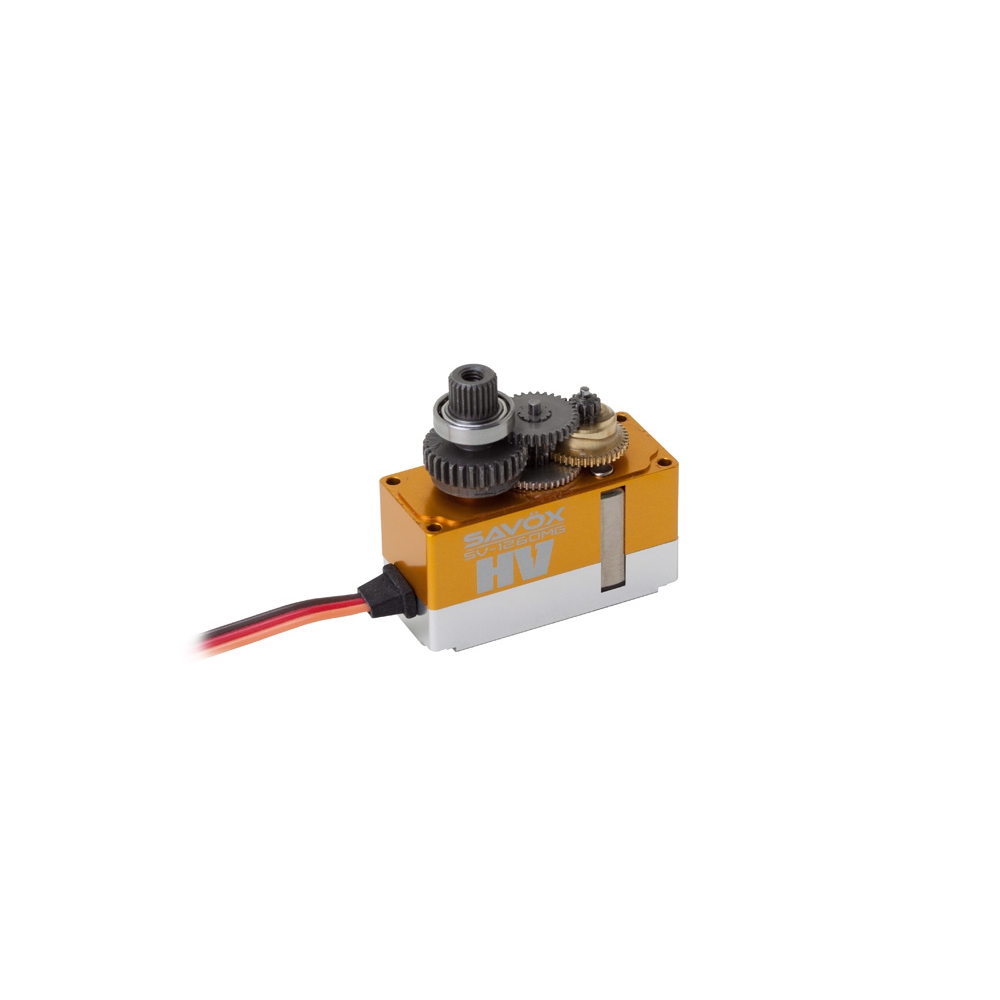

With the SV-1260MG, the Taiwanese manufacturer Savox has succeeded in developing one of the most powerful servos in the 15mm class. The technical data of this high-voltage servo is impressive: The setting force at 7.4V is 12kg, with an extremely short setting time of 0.065s to 60°. It is made possible by a powerful coreless motor, which is significantly larger than previous motors of this size. An aluminum housing ensures good heat dissipation and is at the same time an extremely robust yet lightweight housing. The metal gear has a special coating and is extremely free of play. These attributes make it an ideal companion when power, positioning accuracy and freedom from play are required in a confined space. Whether as an area servo in tall ships,
CHARACTERISTICS
| Actuating time S2/60° (sec): | 0.055 |
| Actuating time S1/60° (sec): | 0.065 |
| Force S2 (kg*cm): | 12.0 |
| Width (mm): | 15.0 |
| Height (mm): | 30.7 |
| Length (mm): | 35 |
| Weight (g): | 40.0 |
| Force S1 (kg*cm): | 8.0 |
| High voltage capability up to 8.4V: | Yes |
| Packaging: | default |
| Application recommendation: | helicopter, plane, car |
| Ball bearings (number): | 2 |
| Voltage 1 (Volts): | 6.0 |
| Motor type: | coreless motor |
| Gear type: | metal |
| Output teeth (number): | 25 |
| Voltage 2 (volts): | 7.4 |
| Housing type: | full metal |
| Classification: | Midi |
