NGH GT9-PRO Two-Stroke Gas Engine

Name: NGH GT9-PRO Two-Stroke Gas Engine
SKU: NGHGT9
Availability: InStock

248,00 €

Only 1 left in stock

Add to wishlist

SKU: NGHGT9 Category: Gas Engines

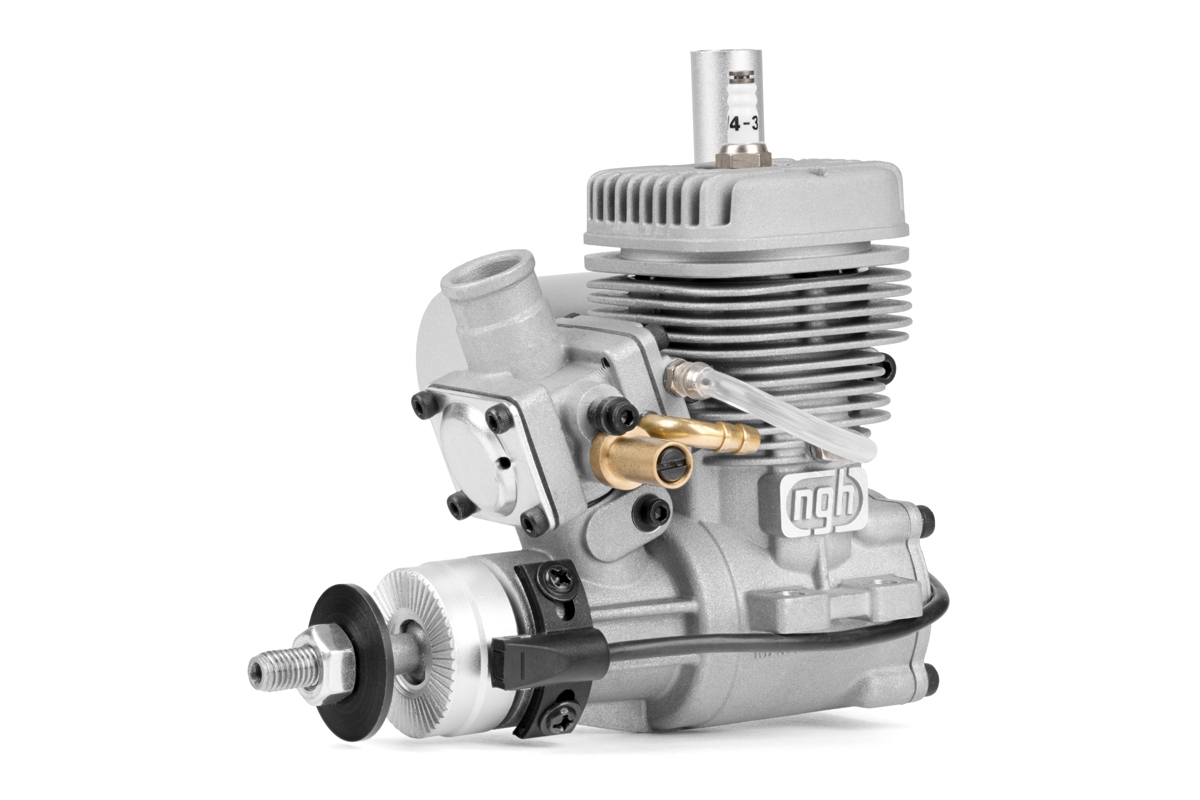

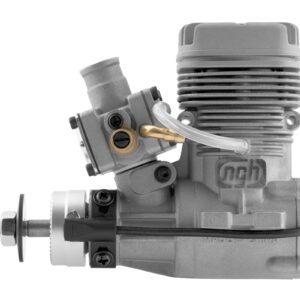

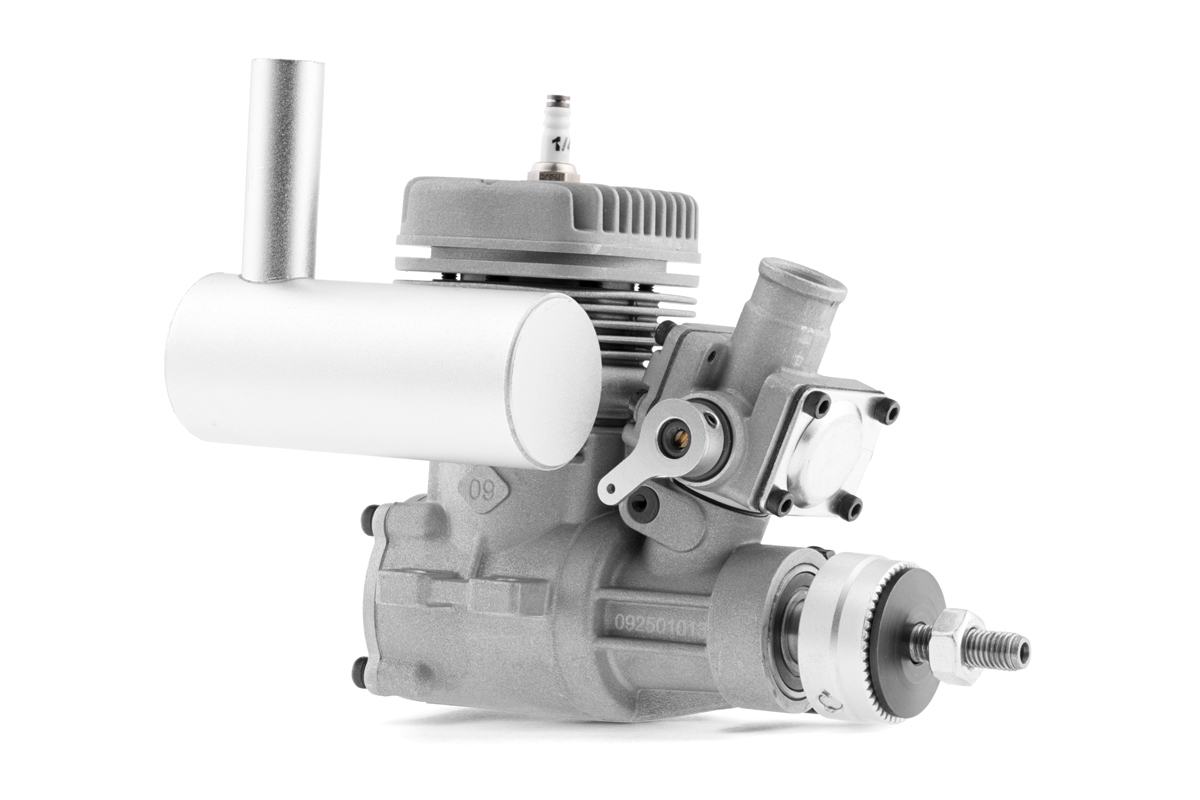

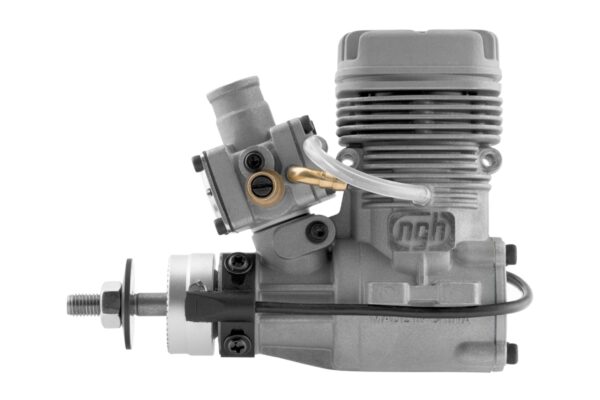

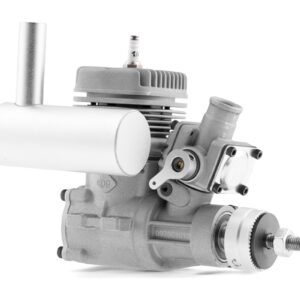

Airplane gasoline two-stroke single cylinder engine with displacement 9ccm and power output 1,2HP (0,89kw) at 13 000rpm. Recommended fuel mixture = N95 gas 20:1 with fully synthetic 2T oil.

KAVAN Europe s.r.o. is happy to introduce the NGH line of petrol engines. The manufacturer, Changsha Guanghua Aviation Technology Co., Ltd., has become widely recognized for affordable priced high quality and performance engines. They are manufactured and designed from scratch for model aircraft offering uncompromised quality, high performance and reliability using accessories like RCEXL® electronic ignitions.

The two stroke engine line up starts with the small 9 ccm one that would fit models designed for 6.5-8.5 ccm (.40-.53 cu inch) glow engines perfectly – up to the mighty 130 ccm twin for giant models.

Displacement [ccm]	9
Bore [mm]	23.3
Stroke length [mm]	21
Operating RPM [ot./min]	2000 – 11000
Power [HP]	1.2
Motor power [W]	890
Tensile force [kg]	3.8
Weight [g]	435
Ignition weight [g]	100
Spark plug type	1/4-32
Ignition power-supply [V]	6 – 14.4
Recommended Propeller	Two-blades 11×6 ; 11×7 ; 12×6
