Mini XRT RTR TQi VXL-3s Orange – USB-C Charger / 2s Li-Po

Traxxas 108076-1-ORNG – Mini XRT® 3s Brushless Mini Monster Race Truck – ORANGE

Extreme 3s Performance. Compact Size.
Mini XRT® is a true rocket with full 1/10 scale Velineon® 3s brushless power in a compact, take-anywhere size. Mini XRT lives up to its name with unprecedented 88+ kph speed and ferocious acceleration, backed by race-inspired engineering and unrivaled toughness. Mini XRT shatters all expectations with big-scale performance and toughness that fits in a backpack.

Bred For Performance
Like its X-series™ counterpart, Mini XRT was engineered with maximum focus on speed, handling, and performance. A low, ultra-wide stance delivers supreme confidence and control as Mini XRT muscles its way to 88 kph and beyond. It’s a whole new way to experience big-scale fun and toughness in a backpack-friendly size.

1/10 Scale VXL-3s Brushless Power
The Velineon VXL-3s brushless power system is the heart of Traxxas’ fastest and most powerful 1/10 scale vehicles. For the first time ever, this extreme 11.1-volt powerplant now comes installed in a compact platform. The result is astonishing acceleration, 88+ kph speed, and wheel-standing power at any rpm.

1/10 Scale 4X4 Driveline
Adding 3s Velineon power to a compact platform requires bold engineering. Mini XRT comes outfitted with the proven driveline components of Traxxas’ toughest 1/10 scale 4X4 trucks. Front, center, and rear steel-gear differentials, along with 32-pitch gearing and HD driveshafts, far exceed requirements for strength and long life.

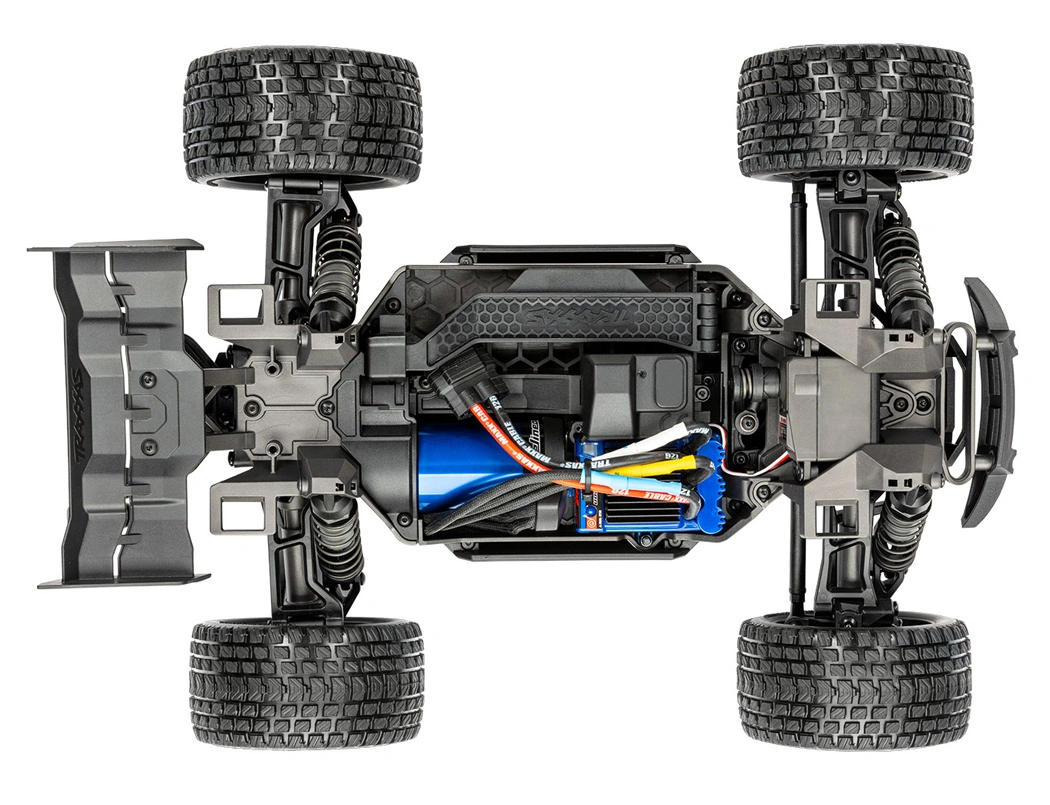

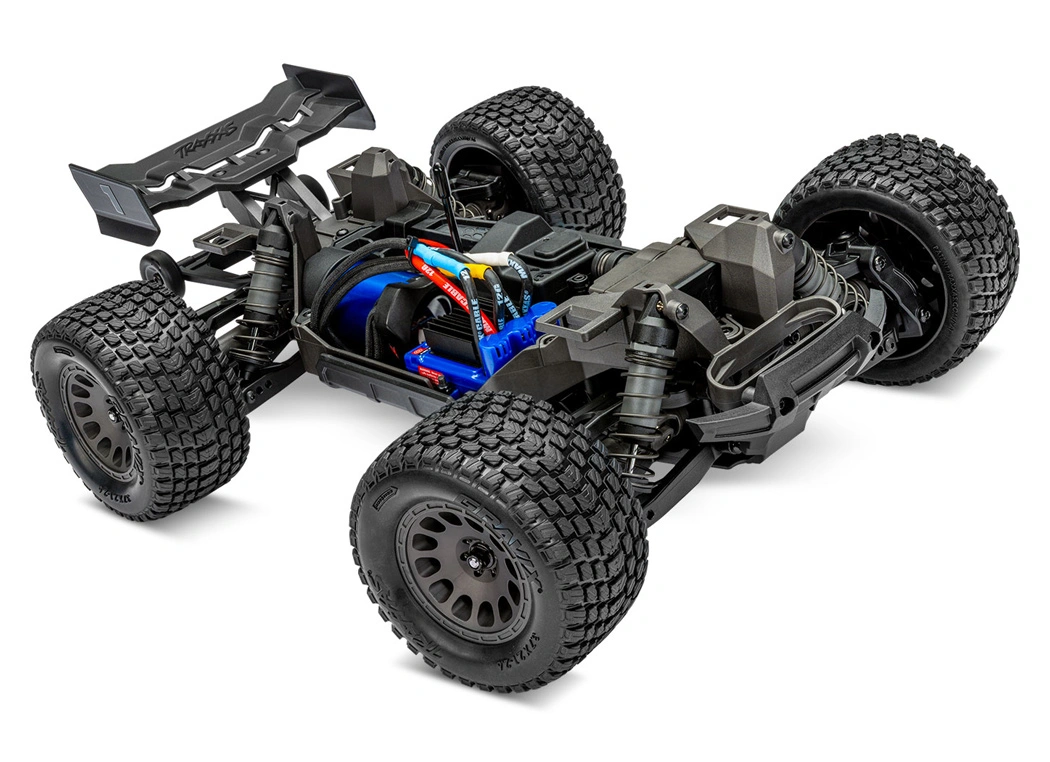

Maxx Chassis Technology
Mini XRT is the newest truck to use the revolutionary chassis design pioneered in Mini Maxx®. Perfectly sized to fit into a backpack, Mini XRT transforms full-scale performance and durability into a supremely compact chassis. Just one look at the rigid, unified structure and you know it’s built Maxx tough.

Clipless Body
Mini XRT’s innovative clipless body is rock solid and easy to use. Just drop the body onto the chassis and snap it into place for a secure hold. When it’s time to change the battery, depress the tabs under the wheel wells and lift to access the chassis. Nothing else is faster or latches more securely.

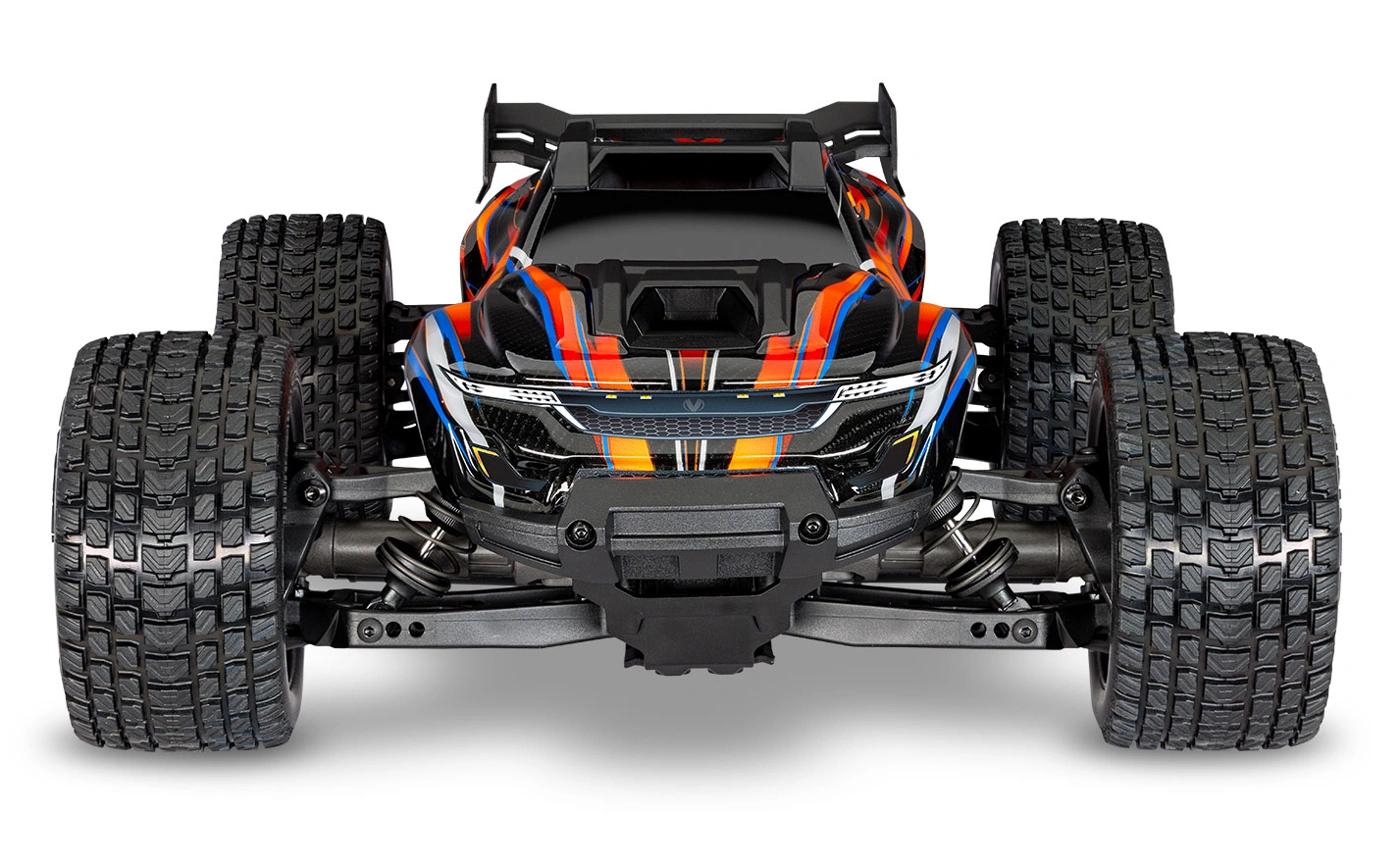

WideMaxx Suspension
Mini XRT relies on proven WideMaxx® suspension design to deliver sure-footed grip and laser-focused handling. Mini XRT sits low and wide for hard cornering and maximum stability at speed. The long-travel suspension delivers refined damping control to maintain composure over the roughest terrain.

Truck Specs:

• Length: 376mm
• Width: 279mm
• Ground Clearance: 27mm
• Weight: 1.81kg
• Height: 127mm
• Wheelbase: 220mm
• Shock Length: 88mm
• Tire Diameter: 94mm
• Wheel Diameter: 2.1″ (53mm) outer, 2.6″ (66mm) inner
• Speed Control: VXL-3s brushless ESC
• Motor (electric): Velineon 3500 (3500 Kv)
• Transmission: Direct-drive with center differential
• Overall Drive Ratio: 7.36:1
• Differential Type: Planetary, steel gear
• Gear Pitch: 32
• Chassis Structure/Material: Composite modular tub
• Brake Type: Electronic
• Drive System: Shaft-driven 4WD
• Steering: Double-shear bellcrank
• Wheels & Tires: Black dual-profile XRT wheels with pre-glued 4″ Gravix tires
• Radio System: TQi 2.4 GHz high output (2-channel) with TSM
• Servo: Waterproof high-torque, metal-gear 2075X
• Top Speed: 60+ kph with 2s LiPo & 88+ kph with optional 3s LiPo
• Skill Level: 1
• Battery Tray: L113 x W41 x H22mm
• Required Batteries: 4 “AA” (transmitter)

Motor specs:

• Type: Velineon 3500 Kv sensorless brushless
• Length: 77mm
• Diameter: 36mm
• Connector Type: 3.5 mm bullet

ESC Specs:

• Input Voltage (cells): 7.4 – 11.1 volts, 2s–3s LiPo
• BEC Voltage: 6.0 volt
• Reverse Delay: Yes, with lockout
• Thermal Protection: Two-stage thermal shutdown

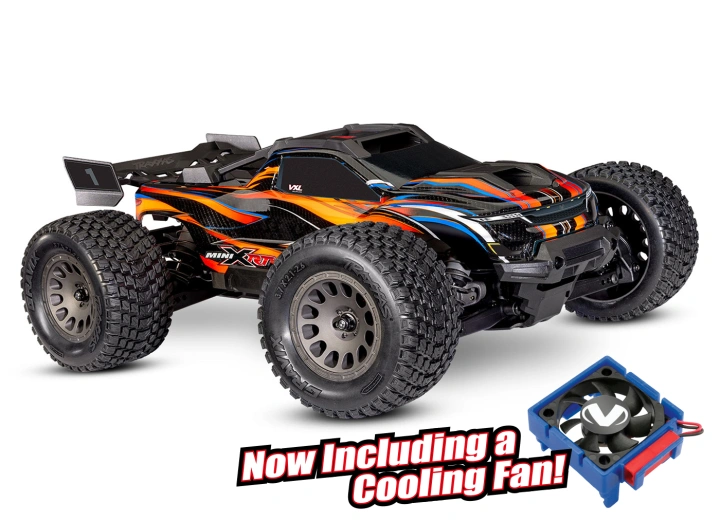

• Ports: Auxiliary fan

What’s In The Box:

• Mini XRT Ready-To-Race monster truck
• Velineon VXL-3s brushless power system

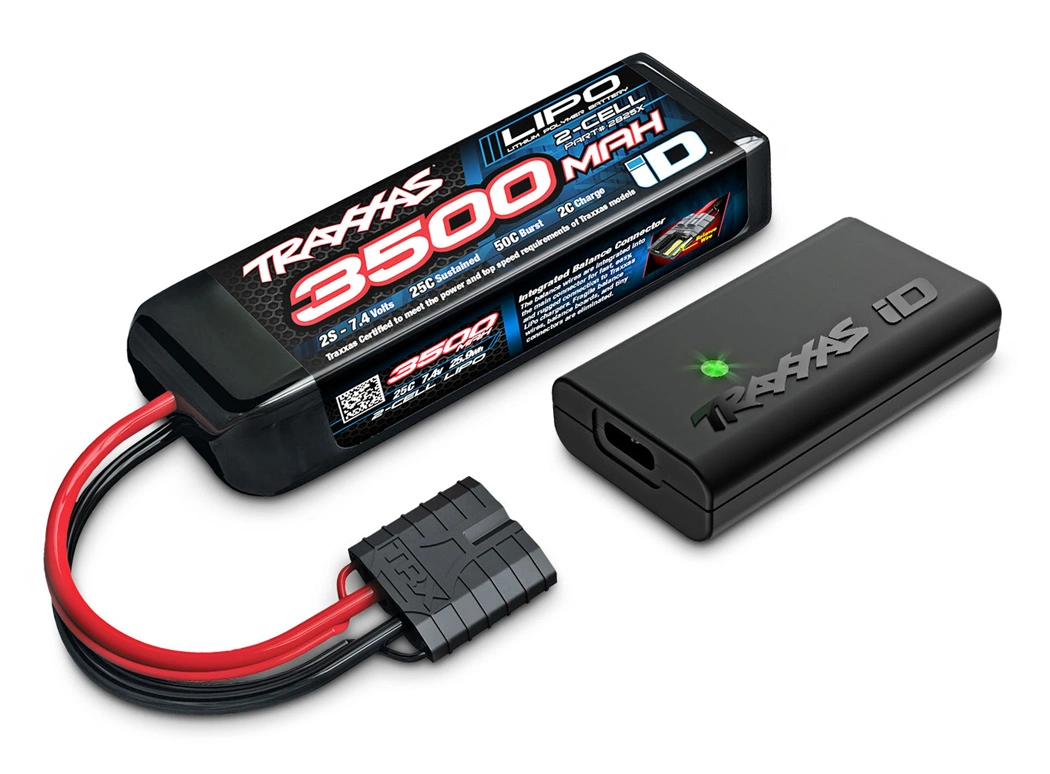

• 3500 mAh 2-cell LiPo battery
• 2S 2A USB-C charger
• Quick Start Guide
• TQi 2.4 GHz radio system
• High quality maintenance tools

What You’ll Need:

• AA Alkaline Batteries: Four for the transmitter
• Charging Accessories: Power adapter 2912 and power cable 2916 recommended for peak charging performa
