DESCRIPTION

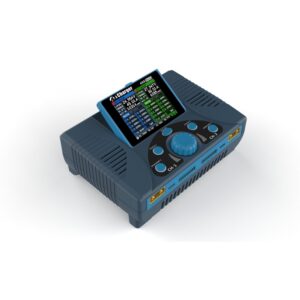

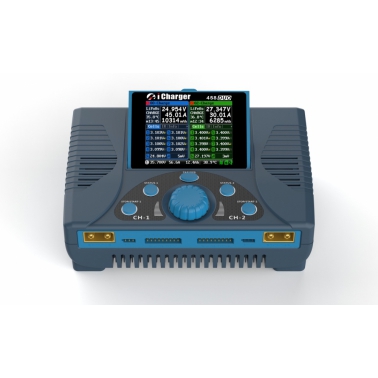

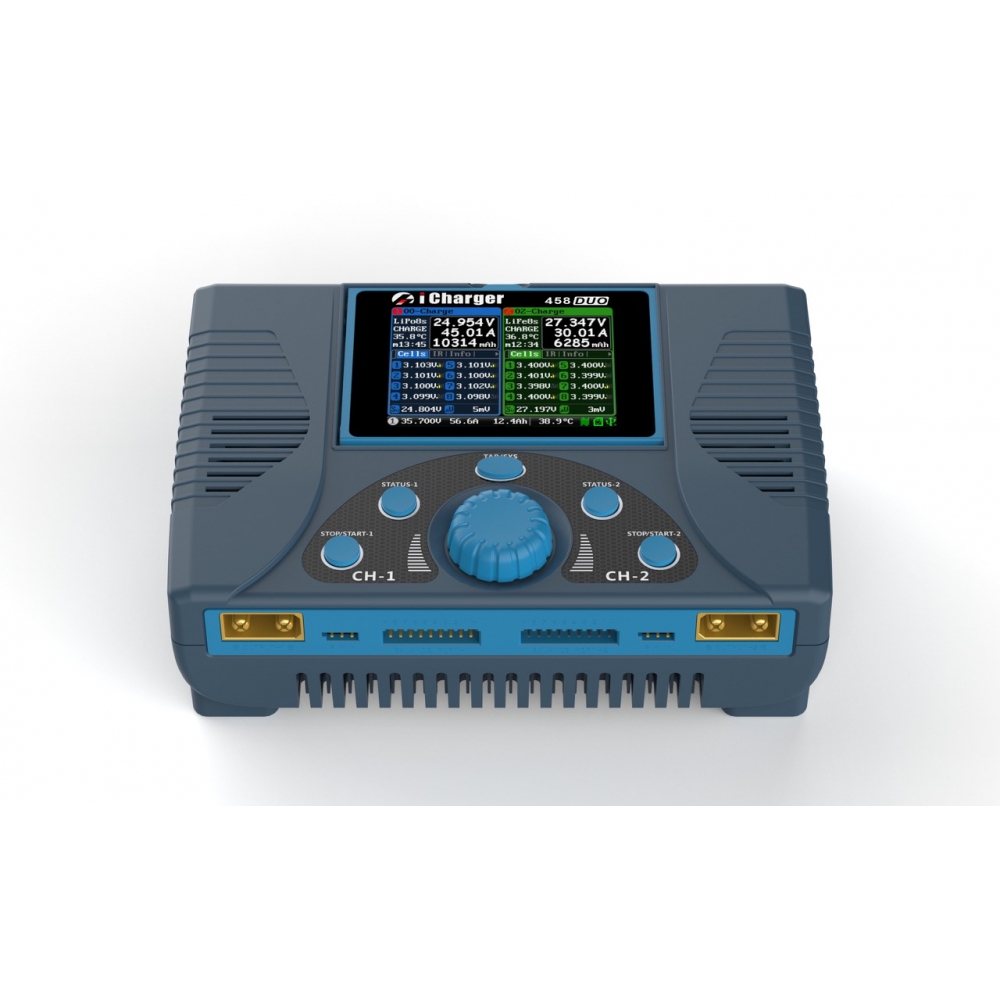

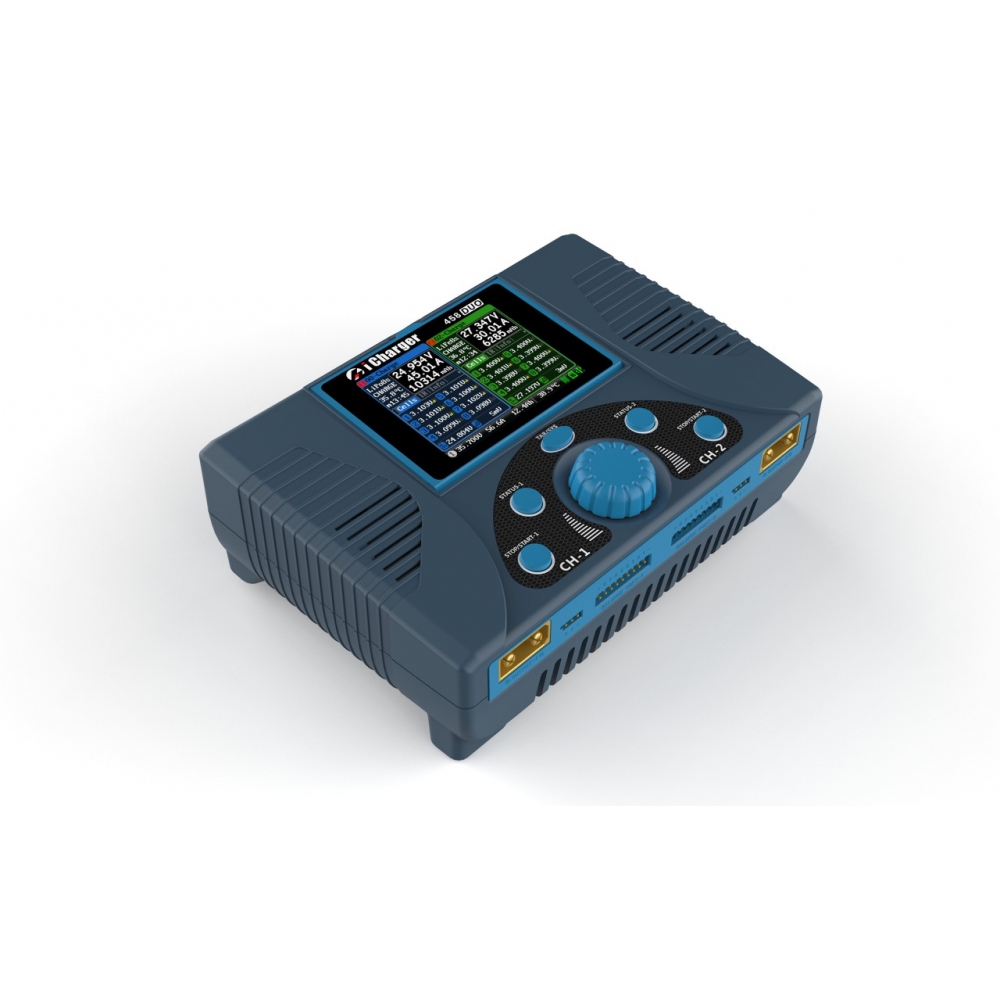

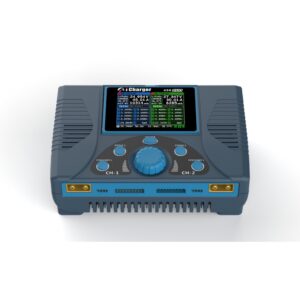

With the new iCharger 458DUO, the renowned manufacturer Junsi has completely technically renewed the well-known 308DUO charger.
The new 458DUO charger combines the advantages of the well-known Junsi iCharger 308DUO with the latest technology and therefore significantly more performance and new functions.
The two charging outputs are equipped with high-current-resistant XT90 plugs in order to be able to transmit the power permanently.
The technical data is impressive, 2200W charging power (from >40V), 1-8s LiXx cells and up to 45 amps charging current are also enough for large batteries with high capacity. Of course, all other battery types can also be charged, such as LiHV, LiIo, NiZn, PB, NiCd or NiMh batteries.
The total discharge power is 140W (80W per output if only one output is used), but can be increased up to 2200W using an external load (discharge resistor). Of course, the iCharger 458DUO also supports regenerative charging. Here, the battery capacity is fed back into the supply battery, for example from a full flight battery.
The balancer current of 4 amps total (2A per output) always ensures perfectly balanced cell voltages.
A USB-C PD port for charging smartphones etc (5V/3A, 9V/2A, 12V/1.5A) or for software updates is also installed. The Micro SD slot can be used to log data, but also for future updates.
The “Digital Power” function is new. Here an output can be used as a stabilized power supply. The output voltage can be adjusted from 2V to 32V, the current from 1A-45A (Please note that there must be an appropriate supply for this! )
A servo tester is also integrated, please note that an external power supply is necessary!
The menu navigation is almost identical to the well-known Junsi iCharger 308DUO, 406 DUO or 4010DUO.
A 2.8″ IPS LCD display ensures good readability even in low light.
Instructions in English are included with the loader in the form of a CD; you can download the German version from us.
All Junsi chargers in the X and DUO series are developed and approved for use in model making. Industrial use is not intended and therefore not permitted! All Junsi chargers may only be operated on power supplies developed for model building! No AGM batteries may be charged in the PB program!
Scope of delivery: 2x XT90 socket, EC8 cable to assemble yourself (counterpart charger connection)
CHARACTERISTICS
| Charging current adjustable per output: | 0.05A – 45A |
| Charging current adjustable in synchronous mode: | 0.05A – 70A |
| Input voltage: | 10V – 49V DC |
| Width (mm): | 117.8 |
| Discharge power Max. in synchronous mode: | 140W |
| Max. voltage lead batteries: | 15 (2 – 30V) |
| Max. charging power at one output: | 1600W |
| External high-current discharge asynchronous: | 1600W |
| Length (mm): | 171.2 |
| Accuracy balancer (depending on setting): | 1mV |
| Balancer compensation current per output: | 2 |
| Charging power Max Syncron: | 2200W |
| Max. discharge power: | 2200W |
| External high current discharge synchronous: | 2200W |
| Maximum power: | 2200W |
| Max. number of NiCd/NiMH batteries: | 25 |
| Height (mm): | 57.5 |
| Input current limit: | 70A |
| Max. charging current: | 70A |
| Discharge power per output: | 80W |
| Weight (g): | 930 |
| Micro SD card slot: | Yes |
| Integrated power supply: | No |
