Introduction
In the early 2000s, “flat foamy” models were extremely popular because they could be scratch built from foam sheets you could buy in many stores. Today, most foam models are fully-molded sport and scale aircraft – and few can match the unique capabilities and performance of flat foam models, especially those designed and built for aerobatic plus 3D flying! The E-flite® Eratix 3D FF (Flat Foamy) 860mm is perfect for experienced pilots who already build and fly flat foam models, intermediate pilots who are interested in them but don’t want to undertake a complicated build, and less experienced pilots who have always wanted to try but were intimidated by the extra effort and skills required to buy, build and fly such a model. The Eratix 3D FF is the easiest-to-fly, most convenient, and best value in a flat foamy model yet!
Features
- The easiest to buy, assemble and fly flat foamy model yet – capable of slow cruising, sport flying, basic and all-out 3D aerobatics
- Specially tuned brushless motor that’s factory-installed and ready for use with popular 3S 600–850mAh batteries
- 15-amp Spektrum Avian™ Smart ESC provides real-time battery voltage, RPM, and other data via compatible receivers and transmitters
- Extremely durable yet lightweight, high-density EPP airframe with carbon fiber and composite reinforcements
- Three factory-installed digital servos and linkages, including a metal-geared aileron servo
- Factory-finished in a high-contrast, high-visibility trim scheme for excellent orientation
- Fast and easy assembly, unlike similar class models – no glue or tape required
- Landing gear snaps into place for easy installation, removal, and replacement
Overview

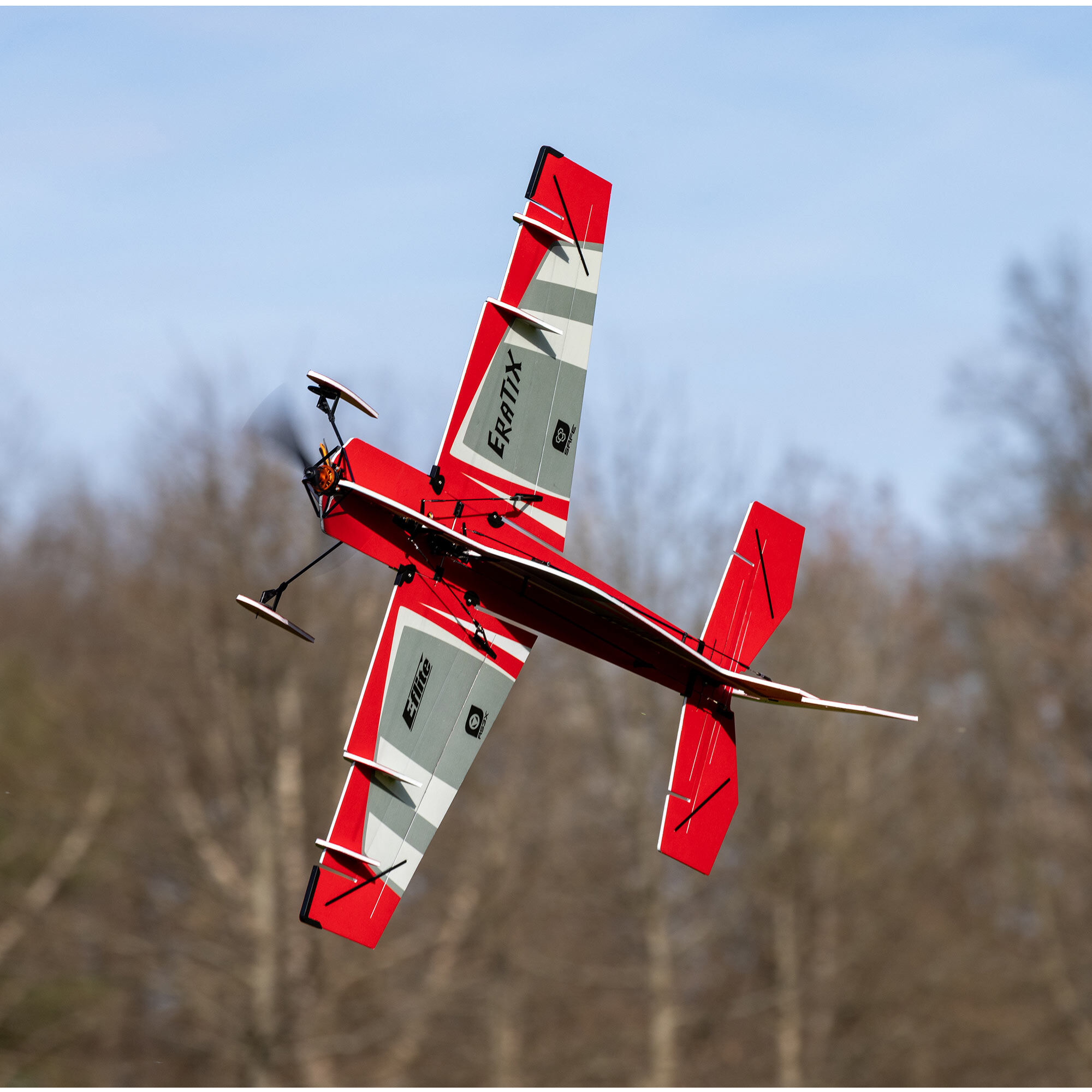

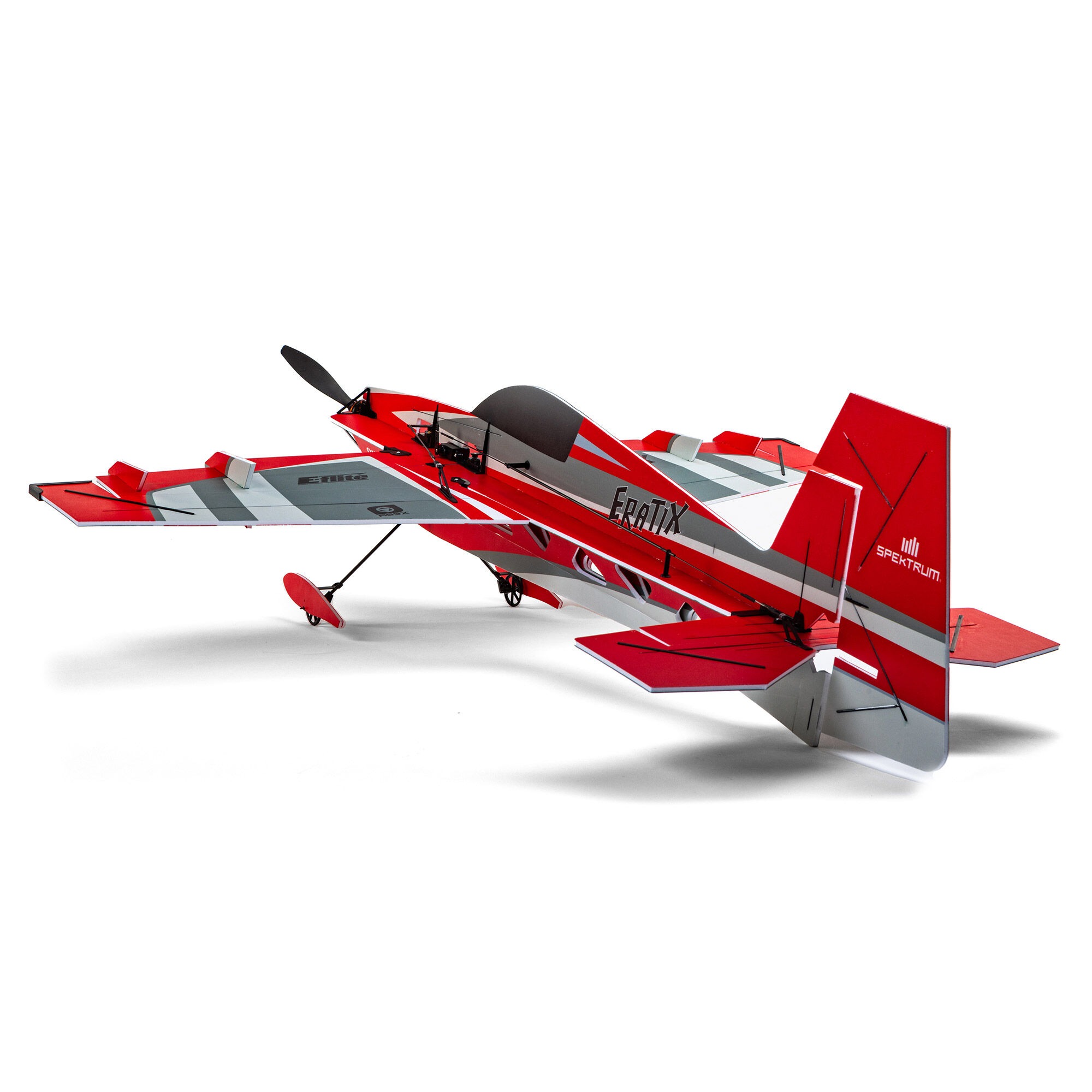

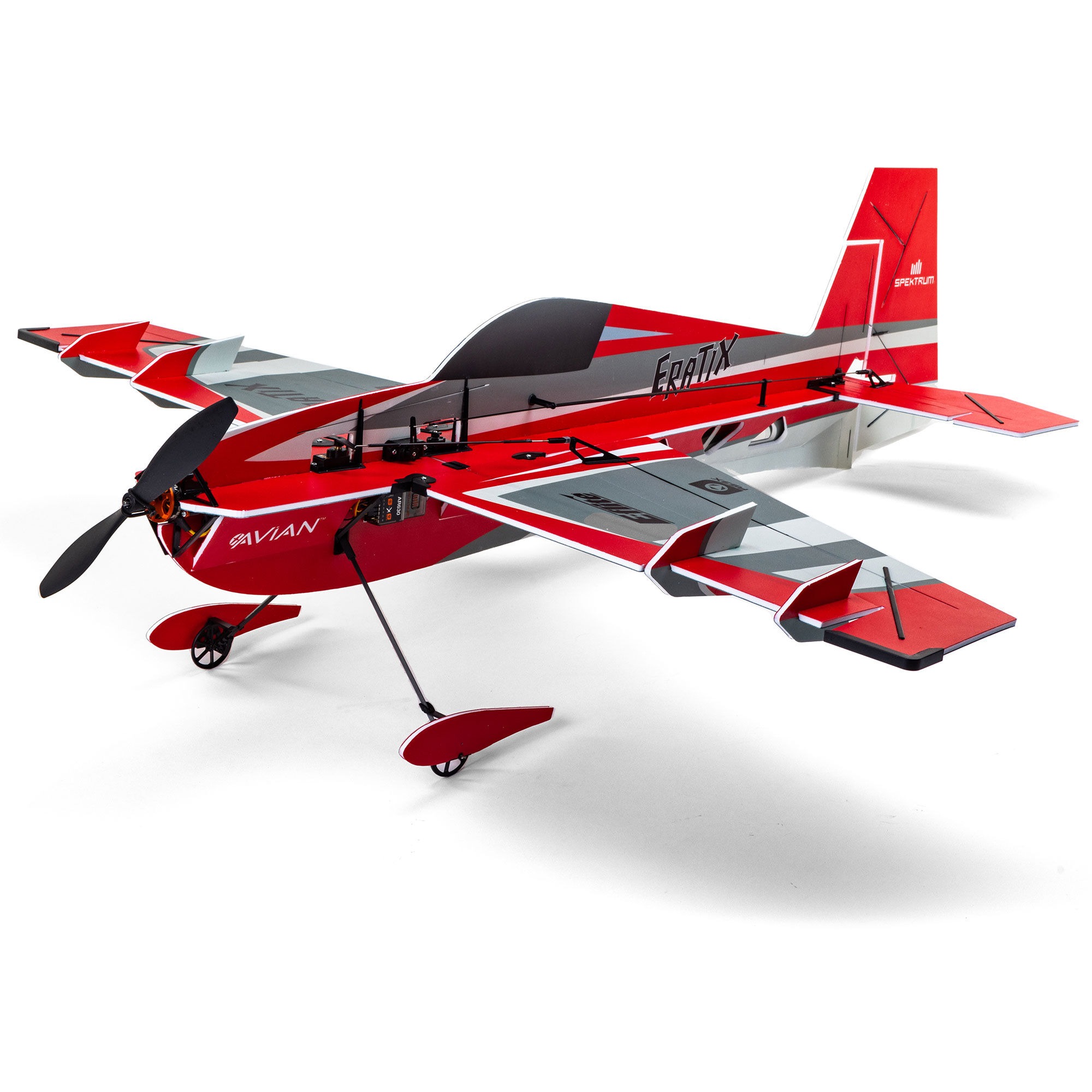

The E-flite Eratix 3D FF (Flat Foamy) 860mm offers the aggressive aerobatic plus smooth sport and slow-flying performance of similar class models – without all the hassles of buying components for and building one! It bolts/snaps together and can be ready to fly in less time than it takes to charge a battery compared to the glue, tape, and many hours it usually takes to assemble other “flat foamy” aircraft. Its lightweight yet extremely durable EPP airframe is mostly factory-assembled and includes a factory-installed power system and servos. The 3S compatible brushless motor is matched with an exclusive Spektrum Avian Smart ESC. The BNF Basic version is equipped with an AR630 receiver to deliver real-time telemetry data along with AS3X and SAFE Select technologies. It’s small enough and light enough to be flown indoors in gymnasiums and other similar spaces or outdoors in yards, parks, and sports fields, making it a versatile addition to the hangar for a wide variety of pilots!
Video Overview
Plug-N-Play® Completion Level
This Plug-N-Play (PNP) version comes out of the box with a factory-installed power system and servos that are ready to connect to the compatible receiver of your choice (sold separately), plus the transmitter and battery you provide (also sold separately). Install the receiver, finish any final assembly, and fly!
Smart Technology
The Eratix 3D FF is equipped with an exclusive Spektrum™ Avian™ Smart ESC that can provide a variety of real-time power system-related telemetry data, including motor RPM, battery voltage, and more – with Smart and non-Smart batteries – via compatible receivers (including the AR630) and Spektrum AirWare™ equipped transmitters (including the DX6e and 8e, DX6 G2/3 and 8 G2, the DX9, NX6, 8 and 10, iX12, iX14, iX20, and others) while you fly.
High Performance
The factory-installed brushless power system features a specially-tuned outrunner motor. This power system delivers plenty of thrust for unlimited vertical and 3D performance with 3S batteries! Use 600mAh batteries to keep the weight down, or up to 850mAh batteries for longer flight times.
Uniquely Capable

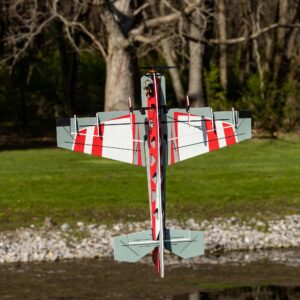

Like other flat foamy models, the Eratix 3D FF is capable of slow cruising, smooth sport flying, basic aerobatics, and even aggressive 3D flying — all in the same flight! It offers a truly “mild to wild” flight experience intermediate to experienced pilots will appreciate whether flying indoors in gymnasiums or outdoors in yards, parks, sports fields, and beyond.
Unlike other similar flat foamy models only available as kits without power and control components, the Eratix 3D FF arrives factory-assembled with the power system, servos, and the receiver (BNF Basic version only) installed. All you need to do is finish some quick and easy final bolt/snap-together assembly – without glue, tape, or special tools – and you’ll be ready to fly in less time than it takes to charge a battery!
Durable Design
Construction with carbon fiber and composite-reinforced, high-density EPP delivers a lightweight yet stiff and durable airframe. In the unfortunate event you damage any airframe parts or components and can’t repair them, a full line of replacement/spare parts is readily available.
- Approximate Assembly Time:
- Less than 1 Hour
- Battery:
- Sold Separately
- Charger:
- Sold Separately
- Completion Level:
- Plug-N-Play
- Connector Type:
- IC2
- Under 250g FAA Weight Limit:
- No
- Power Type:
- Electric
- Material:
- Foam
- Motor Design:
- Outrunner
- Motor Size:
- 2405- 1200KV 14-Pole
- Motor Type:
- Brushless
- Product Length:
- 35.69″ (907 mm)
- Product Weight:
- 13.3oz (376g)
- Propeller Size:
- 9×4.6SF Electric
- Radio:
- Sold Separately
- Receiver:
- Sold Separately
- Recommended Motor Battery:
- 850mAh 3S 11.1V LiPo Battery with IC2 Connector
- Search Keywords:
- eratix-3d-th|DDSC0824
- Servos:
- Included
- Speed Control:
- Included
- Technology:
- Smart
- Wingspan:
- 34″ (864 mm)
- LiPo Compatibility:
- 3S
- Skill Level:
- Level 4
- smartCompatible:
- N
- remoteidExpempt250g:
- N
- HHCMS Storefront IDs:
- 2,26,82
- Landing Gear:
- Small Wheels
