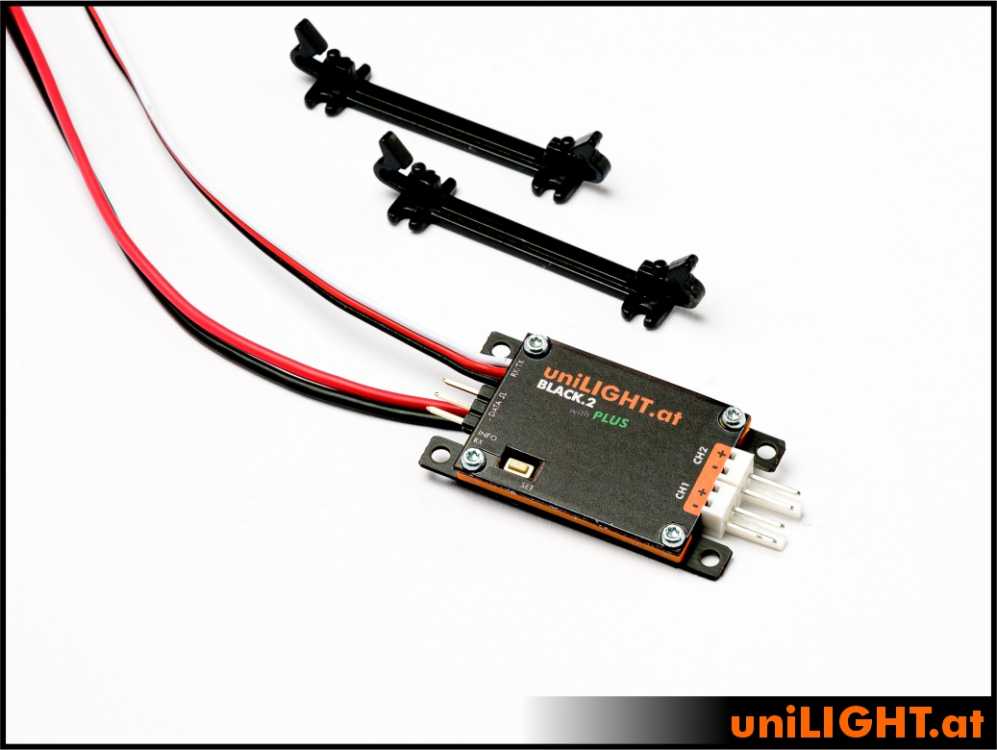

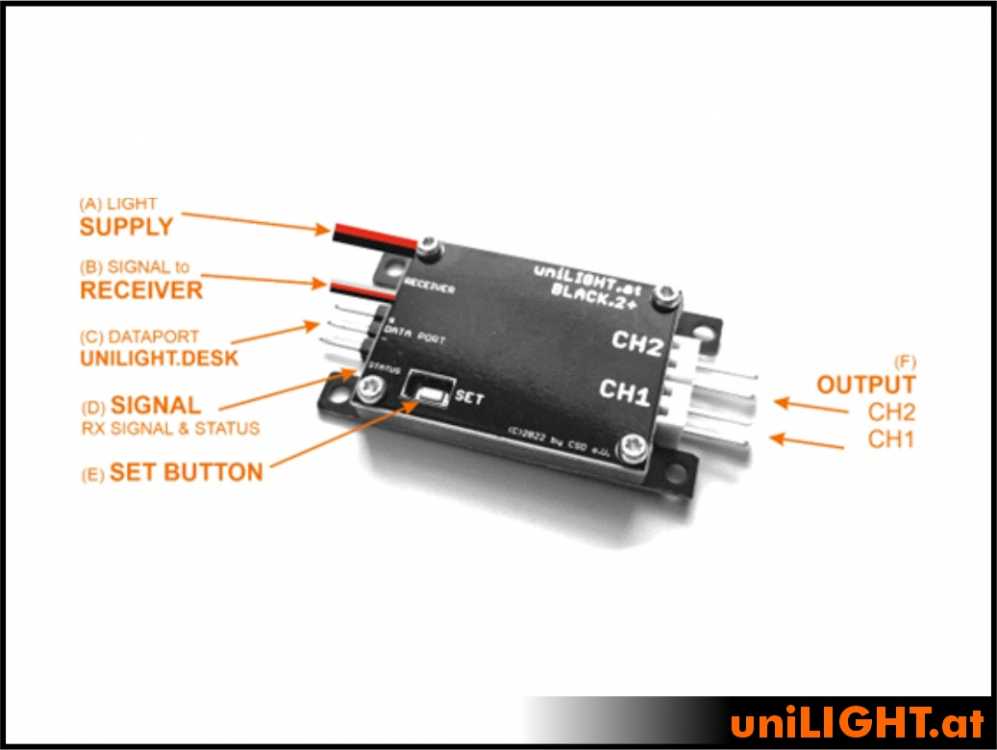

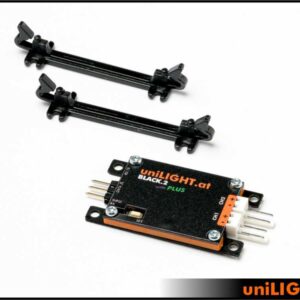

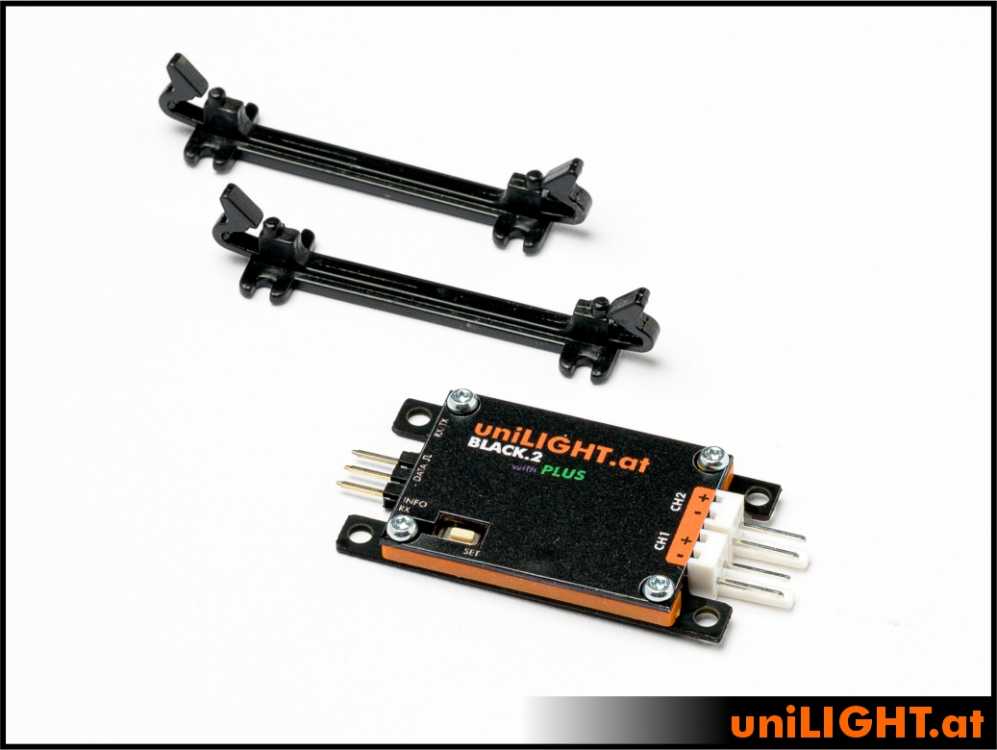

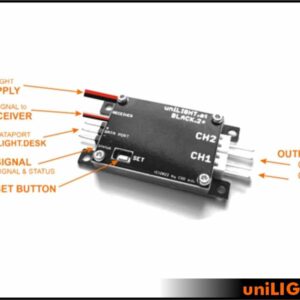

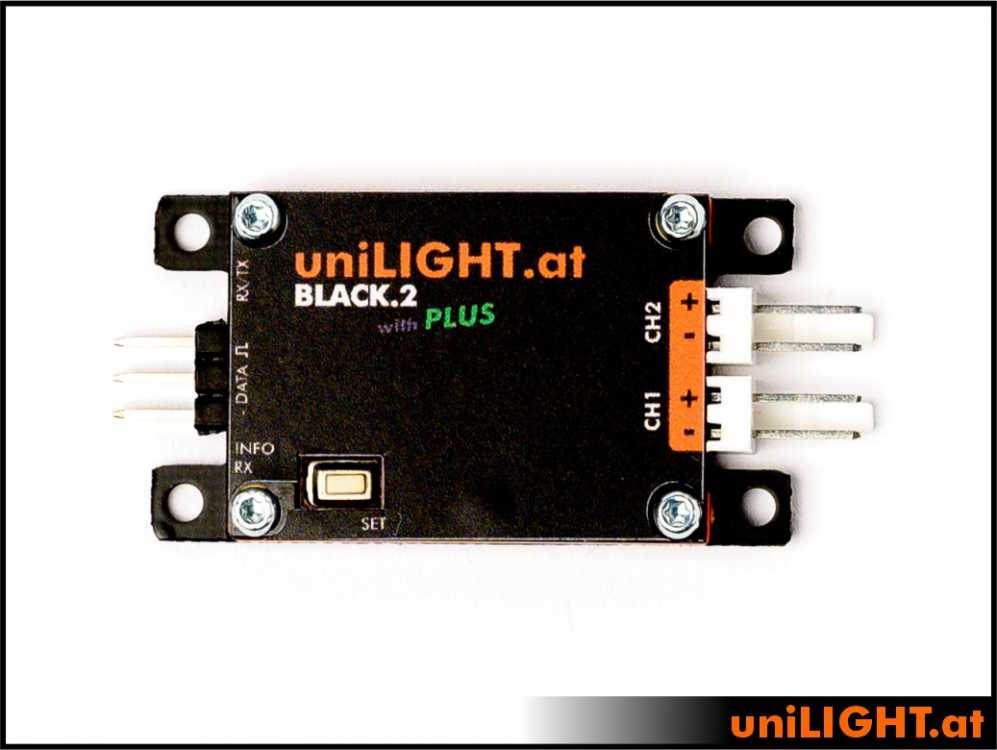

uniLIGHT BLACK.2+

Our 2-channel module Black.2+ is the small entry-level version of the uniLIGHT system, now with uniLIGHT PLUS . It is easy to use and provides fast results for all model areas. The main application is the use of an ACL or BEACON light and switchable headlights. In the classic operating mode, fixed light patterns are stored and can be called up as usual via the servo travel. However, freely programmable light patterns can also be set using the MODUL-PLUS programming cable and the uniLIGHT.DESK.

Innovations of the PLUS series
dynamics  more beautiful, faster and sharper defined light effects
Software  compatible with uniLIGHT.DESK
Configuration  freely definable lighting scheme and numerous settings
Security  Basic short-circuit protection of the outputs, switch-off and automatic reactivation
Master-slave principle   No switch required in the load circuit, is only activated by the remote control
Special functions  Soft switching transition and navigation + flash Special function for many sports tasks

Introductory campaign!
The Black.2 PLUS will also become a bit more expensive due to the general conditions in the electronics market. We are trying everything to cushion everything as much as possible through improved purchasing and are also adding some new features with the PLUS expansion. However, after the introductory phase, the controller will cost EUR 33.90, so don’t miss out on the offer…

Control side receiver: 3.6-9.6V
Light side load: 6-14V (depending on light)
Dimensions/weight: 45x24x5mm, 6g
Current per channel/pulse current: 5A to 16V, 8A max
total load until shutdown: approx. 10A
galvanically isolated circuits: YES
Operation without RC: YES

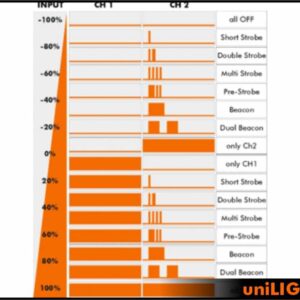

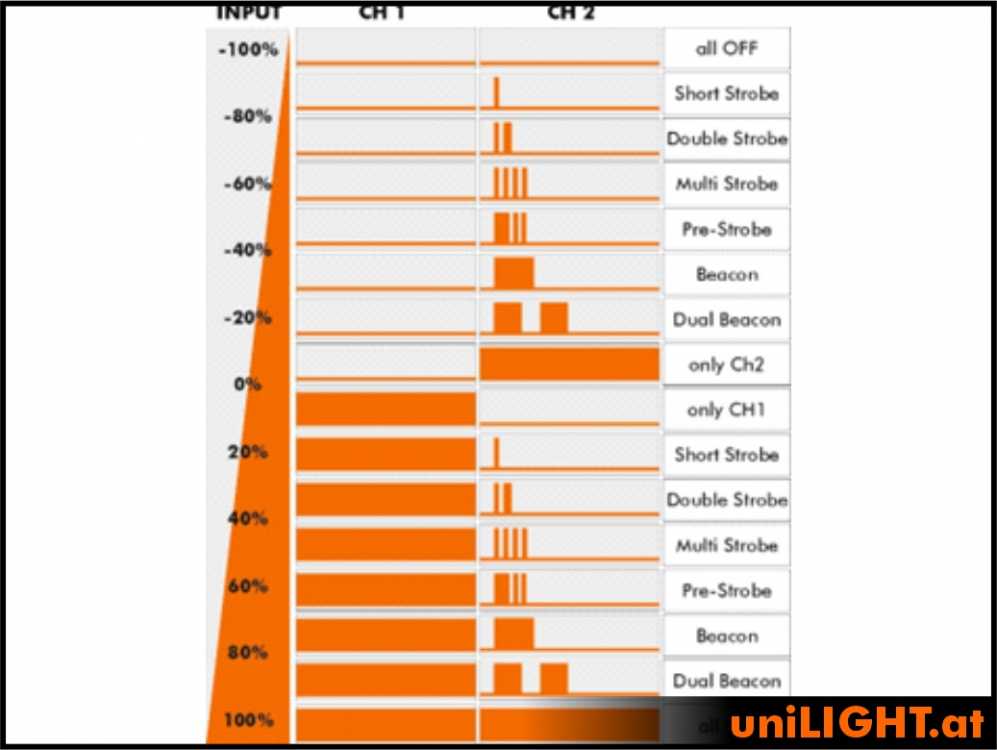

Variable Speed ​​Effects: Classic 14+2 / Custom 2+1
