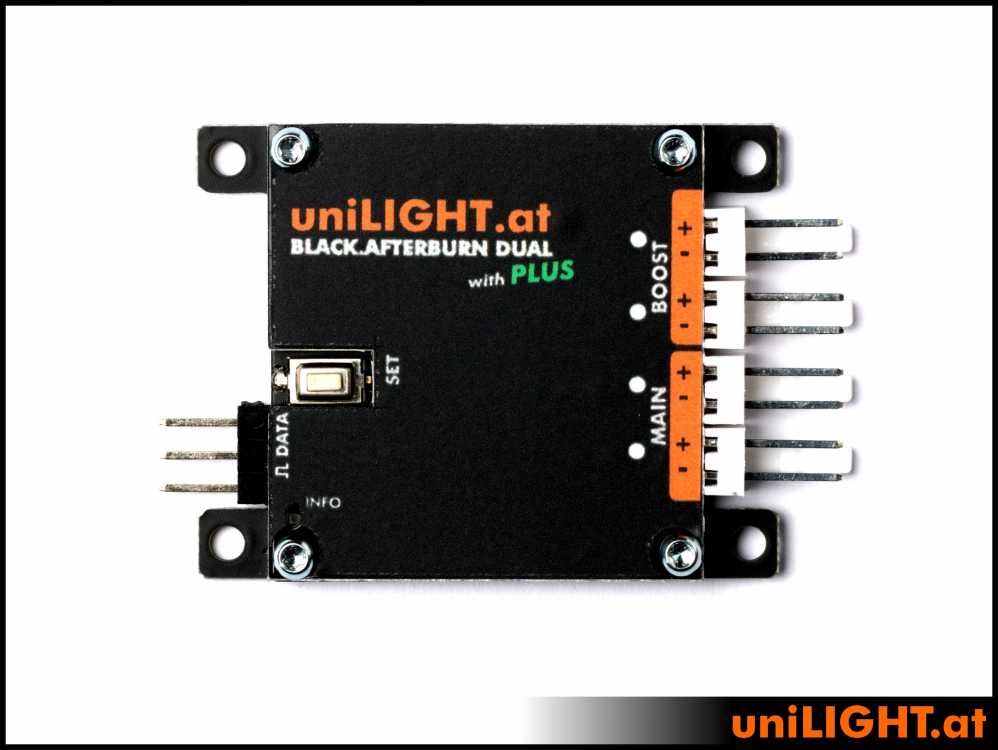

uniLIGHT AB.2PLUS afterburner

The afterburner control BLACK.AB2PLUS supports up to two extremely powerful afterburner rings, usable for 2-engine aircraft or as a double ring for maximum light output. In addition to the typical “flicker” effect, the control can now also have gentle glow functions. As with all uniLIGHT controls, it is controlled via the servo travel or parts of it. However, switching point operation is now also possible, in which connection parallel to the gas channel is possible. With the PLUS

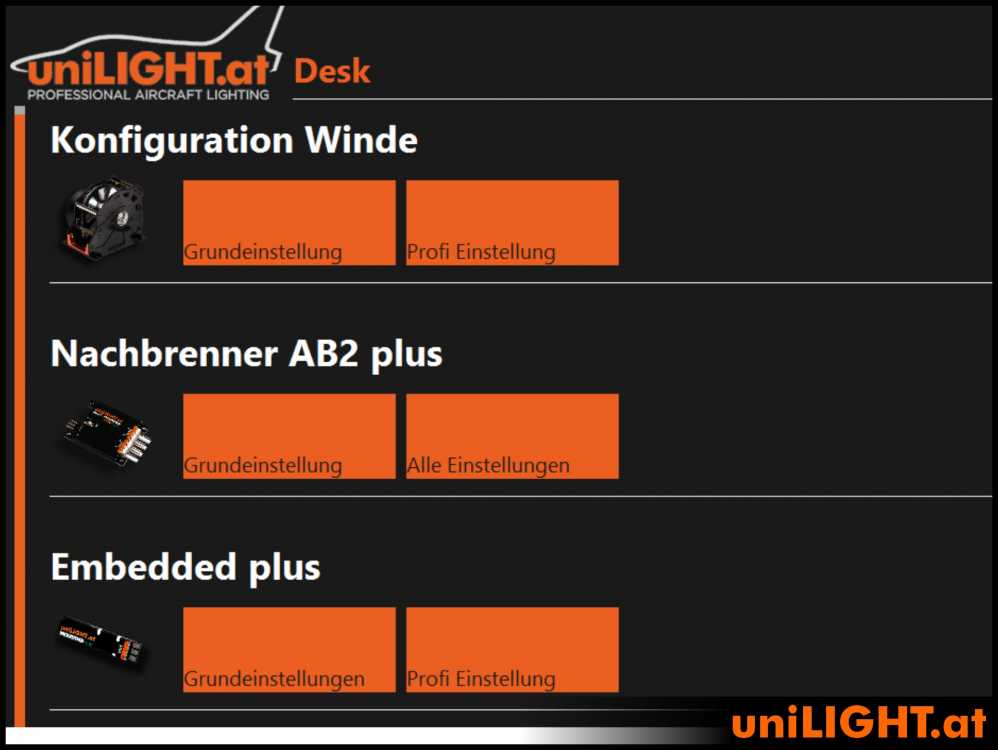

function you can now easily select all the settings and configurations yourself via our software (on our homepage in the DOWNLOAD section). All you need is our MODUL-PLUS (programming cable) and you’re good to go.

operating modes

• Random flicker effect or soft glow effect
• Directly dependent on the servo input or in parallel operation with a switching point

options

• Fast or delayed response to signal input
• Muted motion effect with soft flickering
• Preheat function below the main function
• Basic level underlaid with the flickering signal

• Receiver side: 3.6-9.6V
• Weight: 9g
• Dimension: 50x35x6mm
• Load per channel: 8A, up to 16V
• Total load: 12A
• Galvanically isolated system
• deep discharge protection
• servo output

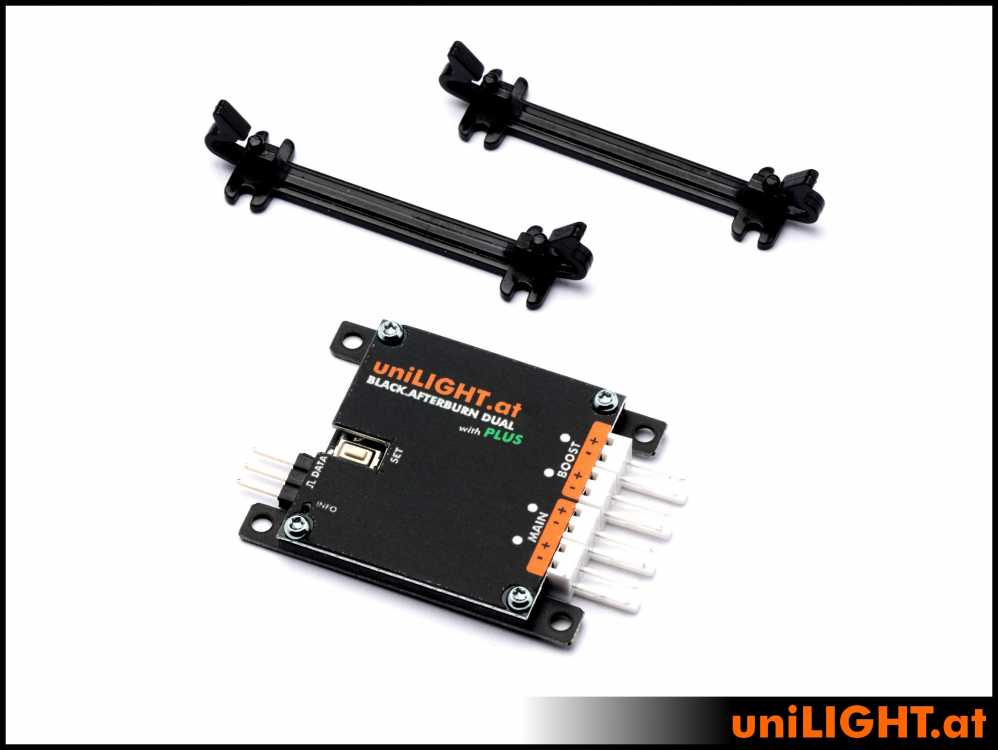

• Supplied with mounting brackets and description
