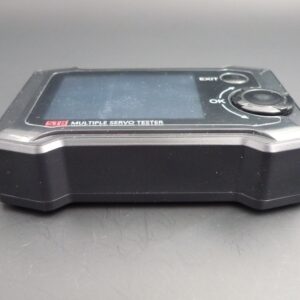

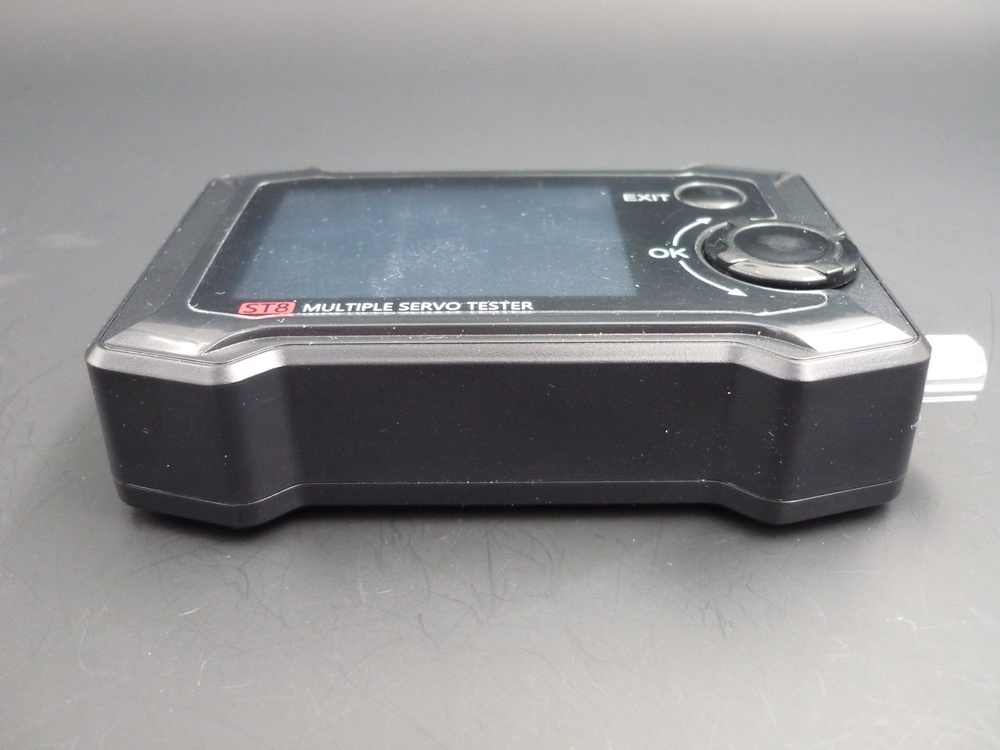

Toolkit ST8 2.4″ TFT 7-28V 8 chanel Servo Advanced Tester

The ST8 is a product for testing servos, with up to 28V voltage output, 8-channel signal output, current measurement, curve display and other functions.

Features:

• 4 channels of programmable independent signal, 8 channels of signal output, accuracy of 1ms.

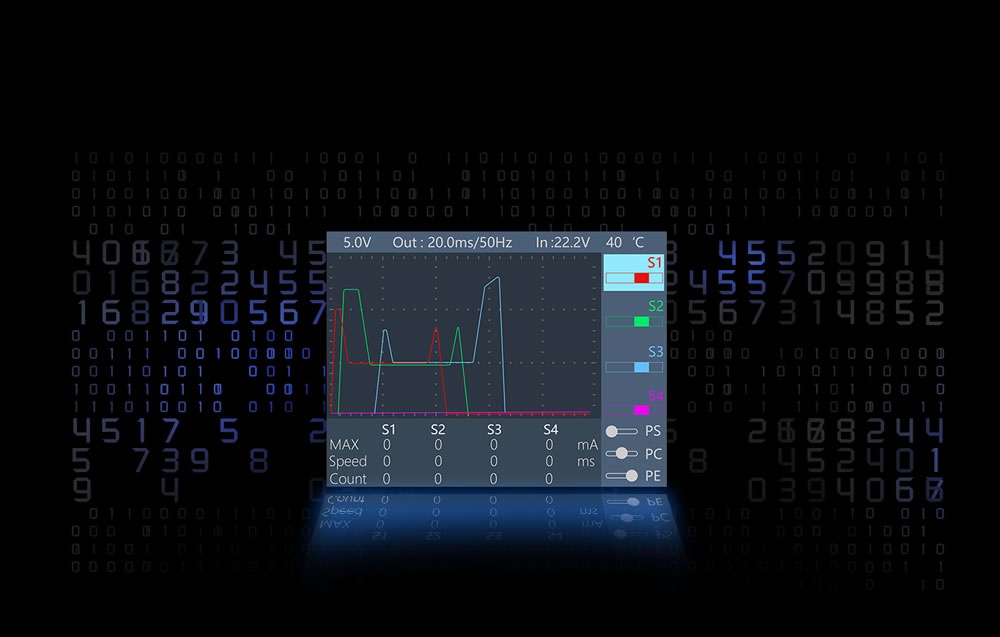

• 4 independent current acquisition, respectively, curve display.
• Multiple measurement modes (speed, count, step, linear).
• output PWM signals with a period of 33 to 1000Hz.
• A variety of signal trigger sources (internal, buttons, knobs, external sources).
• Measure the response speed of the steering gear with an accuracy of 1 millisecond.
• The external input signal supports PWM/PPM/SBUS
• with an accuracy of 1ms.
• The external input signal supports PWM/PPM/SBUS with an accuracy of 1ms.

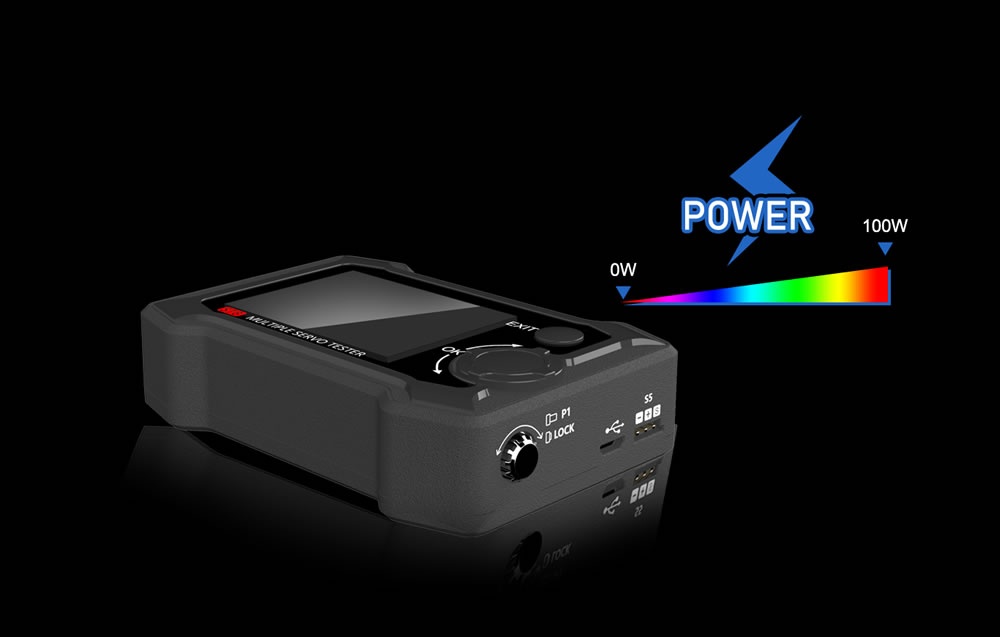

• Drive the servo with a maximum load of 100W.
• The device is simulated as aUSB flashdrive, and the upgrade file is copied to implement product firmware upgrade.

Specifications:

• Input voltage: 7.0-28.0V @MAX 10A

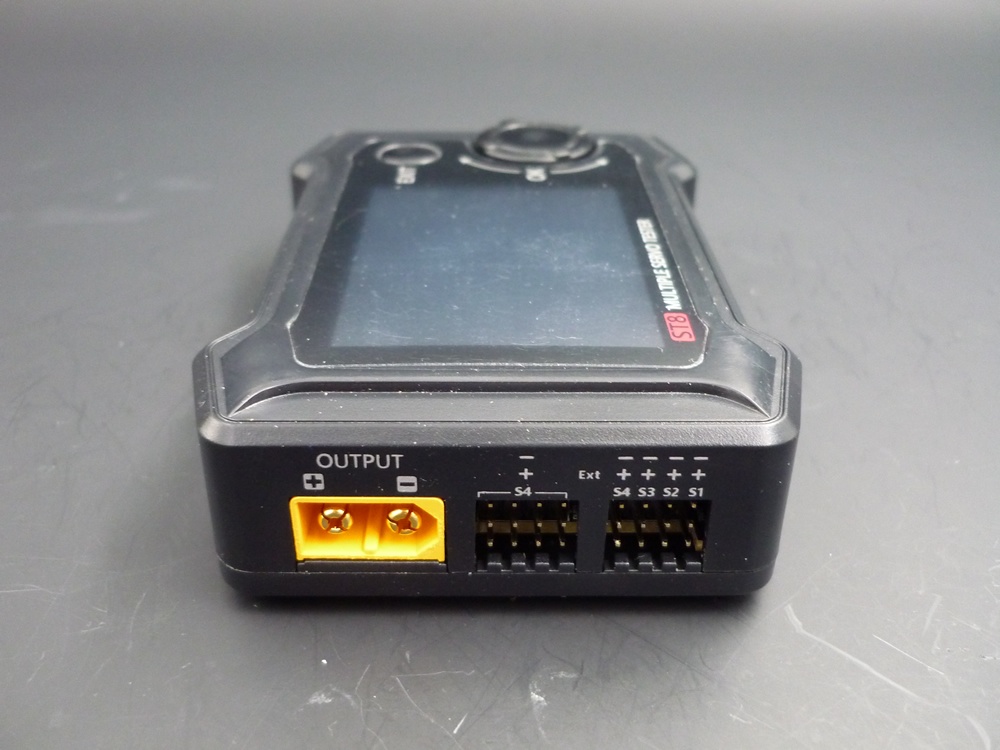

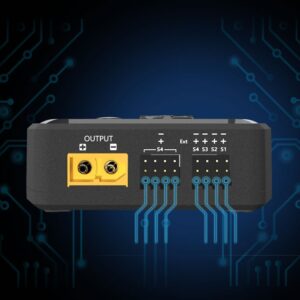

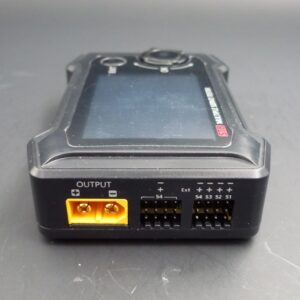

• Main output port: 5.0V-28.0V@MAX 10A
• Signal port: 5.0V-8.4V@MAX 4A/S1-S4
• Output voltage: 5.0V-8.4V@MAX 4A/S4 Ext.
• Output signal: 100us-2900us@33-1000Hz @S1-S4

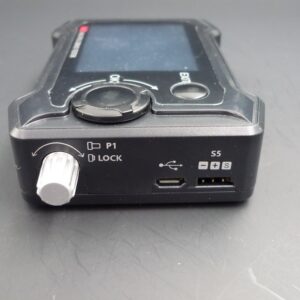

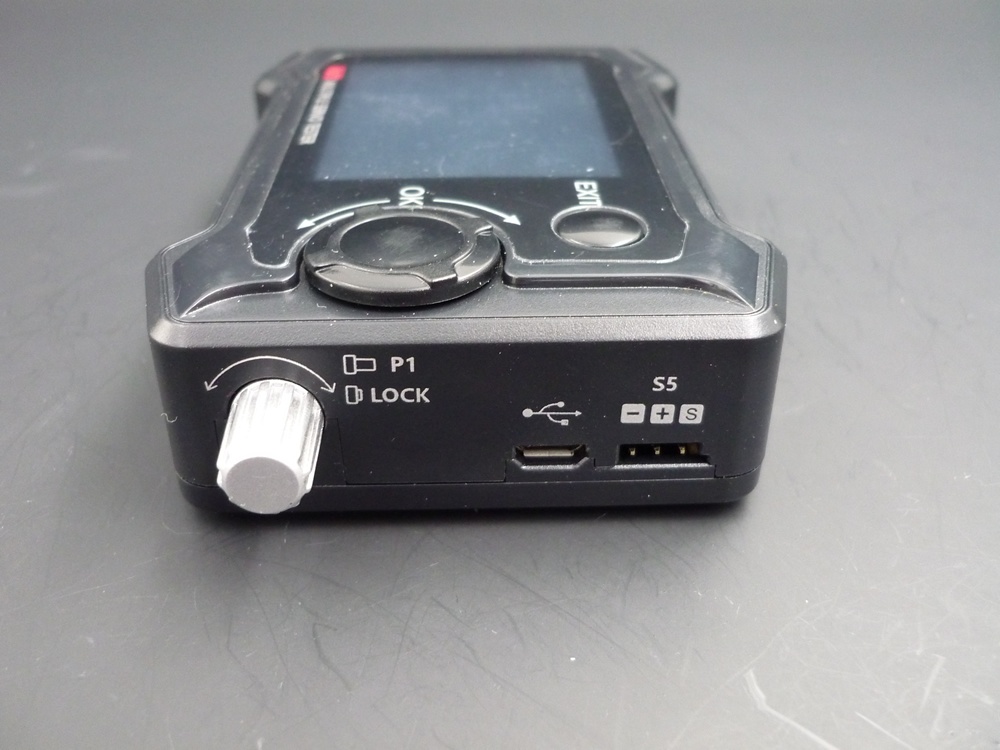

• S5 Input signal: PWM 500us-2500us@S5 / PPM 8CH@S5 SBUS 16CH@S5
• P1 rotation range: 1000us-2000us@P1

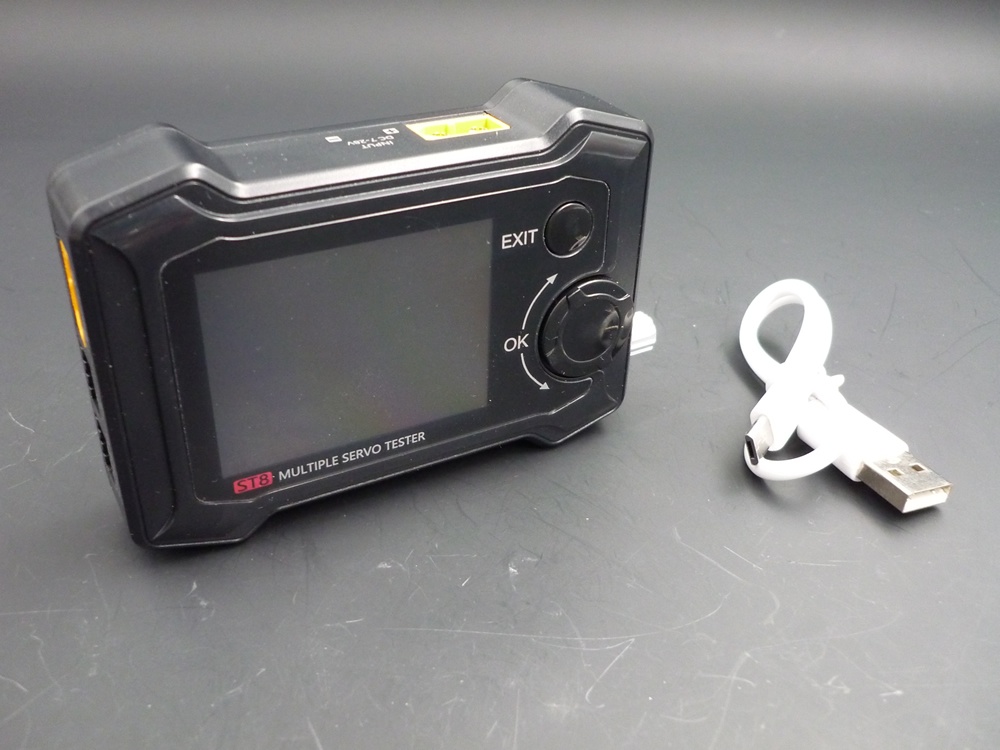

• MicroUSB: Upgrade@USB3.0

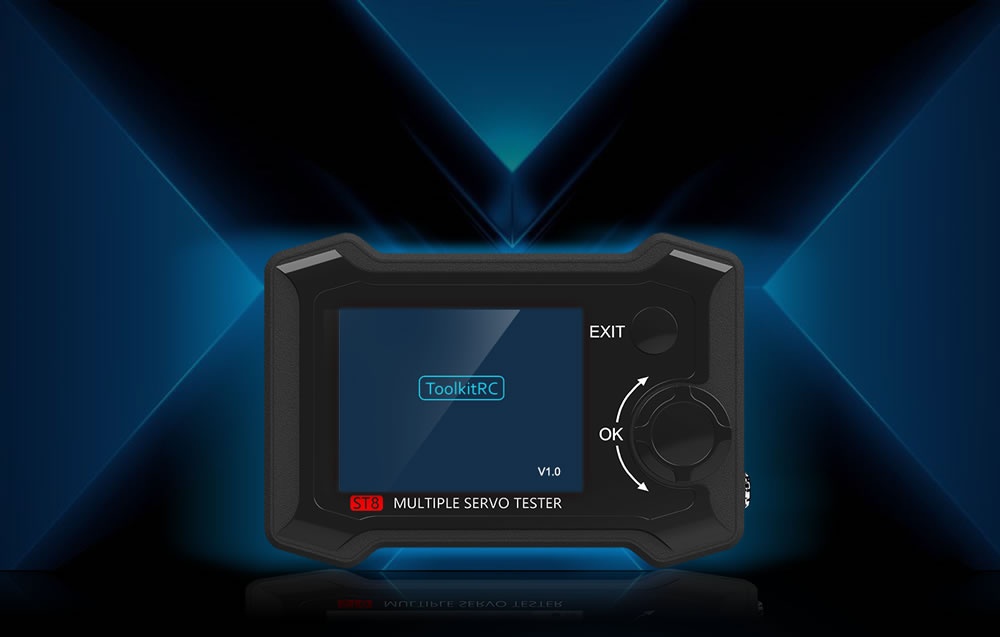

• LCD display: 2.4 inch TFT RGB 320*240 resolution
• Dimensions: 99mm*68mm*26mm
• Weight: 120g
