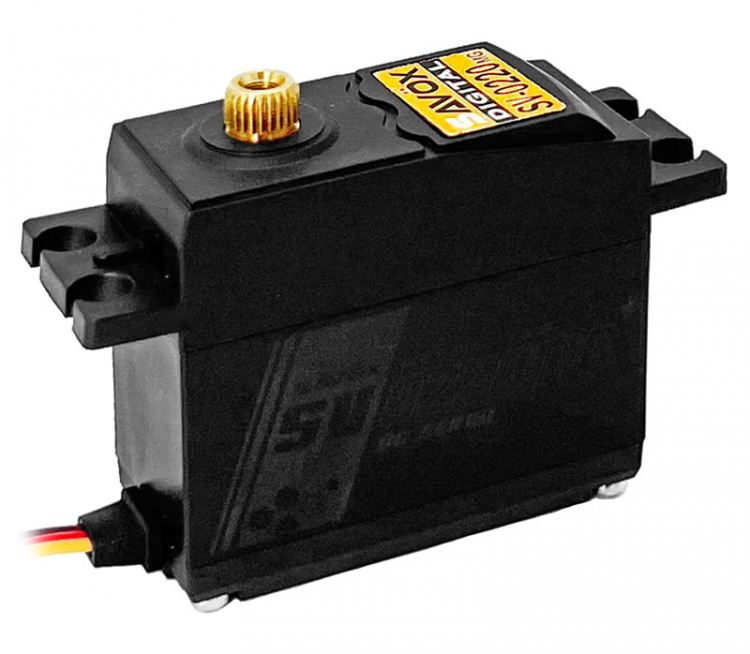

SV-0220MG Plus Servo 8Kg 0,13s HV Metal Gear

Savox SV0220MGPLUS – High Voltage Standard Digital Servo 0.13s 8kg/cm @ 7.4V

The Savox SV-0220MG PLUS is a budget-friendly, metal-geared, digital standard servo capable of operating on high voltage.

Features:

• Soft Start
• Sanwa SSR compatible
• High Voltage
• Metal gear train ensures durability and longevity

Specifications:

• Torque @ 6V: 6.5kg/cm
• Torque @ 7.4V: 8kg/cm
• Speed @ 6V: 0.16s/60deg
• Speed @ 7.4V: 0.13s/60deg

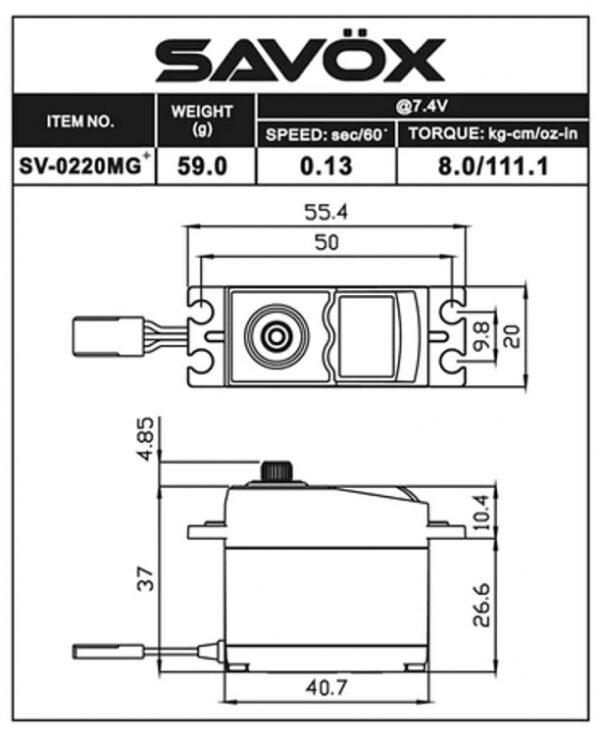

• Dimensions: L40.7 x W20 x H37mm
• Weight: 59g
• Operating Temperature: 14° – 122°F (-10° – 50°C)
• Running Current (no load): 100mA @6.0V, 120mA @7.4V
• Stall Current (at locked): 1500mA @6.0 V, 1800mA @7.4V
• Idle Current: 5mA @6.0V, 5mA @7.4V
• Wire Length: 250 ± 5mm
• Output Gear Spline: 25 Tooth
• Bearings: 1BB
• Operating Travel: 120° (1000 → 2000 µ second)
• Neutral Position: 1500 µ second
• Pulse Width Range: 800 → 2200 µ second
• Maximum Travel: Appx 164° (800 → 2200 µ second)
• Refresh Rate: 240 Hz
• Motor Type: Brushed
