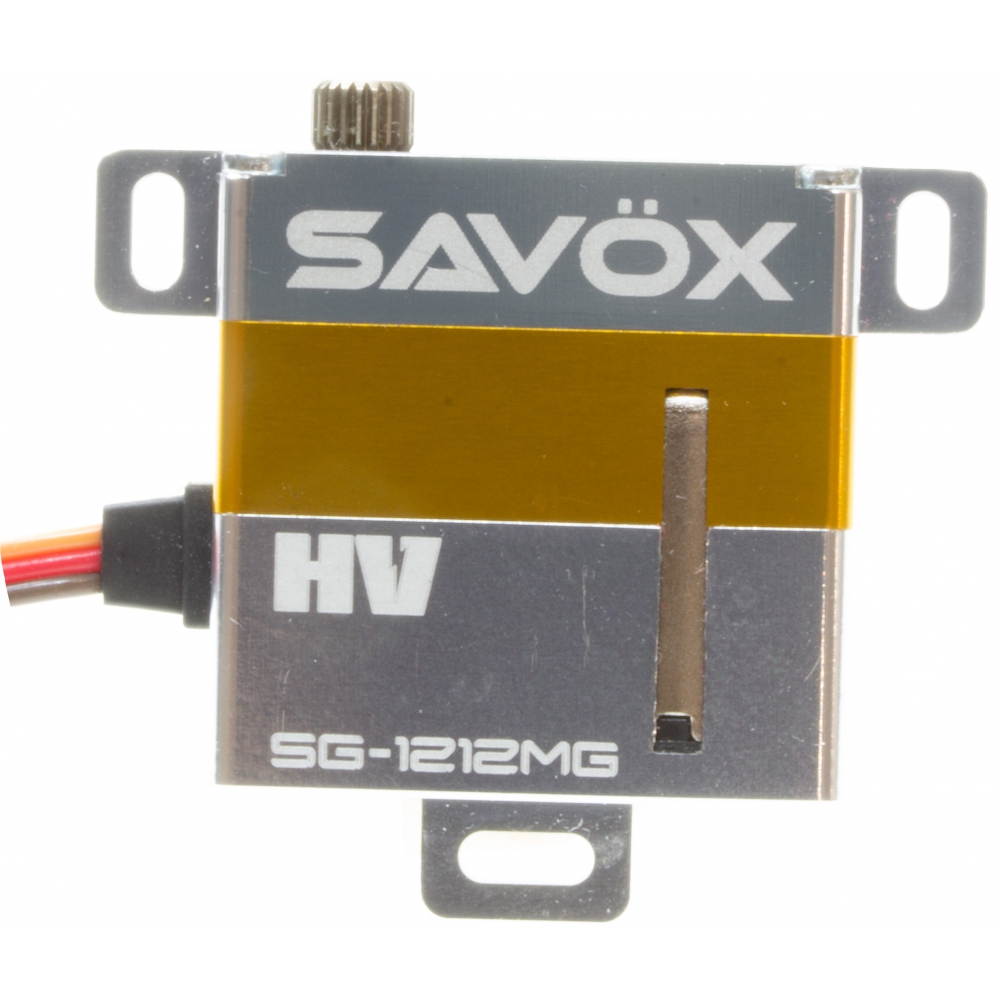

SAVÖX SG-1212MG SERVO

• 10mm wing servo
• HV capable, developed for 8.4V!
• 8kg @ 7.4V & 10kg @ 8.4V
• Suitable for most frames with 30x30x10 mm
• Backlash-free robust metal gear

DESCRIPTION

With a total depth of only 10mm, the new SAVÖX SG-1212MG is ideal for installation in narrow wings of gliders, jets or speed models. The newly developed 10 mm coreless motor is extremely powerful and ensures high stability.

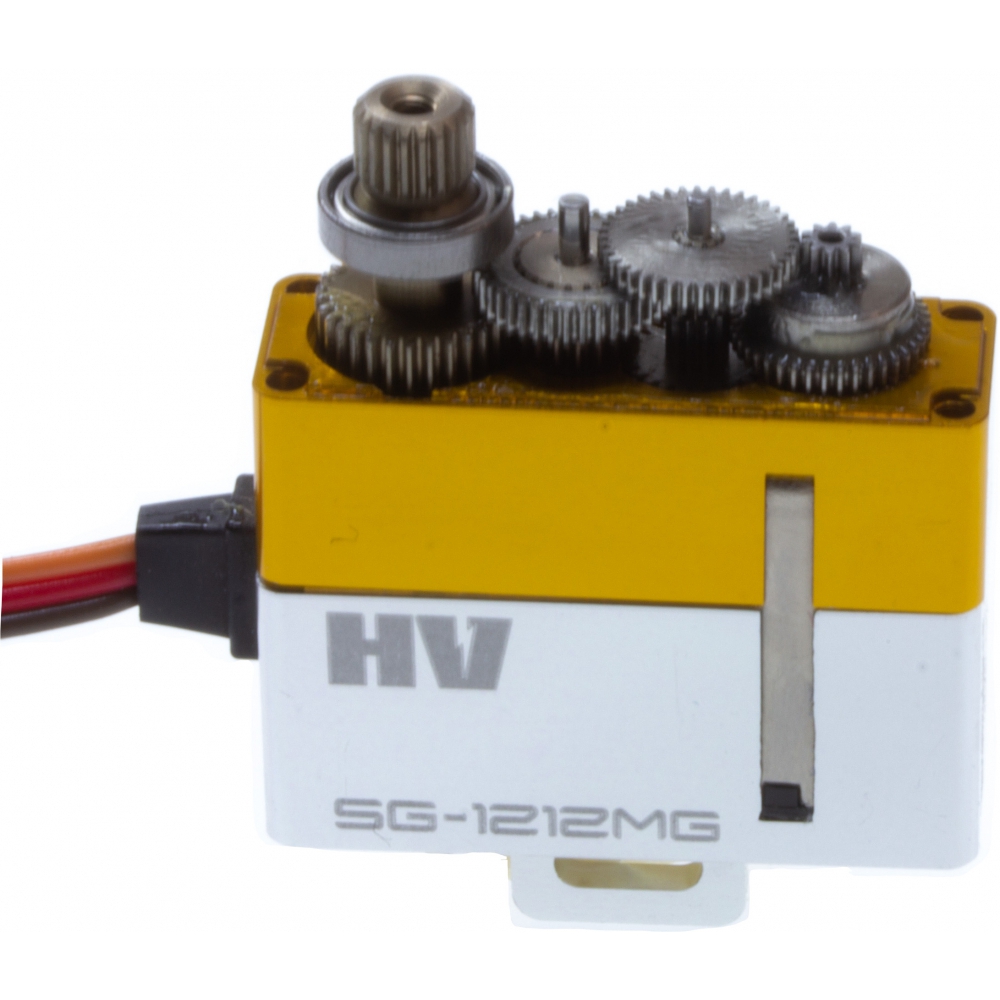

The high-quality 10mm full aluminum housing with 3 attachment points can be mounted precisely and ensures good heat dissipation. In order to ensure the highest possible control precision of your model, a backlash-free, double ball-bearing gear was installed.

Despite its actuating force of 8.0 kg at 7.4V, this little powerhouse is not a heavyweight at 27 grams.

The SG-1212 was designed and developed directly for the use of a 2 LiPo’s with 8.4V, the actuating force is then 10kg. The dimensions of 30x30x10mm fit in almost all common models for which 10mm wing servos are provided.

A stable mounting frame is included with each servo to simplify assembly. A servo lever specially adapted to the needs of the fixed-wing model completes the package.

Matching optional servo frames with counter bearings are already available in the shop.

CHARACTERISTICS
