DESCRIPTION

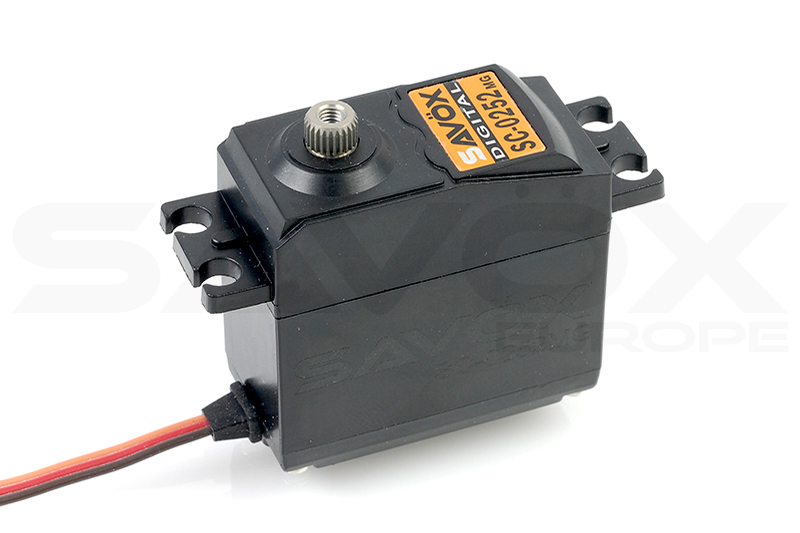

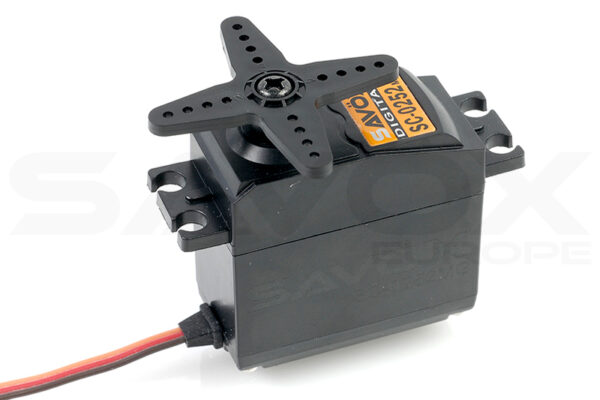

The SC-0252MG+ is a strong and very reliable standard size servo which is very well suited for use in RC cars and airplanes.
The new + version of the well-known SC-0252MG servo is optically and technically minimally different from its predecessor. A soft start which slowly moves the servo to the start position when switched on and the Sanwa SSR mode characterize the + version.
The SC version of the 0252MG+ is specially designed for use in RC cars. The C in SC stands for Car, i.e. car. Gear and software are optimized for this application, the low-backlash metal gear is extremely robust and reliable.
CHARACTERISTICS
| Actuating time S1/60° (sec): | 0.19 |
| Force S1 (kg*cm): | 10.5 |
| Width (mm): | 20 |
| Height (mm): | 39.4 |
| Voltage range: | 4.8V-6V |
| Length (mm): | 40.7 |
| Weight (g): | 49 |
| control frequency: | Up to 333Hz, 1520us center pulse |
| High voltage capability up to 8.4V: | No |
| Motor type: | brush motor |
| Application recommendation: | Helicopter, plane, car, boat |
| Housing type: | plastic |
| Ball bearings (number): | 2 |
| Voltage 1 (Volts): | 6.0 |
| Gear type: | metal |
| Output teeth (number): | 25 |
| Classification: | default |
