Description
The SC-0251MG+ is a very reliable and powerful servo of standard size which is very well suited for use in RC cars and airplanes.
The new + version of the well-known SC-0251MG servo differs slightly from its predecessor in terms of appearance and technology. A soft start, which slowly moves the servo into the start position when switched on, and the Sanwa SSR mode characterize the + version.
Characteristics
| Positioning time S2/60° (sec): | 0.15 |
| Positioning time S1/60° (sec): | 0.20 |
| Actuating force S1 (kg*cm): | 13 |

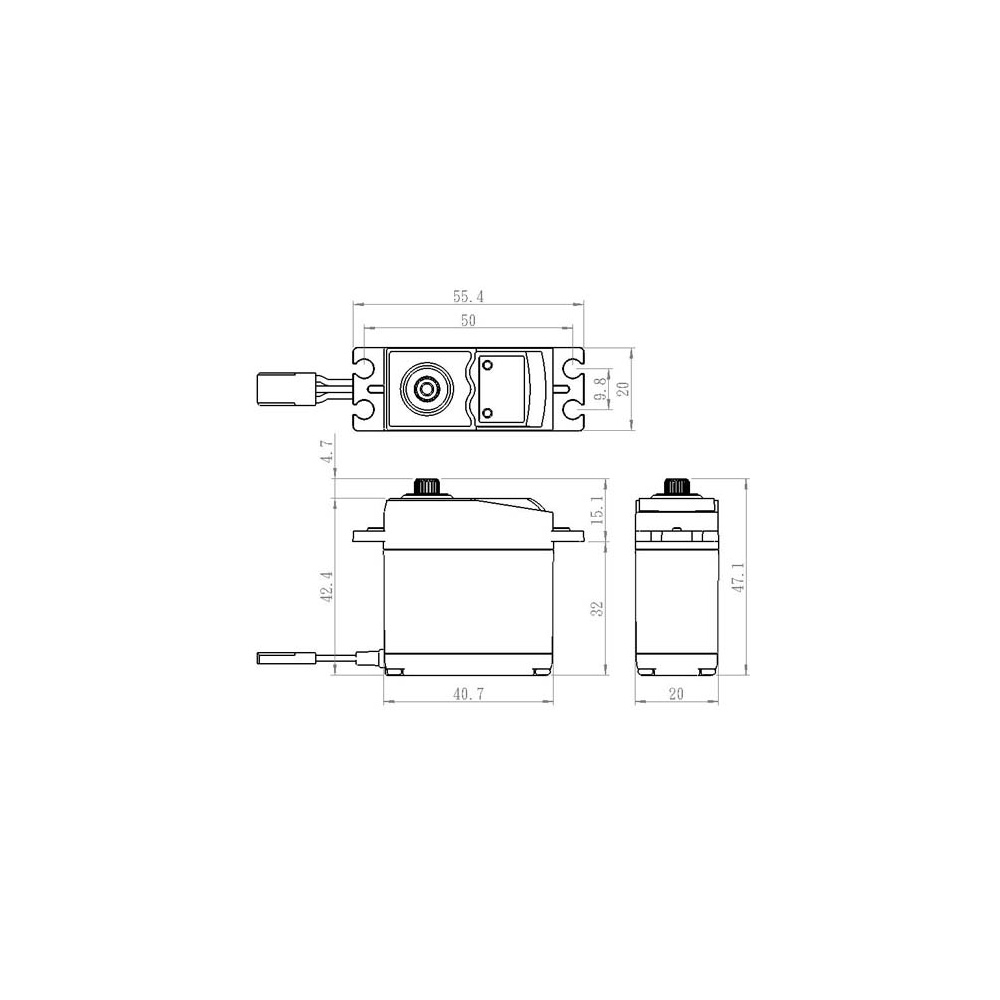

| Width (mm): | 20 |
| Actuating force S2 (kg*cm): | 25 |
| Voltage range: | 4.8V-7.4V |
| Length (mm): | 40.7 |
| Height (mm): | 42.4 |
| Weight (g): | 61 |
| Control frequency: | Up to 333Hz, 1520us center pulse |
| High voltage capable up to 8.4V: | No |
| Voltage 1 (Volt): | 4.8 |
| Engine type: | brush motor |
| Recommended use: | helicopter, airplane, car |
| Housing type: | plastic |
| Ball bearings (number): | 2 |
| Gearbox type: | metal |
| Output teeth (number): | 25 |
| Voltage 2 (Volt): | 7.4 |
| Classification: | standard |
warning and safety instructions
WARNING: Not suitable for children under 14 years. Use under direct adult supervision.
