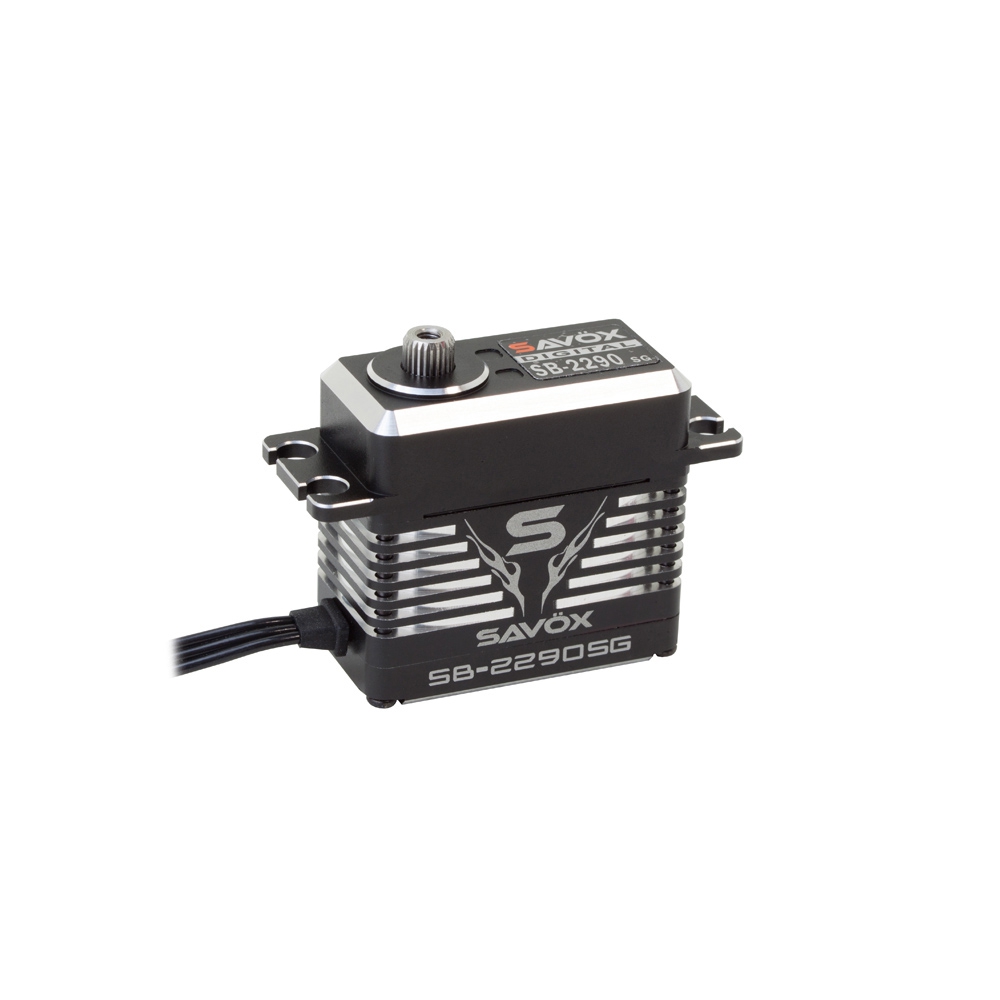

SAVÖX SB-2290SG SERVO

DESCRIPTION

WHAT DOES HV MEAN AT SAVÖX.

HV stands for High Voltage. Savöx servos marked in this way can be operated with up to 8.4V voltage. The use of a 2s LiPo battery is possible without any problems. All HV servos can of course also be operated with a lower voltage from 4.8V, but here less power is available.

With the new SB-2290SG servo from SAVOX, the Taiwanese manufacturer Savöx has achieved a revolution in servo technology. The patented design of this monster provides up to 35% more power with proven standard installation dimensions.

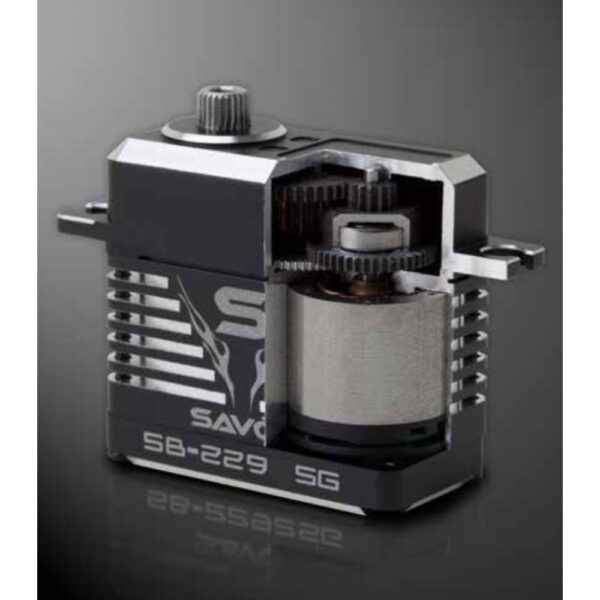

This was achieved by integrating the brushless motor directly into the full aluminum housing. In addition to a thermal advantage, this opens up the possibility of installing a larger motor. In order to be able to optimally transfer the enormous actuating forces, a third ball bearing was also integrated into the gear. A fully rubberized servo cable is also standard in this servo series. It protects the servo cable from damage, but is still flexible enough to be neatly routed. The SB-2290SG is suitable for use in helicopters, RC cars and in fixed-wing models. More servo types will be added to the patented SB-229X series in the near future.

The torque of this monster leaves nothing to be desired, here are the technical specifications for 6, 7.4 and 8.4V

6V = 45kg*cm with a positioning time of 0.16s/60°
7.4V = 55kg*cm with a positioning time of 0.13s/60°
8.4V = 70kg*cm with a positioning time of 0.11s/60°

Successful This is due to the integration of the brushless motor directly into the full aluminum housing. In addition to a thermal advantage, this opens up the possibility of installing a larger motor. In order to be able to optimally transfer the enormous actuating forces, a third ball bearing was also integrated into the gear. A fully rubberized servo cable is also standard in this servo series. It protects the servo cable from damage, but is still flexible enough to be neatly routed. The SB-2290SG is suitable for use in helicopters, RC cars and in fixed-wing models.

Control frequency up to 333Hz, center pulse 1520us

Like all Savöx HV servos, the SB-2290SG can of course be operated with up to 8.4V!

Scope of delivery: Servo incl. servo arm and fastening screws

Possible application examples: For large aircraft, RC cars, scale helicopters / large models
