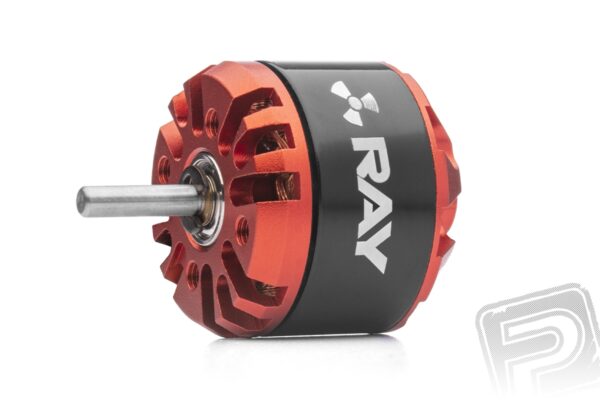

RAY G3 Brushless motor C2826-1000

RAY G3 motors are powerful brushless (“brushless”) fourteen-pole rotary casing motors (“outrunner”) with excellent electrical properties, sophisticated design and excellent manufacturing. They are a very good choice for driving your recreational and sports models with excellent performance, good efficiency and good price. These are high-torque, low-torque, large-diameter propellers and gearless climbs.

RAY G3 The C2826-1000 is a miniature brushless motor designed to drive small models with a weight of up to 450 g with power from a two-cell or three-cell Li-poly battery. With its help you can successfully “electrify” eg large rubber boots from the Guillow’s or Dumas kits with a span of about 800-1200 mm, it is also excellent for RC park-flyers Dumas.

Engine Mounting: The C2826-1000 is designed for both front and rear mounting. For front mounting at the front of the engine, use at least two (opposite) or four M3 bolts that engage in the motor face within 3 – 4 mm. The pairs of mounting bolts for the bolts in the front of the engine are regularly spaced 180 ° on circles of 16 and 19 mm diameter. The engine bulkhead should be made of 2 mm plywood. The rear mounting kit (mounting cross, propeller carrier for rear flange) is supplied with the engine.

Engine kit includes: C2826-1000 engine with cables with soldered 3.5 mm gold plated connectors, rear mounting kit, instructions.
