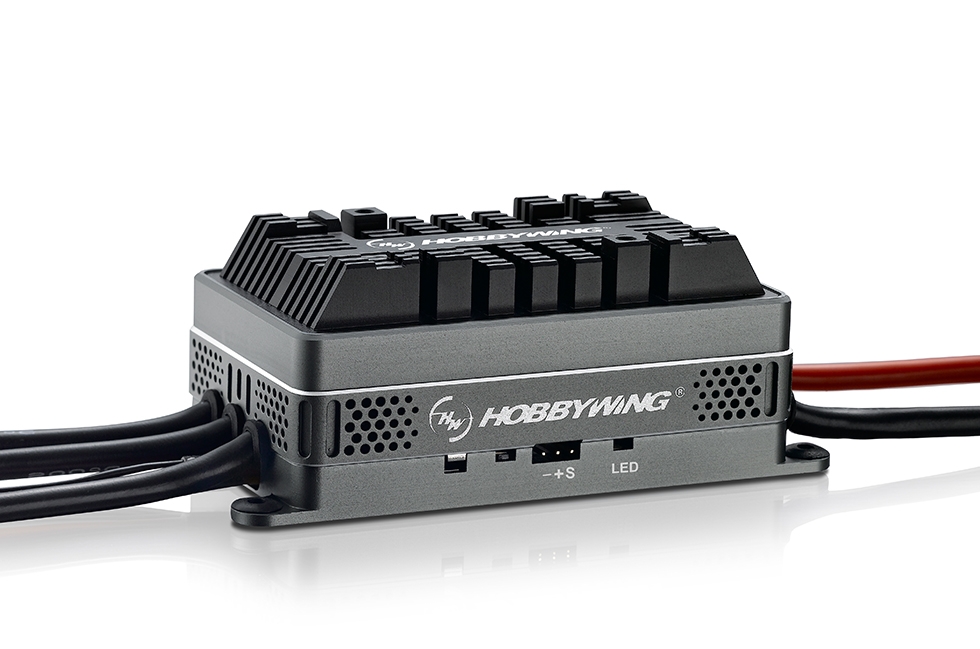

Platinum Pro 200A-HV V4.1

HOBBYWING Platinum Pro 200A V4.1 controller 5-14s with SBEC 10A ideal for helis of the 700-800 class

With this extremely reliable and more than powerful controller you will catapult your heli into new spheres. Precise flight maneuvers and sensitive throttle response are now a matter of course. With the soft start up function there is no more tail drift and you have an optimal starting situation right from the start.

Innovative structure for heat dissipation
The innovative “DUO” stacking system of the components allows both sides of the circuit board to quickly dissipate the heat generated to the aluminum housing.

Excellent engine speed control
A high-performance 32-bit processor coupled with an advanced algorithm provide excellent engine speed control under a wide range of conditions. The sensitivity of the control behavior of the throttle curve is adjustable, which means that every pilot can adapt it to his needs.

Unique design
The elegant housing is made of aluminium. Each cooling fin and slot has been carefully designed and placed, the case has been oxidized, anodized and the corners highlighted.

Super BEC
The integrated switching BEC can provide a stable voltage in 0.1V steps from 5V to 8V. So there is enough power available to get fast and precise control.

Super smooth start
The Paltinum HV-200A ESC enables a super smooth start and prevents “tail drift”. This results in an ideal starting point for every start.

High Current Capacity

Technical Data

• Connection cable: 8AWG
• constant / momentary current: 200A / 300A
• Motor Type: Sensorless Brushless Motor
• Application: 700-800 class helis
• LiPo/NiMH cells: 6-14S LiPo
• Anti-Lightning System
• BEC output: 5V – 8V (switchable in 0.1V steps)
• BEC current (constant / short-term): 10A / 30A incl. buffer
• Throttle signal / rpm signal transmission: via optical connection
• Dimensions (LxWxH): 105 x 50 x 36mm
• Weight: 325g (with cable)
• Programming output: FAN/PRG port
• ESC Programming by: LCD Program Box
