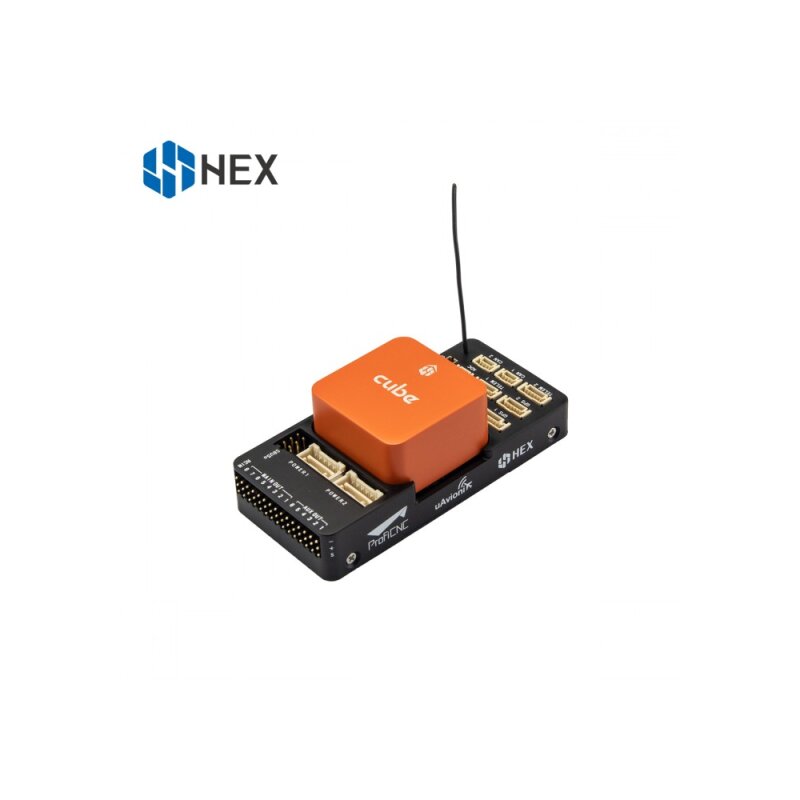

Pixhawk Orange Cube Standard Set

The Pixhawk The Cube Orange Standard Set with ADS-B receiver from Proficnc / Hex Aero is one of the most popular UAV controllers on the market. The modular design paired with the integrated and encapsulated sensor technology results in a powerful controller board for the demanding user. The module has three redundant IMU systems:

• 3 x Accelerometer
• 3 x Gyroscope
• 3 x Magnetometer
• 3 x barometer

as well as various interfaces and freely configurable ports:

• Dedicated Spektrum RX Port
• ADC Ports
• I2C interface
• S.Bus input and output
• 8 dedicated PWM outputs
• 2 CAN, Telemetry and Power Ports
• 8 GPIO outputs for e.g. PWM

What are the advantages of the ADS-B carrier board?

In the field of aviation, the Automatic Dependent Surveillance (ADS) system has become established. This sends data on position, speed and time stamp to the mission planner on 1090MHz. This means that even larger numbers of UAVs can be coordinated.

Specifications

What are the differences between the Pixhawk PX2.1 and the PX4?

In addition to the slightly larger dimensions of the PX2.1 to the PX4, the most significant difference is in “The Cube”. The Cube forms the heart of the PX2.1 and has several IMUs as well as corresponding damping and heating of them. This makes it possible to determine position or position more precisely. In addition, the PX2.1 enjoys a slightly larger community due to the somewhat earlier release date, which can help with corresponding problems.

Scope of delivery

• Pixhawk The Cube Carrier Board with ADS-B Receiver
• Pixhawk The Cube Orange
• Voltage divider
• Micro SD
• I2C Splitter
• Telemetry, Power, I2C, Buzzer Micro USB and GPS Cable
