M4 (pnp) incl. motor, servos and ESC – blue

Name: M4 (pnp) incl. motor, servos and ESC - blue
SKU: OSHM406P
Availability: InStock

649,00 €

Only 1 left in stock

Add to wishlist

SKU: OSHM406P Category: RC Helicopter

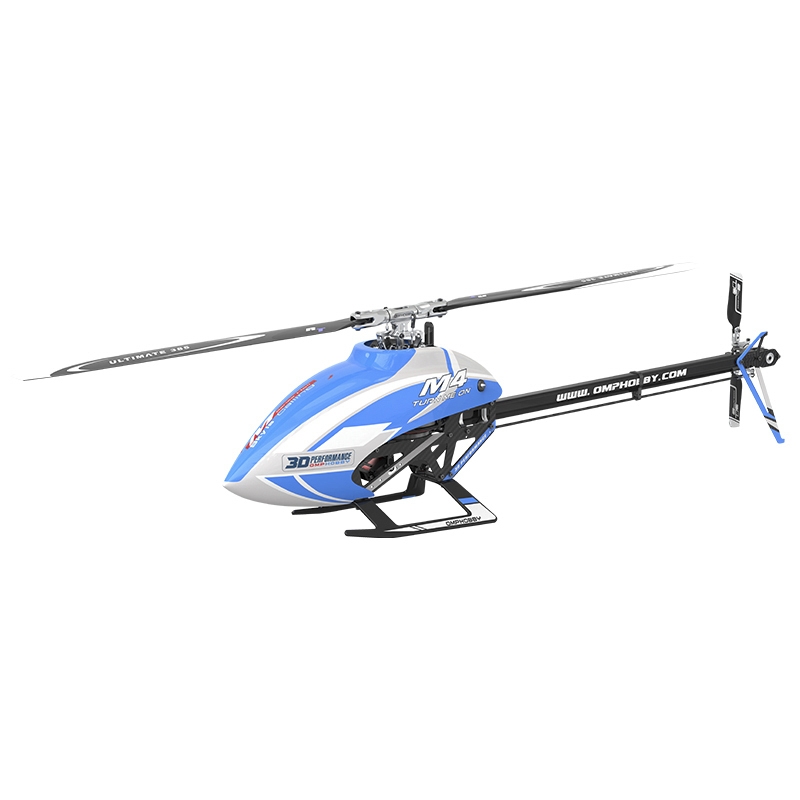

Τhe popular OMP HOBBY M1 and M2 mini helicopters now get a bigger brother – the 3D “380” class M4. The M4 has a 120° CCPM swashplate with a flybarless rotor head (FBL). A powerful brushless motor directly drives the 875mm diameter main rotor and the tail rotor is driven via a toothed belt. You can install your favourite FBL unit, a 6S 2200mAh LiPo battery and of course, a reliable RC set. 4 digital servos and a 65A controller with governor function come with the model.

Let’s take a closer look at this latest addition to the OMP Hobby hangar. The fuselage structure is based on a pair of carbon fibre sidewalls connected by duralumin and plastic crossbars. The “heart” is a duralumin structure carrying a SUNNYSKY R80-5 brushless motor with an attached main shaft housing with bearings and swashplate servo mounts. The main rotor is direct drive, the tail rotor is driven by a toothed belt. The swashplate and rotor head with blade grips are all metal from precision CNC-machined parts. All control rods are fitted with tie rods to allow rod length adjustment without the need to remove the ball links. The tail boom is made of a duralumin tube, the vertical stabilizer and the sidewalls of the tail rotor drive housing are carbon. The rotor head and blade grips of the tail rotor are also all-metal; yaw movement is controlled by a servo mounted in the lower fuselage with a carbon rod. The undercarriage is made of tough fibreglass-reinforced plastic.

A basic set of main and tail rotor blades is supplied with the model; 385mm blades for the main rotor and 71mm blades for the tail rotor.

You will need at least a six-channel RC set to control the helicopter; for full conventional and 3D flying, you will need a computer transmitter with 2–3 adjustable flight modes with at least five-point collective pitch curves for hovering and aerobatics and an additional mode for autorotation.

The helicopter is ready to get an FBL unit – you can easily use most units suitable for helicopters of this size, such as Bavarian Demon 3X or AXON, Futaba CGY760R or CGY755 and many others.

The pnp version comes with 4 fast and strong digital micro servos. Three DS2312C servos for swashplate (torque 4.9kg.cm, speed 0.073s/60° at 7.4 V) and one narrow-band (neutral 760µs) DS2312T servo for yaw (torque 3.5kg.cm, speed 0.053s/60° at 7.4 V). The OMP HOBBY 65A electronic speed controller with governor function designed specifically for the M4 helicopter is included as well.

For power supply, you will need a 6S 22.2V 2000–2200mAh LiPo battery with a 60C discharge rate necessary to fully utilize the motor power and capabilities of the helicopter.

The easily removable sport canopy is made of very lightweight moulded durable plastic – choose from three colour schemes to ensure good visibility and “readability” of the helicopter’s position in the air.

The M4 is a full 3D helicopter with a controlled collective pitch – and as such assumes and requires appropriate pilot experience. It is not a drone where you just give it throttle, it takes off and hovers “rooted” without any control inputs. The M4 will be fully enjoyed by intermediate to advanced pilots who already have experience flying collective-controlled (“six-channel”) helicopters. However, with a sufficient amount of perseverance, humility, previous training on an RC simulator and under the supervision of an experienced pilot, even a novice helicopter pilot can take up flying the M4.

The helicopter kit includes: a complete set of mechanics parts, SUNNYSKY R80-5 brushless motor, 4 digital servos, 65A controller, main and tail rotor blades, building and setup instructions.
