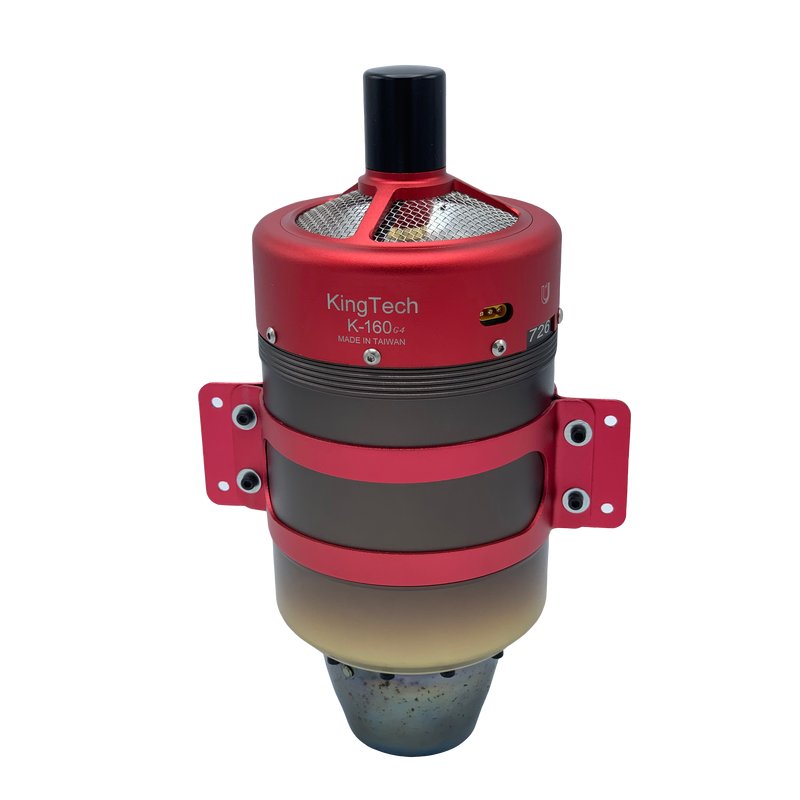

KingTech K160G4+

New G4 fourth generation

The G4 turbines now have a KT-Bus system, only one cable to the turbine via XT30 connector, integrated fod screen, brushless starter, new features, app * for Android and IOS, ECU mainboard, all parameters and timers integrated in the RPM sensor in the turbine.
Data relay module (DRM) integrated in the turbine, DRM transmits data, signals and power distribution, bluetooth, USB connection for upgrades and later planned features.

 Specifications:
Diameter: 103mm
Length: 255 mm
Weight: 1540 g
Maximum RPM: up to 130000
Thrust: 16 KG @ 15°C (35lb @ 59°F )
EGT: 700°C max
Fuel consumption: 490g / min ( 17.28oz / min )
Fuel: Diesel, Jet A1, Kerosene
Lubrication: 5%
