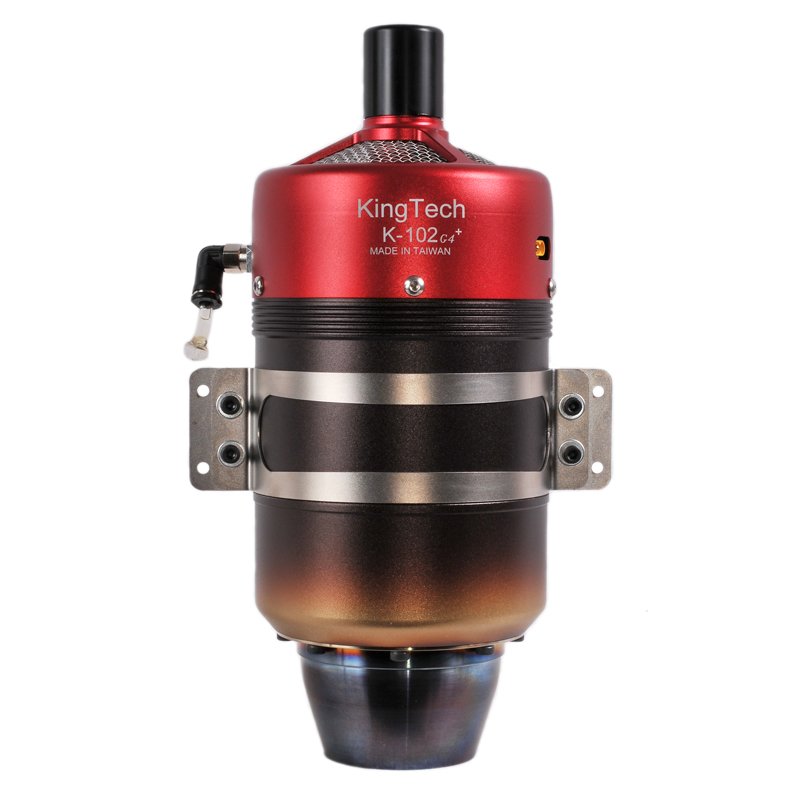

Kingtech K102G4+

New G4 fourth generation

The G4 turbines now have a KT-Bus system, only one cable to the turbine via XT30 connector, integrated fod screen, brushless starter and pump , new features, app * for Android and IOS, ECU mainboard, all parameters and timers integrated in the RPM sensor in the turbine.
Data relay module (DRM) integrated in the turbine, DRM transmits data, signals and power distribution, Bluetooth module (optional), USB connection for upgrades and later planned features.

Specifications:
Diameter: 84mm
Length: 203.3mm
Weight: 910g
Maximum RPM: up to 160000 max
Thrust: 10 kg @ 15° C.
EGT: 750°C max
Fuel consumption: 330 g / min
Fuel: Diesel, Jet A1, Kerosene
Lubrication: 5%
Pump type: Digital sbus brushless pump
