KAVAN PRO series motors are high performance 14- pole or more brushless outrunners. State-of-the-art design, hardened steel shafts, high quality ball bearings, High grade material used for stators and rotors ensure long lifetime and unbeatable performance and high efficiency. KAVAN PRO series motors are low revolution/high torque electric motors capable of swinging large diameter propellers without need for a gearbox.
| Motor Designation System: PRO xxYY-zzzz |
| PRO – brushless outrunner electric motor |
| xx – motor diameter in mm |
| YY – motor length in mm |
| zzzz – revolution per minute per Volt (RPM/V), “KV“ |

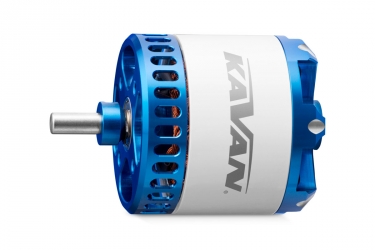

KAVAN PRO 5050-515
KAVAN PRO 5050-515 is a motor for model aeroplanes up to 5500 g all-up weight powered by 4-6S LiPo flight battery pack. It is great for scale and aerobatic models originally designed for .60-.90 (10-15 ccm) two-stroke glow engines.
Motor installation: KAVAN 5050-515 has been designed both for the front and radial mount installation. Front mount: Use four M4 screws; these may not go deeper than 4-5 mm into the front case. Radial mount: Use four M4 screws to secure the mounting cross to the firewall. The firewall should be made of 6.0-8.0 mm plywood. The radial mount set is supplied with the motor.
The motor set contents: KAVAN PRO 5050-515 motor w. cables (4 mm gold-plated connectors), radial mount set accessories. The full instruction manual can be downloaded here: KAVAN PRO 5050+ Brushless Motors Instruction Manual
Note: Alternative designation based on the stator dimensions: 4125-515.
| Powering LiXX cells | 4 – 6 |
| RPM/V [ot./min/V] | 515 |
| Max. power (30 s) [W] | 2000 |
| Internal resistance [mOhm] | 17.4 |
| Open-circuit current (při 10 V) [A] | 2 |
| Max. peak current (30 s) [A] | 100 |
| Diameter [mm] | 49.7 |
| Length [mm] | 51 |
| Length celková [mm] | 75 |
| Shaft diameter [mm] | 6 |
| Weight [g] | 350 |
| Poles count | 14 |
| Timing [°] | 15 – 25 |
| ESC [A] | 120 – 150 |
| Weight of glider (up-to) [g] | 5500 |
| Weight of trainer (up-to) [g] | 5000 |
| Weight of acrobat (up-to) [g] | 4200 |
| Weight of 3D (up-to) [g] | 3300 |
| Recommended Propeller (6S) | 14×8”–16×8” |
| Doporučená vrtule | |
| 6S: 14×8”–16×8” | |
