KAVAN Brushless Motor PRO 3536-1000

KAVAN PRO series motors are high performance 14-pole brushless outrunners. State-of-the-art design, hardened steel shafts, high quality ball bearings, High grade material used for stators and rotors ensure long lifetime and unbeatable performance and high efficiency. KAVAN PRO series motors are low revolution/high torque electric motors capable of swinging large diameter propellers without need for a gearbox.

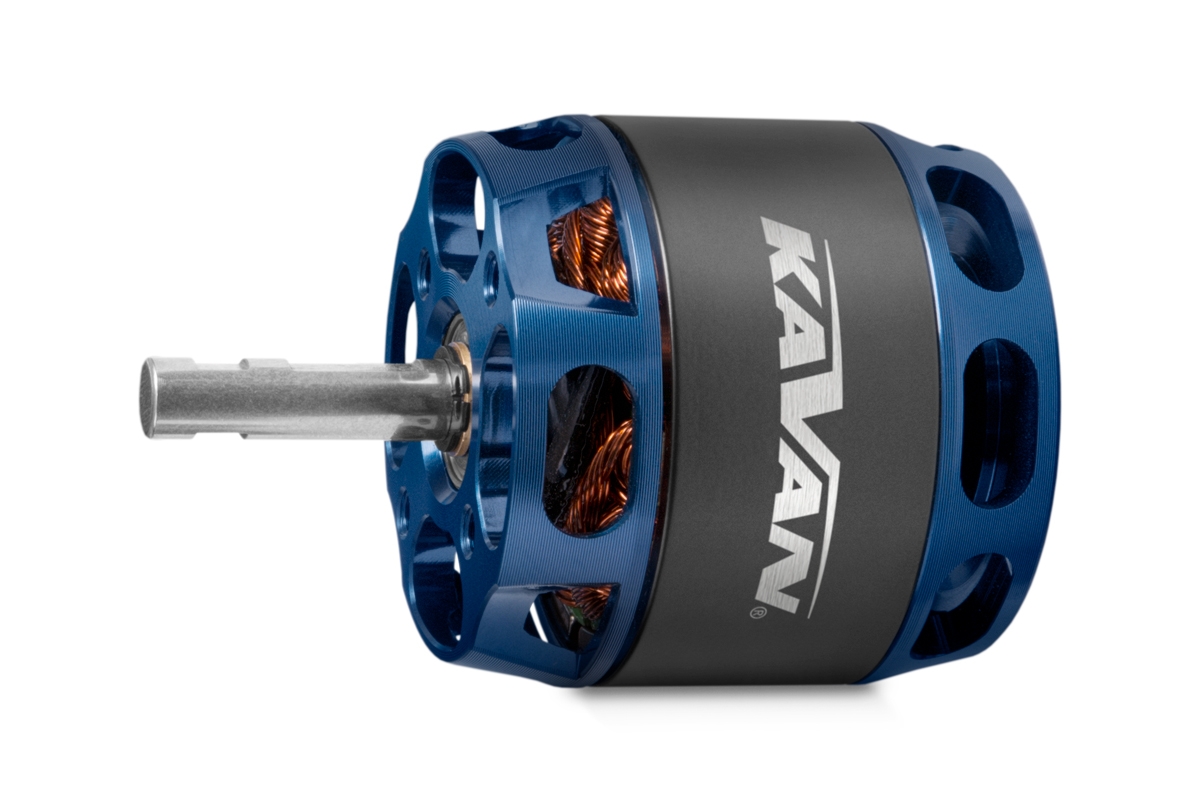

KAVAN PRO 3536-1000

KAVAN PRO 3536-1000 is a motor for model aeroplanes up to 1800 g all-up weight powered by 3-4S LiPo flight battery pack. It is great for 2000-2300 mm electric powered thermal gliders, MULTIPLEX® FunCub, Solius, Heron, 1200-1400 mm high wing trainers, scale and aerobatic models.

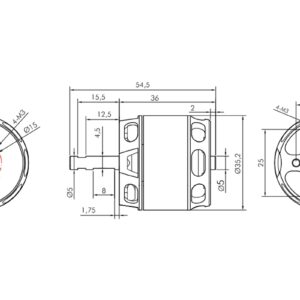

Motor installation: KAVAN 3536-1000 has been designed both for the front and radial mount installation. Front mount: Use four M3 screws; these may not go deeper than 3-4 mm into the front case. Radial mount: Use four M3 screws to secure the mounting cross to the firewall. The firewall should be made of 4.0 mm plywood. The radial mount set is supplied with the motor.

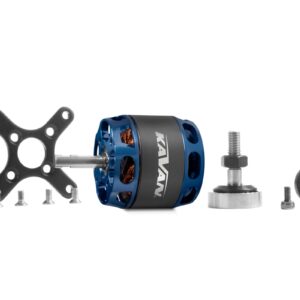

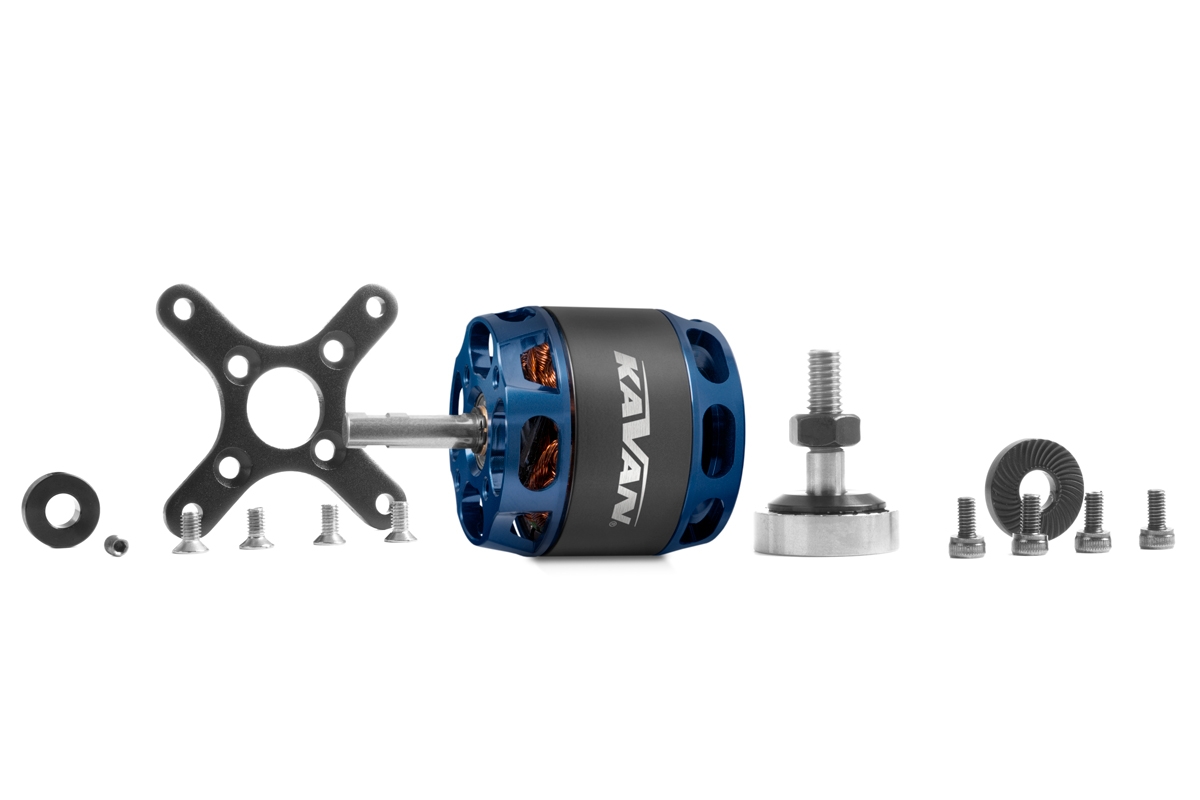

The motor set contents: KAVAN PRO 3536-1150 motor w. cables (3.5 mm gold-plated connectors), radial mount set accessories. The full instruction manual can be downloaded here: KAVAN PRO Brushless Motors Instruction Manual

Note: Alternative designation based on the stator dimensions: 2814-1000.
