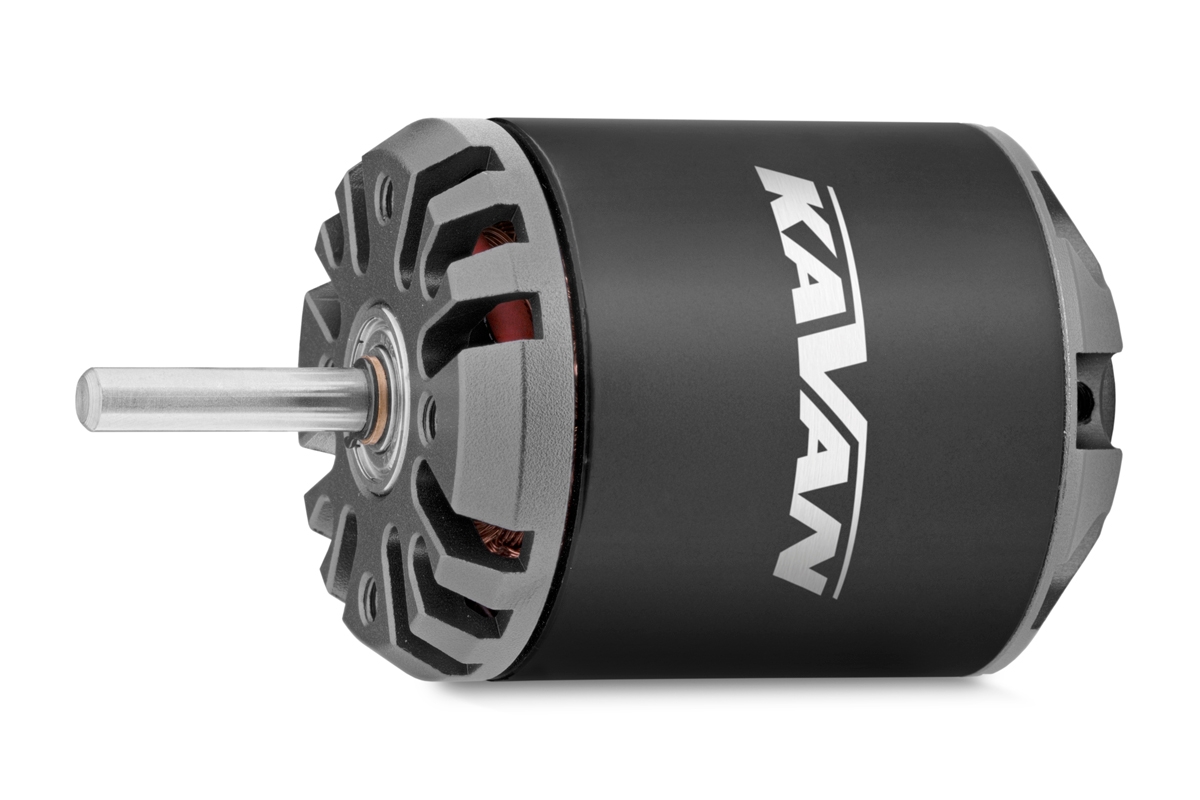

KAVAN Brushless motor C3548-800

AVAN C series motors are powerful brushless 14-pole outrunner motors with excellent electrical characteristics, sophisticated design and excellent workmanship. They represent a very good choice for powering your hobby-sport models with excellent performance, good efficiency and a favourable price. They are low speed, high torque motors that handle large diameter propellers and climbs without the need for a gearbox.

The KAVAN C3548-800 is a brushless motor designed to power models with a flying weight of up to 2700 g, powered by a three to five cell Li-poly battery. It is well suited for models such as EPP “Warbirds” and aerobatic models with a wingspan of 1300-1400 mm, Spitfire EP or Mustang EP from Phoenix, etc.

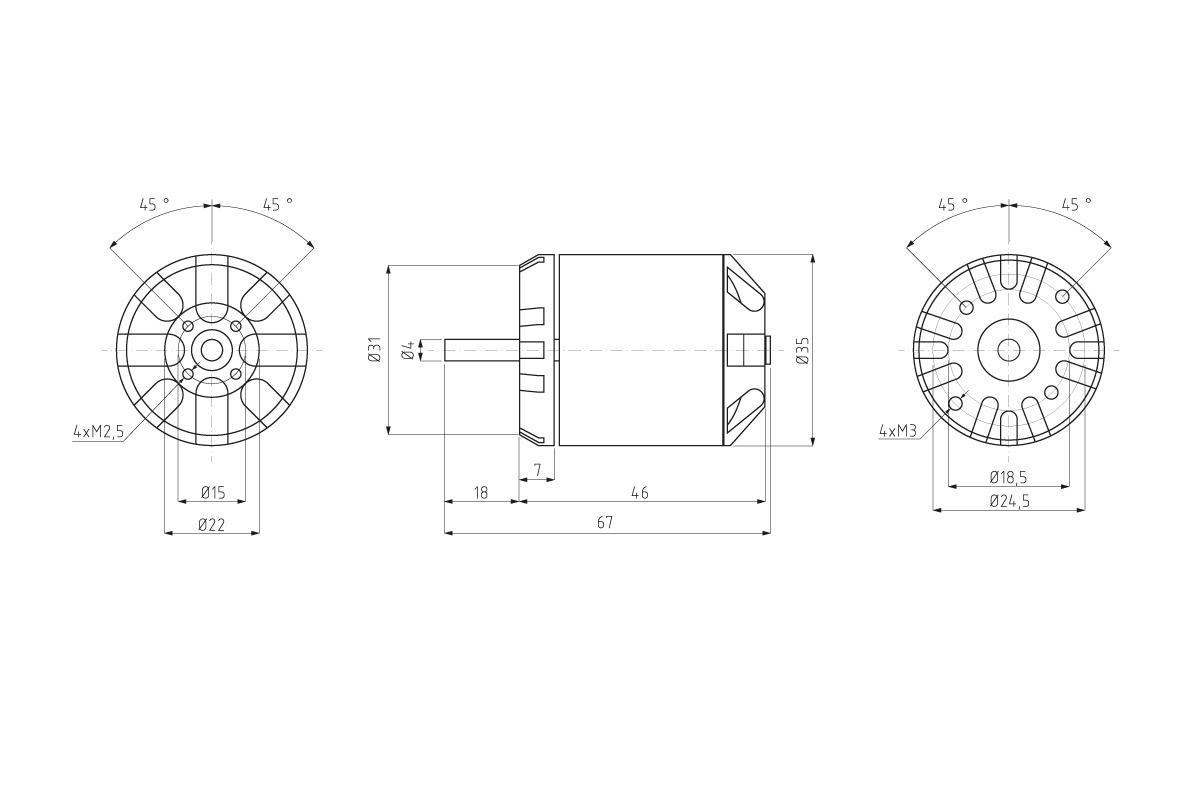

Motor mounting:The KAVAN C3548-800 is designed for both front and rear mounting. For front mounting behind the motor face, use at least two (opposing) or four M3 bolts that engage the motor face within 4 – 5 mm. The pairs of holes for the fixing screws in the motor face are spaced regularly at 180° on circles of 25 and 19 mm diameter. The motor firewall should be 5 mm Birch aircraft plywood. A rear mounting kit (mounting cross, prop adaptor) is supplied with the motor.

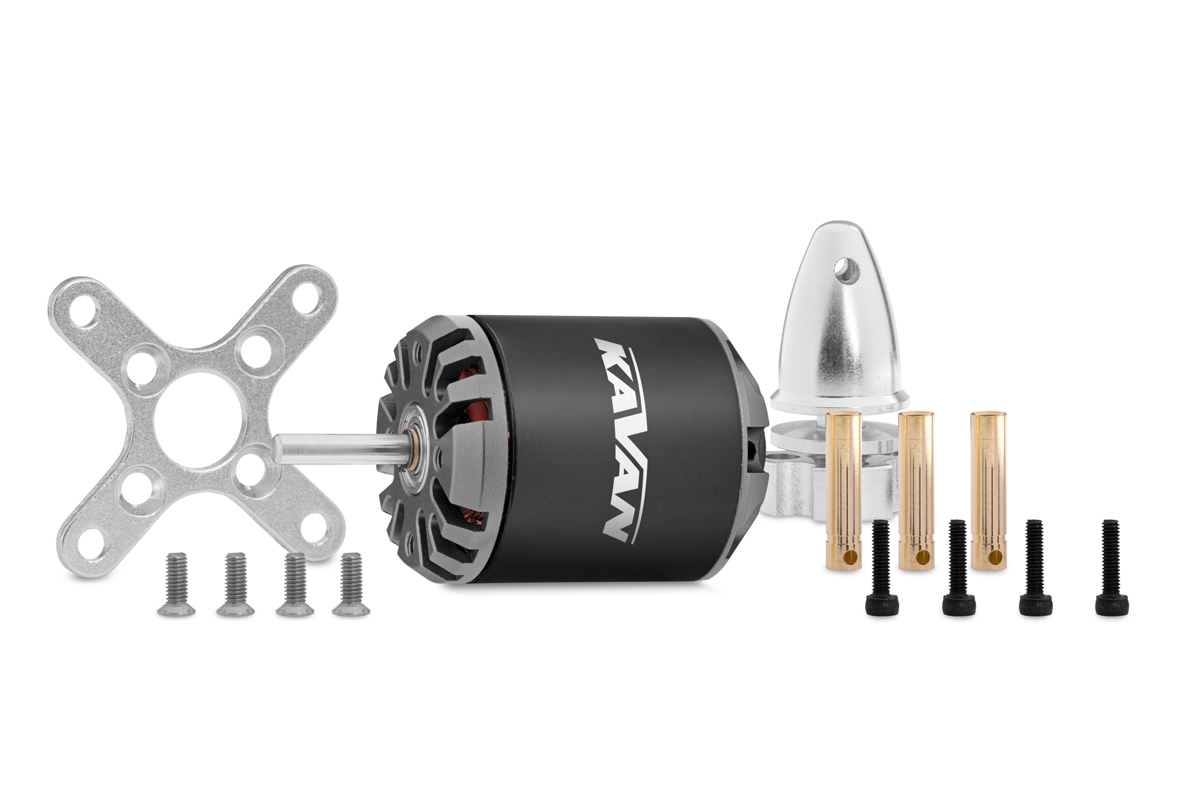

Motor kit includes: motor C3548-800 with cables and with soldered 3.5 mm gold-plated connectors, rear mounting kit, manual.

Supply voltage LiXX cells: 3 – 5 ; RPM/V [RPM/min/V]: 800 ; Max. power (30 s/5S LiPo) [W]: 660 ; No load current (3S) [A]: 2.2 ; Max. peak current (30 s) [A]: 48 ; Diameter [mm]: 35 ; Lenght [mm]: 48 ; Shaft diameter [mm]: 4 ; Weight [g]: 170 ; Nr. of poles: 14 ; Timming [°]: 15 – 25 ; ESC [A] : 50 – 60 ; Sailplane up to Weight [g]: 2700 ; Trainer up to Weight [g]: 2600 ; Acrobat up to Weight [g]: 2300 ; 3d up to Weight [g]: 1500
