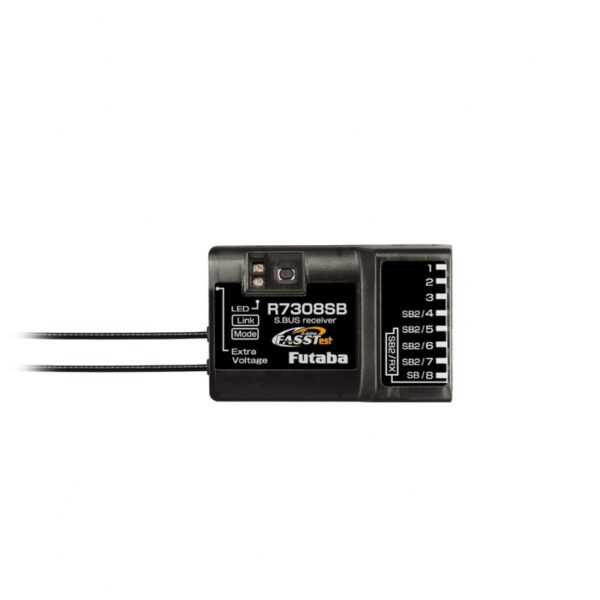

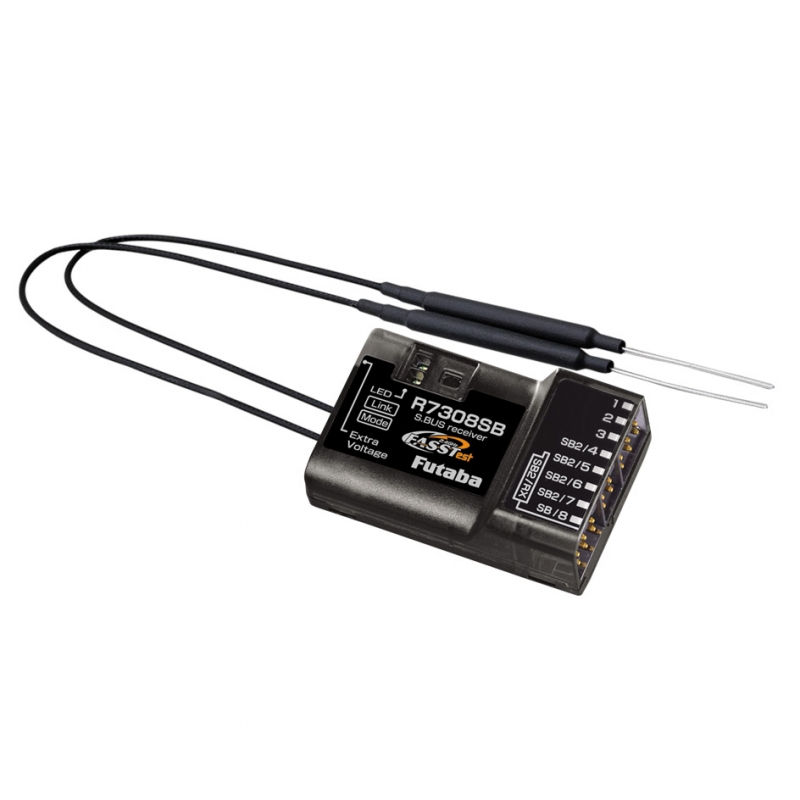

Futaba R7308SB FASSTest 8ch RX

Futaba R7308SB – FASSTest-2.4GHz Bi-directional receiver

The R7308SB receiver has bidirectional communication with a FASSTest Futaba transmitter via the S.BUS2 port. An impressive number of telemetry sensors can be used with the help of the S.BUS2 port. The R7308SB also features standard PWM output ports (1-8ch) and S.BUS output ports. The R7308SB can also be converted to the Dual RX Link system. This system can ensure safety by mounting two FASSTest receivers on the same aircraft.

FEATURES

• FASSTest-2.4GHz Bi-directional Communication System (18ch & 12ch Mode)
• Dual RX Link System Equipment
• S.BUS / S.BUS2 Port and 8-channels for Conventional Systems
• Dual antenna diversity

Specs:

• Power requirement: 3.7-7.4V
• (Voltage Range: 3.5-8.4V)
• Extra Voltage Port: Max 70VDC
• Size: 38.8×24.9×14.3mm
• Weight: 11g
