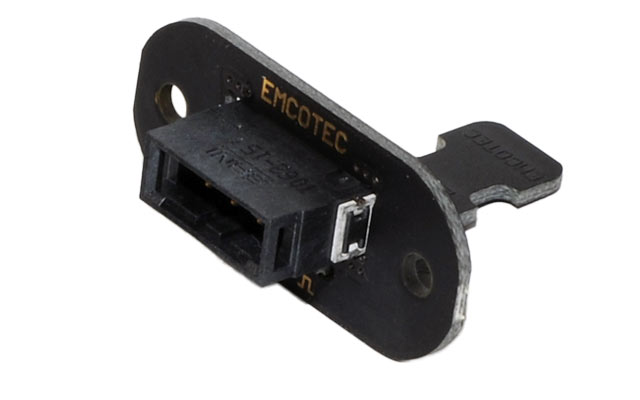

EWC3 wing plug

WC3 wing plug

Product description and features

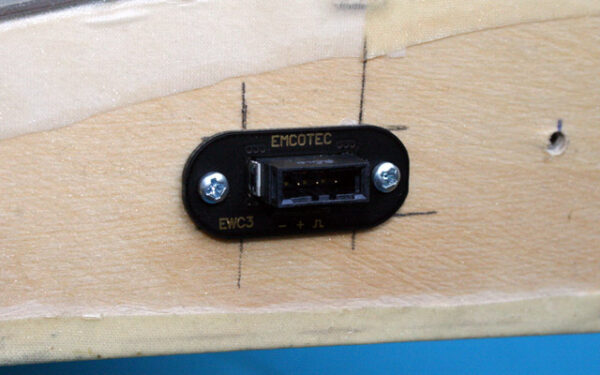

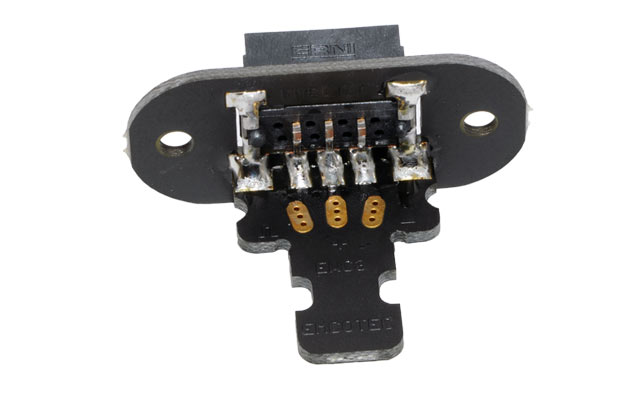

Screw the EWC3 wing plug into the root rib of the model aircraft’s wing. Solder the connection cables of the wing servo on the three pins of the EWC3 wing plug’s PCB.

Fix the connection cables of the wing servo on the PCB with the contained cable tie and the shrink tube.

EWC3 fuselage cable

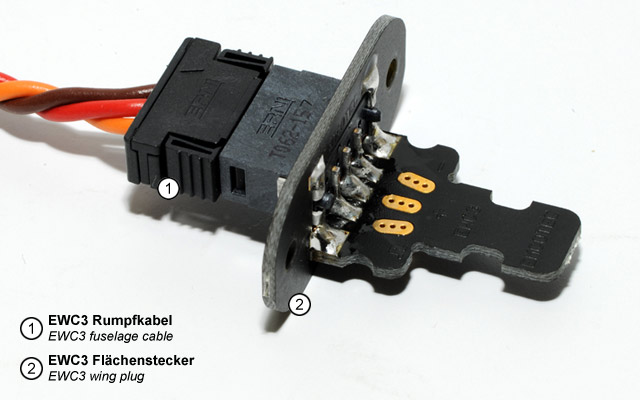

As a counterpart to the EWC3 wing plug, there is the separately available EWC3 fuselage cable (see Accessories tab). Optionally, the EWC3 fuselage cable is available with soldered JR sockets or with open ends for custom cutting.

Delivery contents

1 EWC3 wing plug, 1 cable tie and 1 shrink tube.
