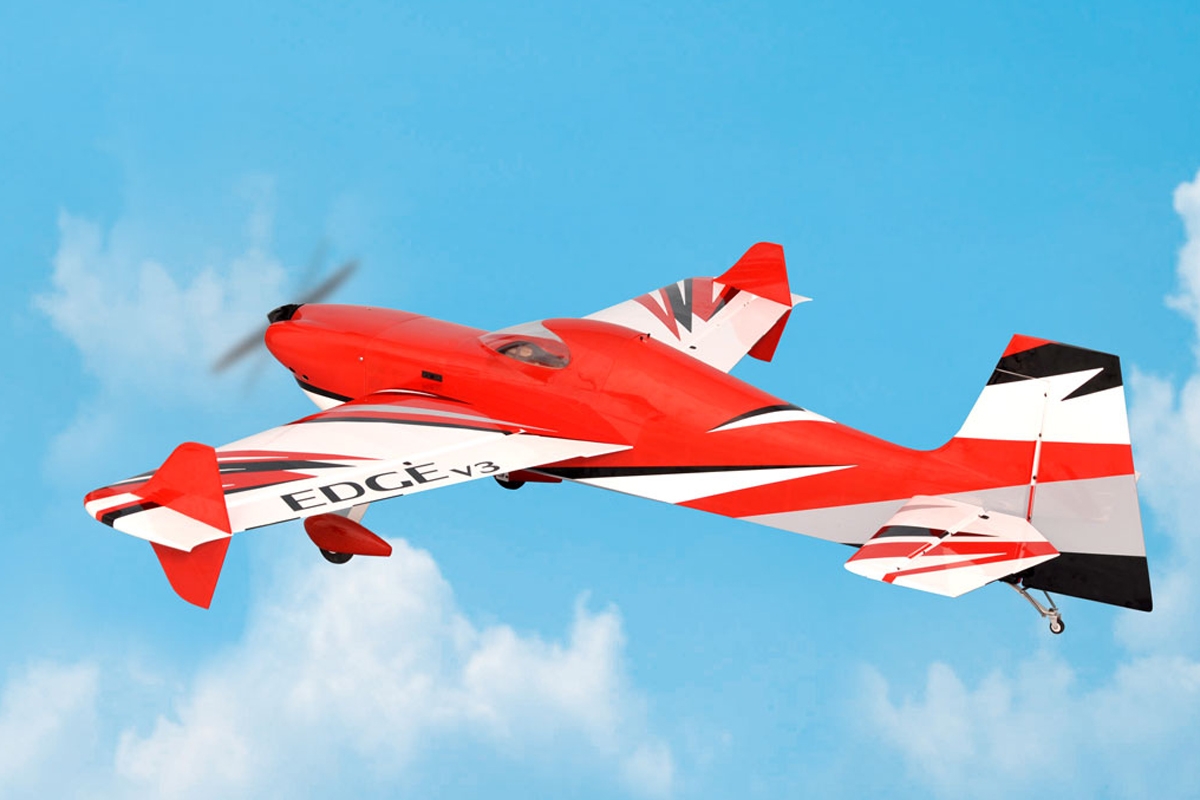

BH176 Edge 540 V3

EDGE V3
Item code: BH176

SPECIFICATION:
– Wingspan: 1,880 mm (74 in).
– Length: 1,850 mm (72.8 in).
– Weight: 5.3 – 5.5 kg (11.7-12 lbs).
– Wing area: 61.7 dm2.
– Wing loading: 85.8 g/dm2.
– Servo mount: 42mm x 21mm.
– Wing type: Naca Airfoil.
– Gear type: Carbon fiber for main gear (included)
and aluminium Hi-grade tail gear (included).
– Spinner size: Plastic 85mm.
– Covering type: Genuine oracover

Parts listing required (not included):
– Radio: 06 channels minimum.
– Servo: 06 servos (HV High torque steel
gear servo).
– Engine: DA 35 cc – GP 38 cc gas.
– Motor: Brushless outrunner
2500 – 3200W, 250KV.
– Propeller: Suit with your engine.

Recommended Motor and Battery set up (not included):
– Motor: RIMFIRE.1.60.
– Lipo cell: 12 cells 4,000-5,500mAh.
– Receiver battery: 6-7.4V/ 2200-3000mAh.
– ESC: 80 – 100A.
ALL BALSA – PLY WOOD CONSTRUCTION.
COVERED WITH ORACOVER
