AMXPLANES AM650 BUSINESS-JET 1766MM PNP

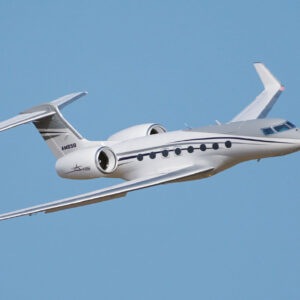

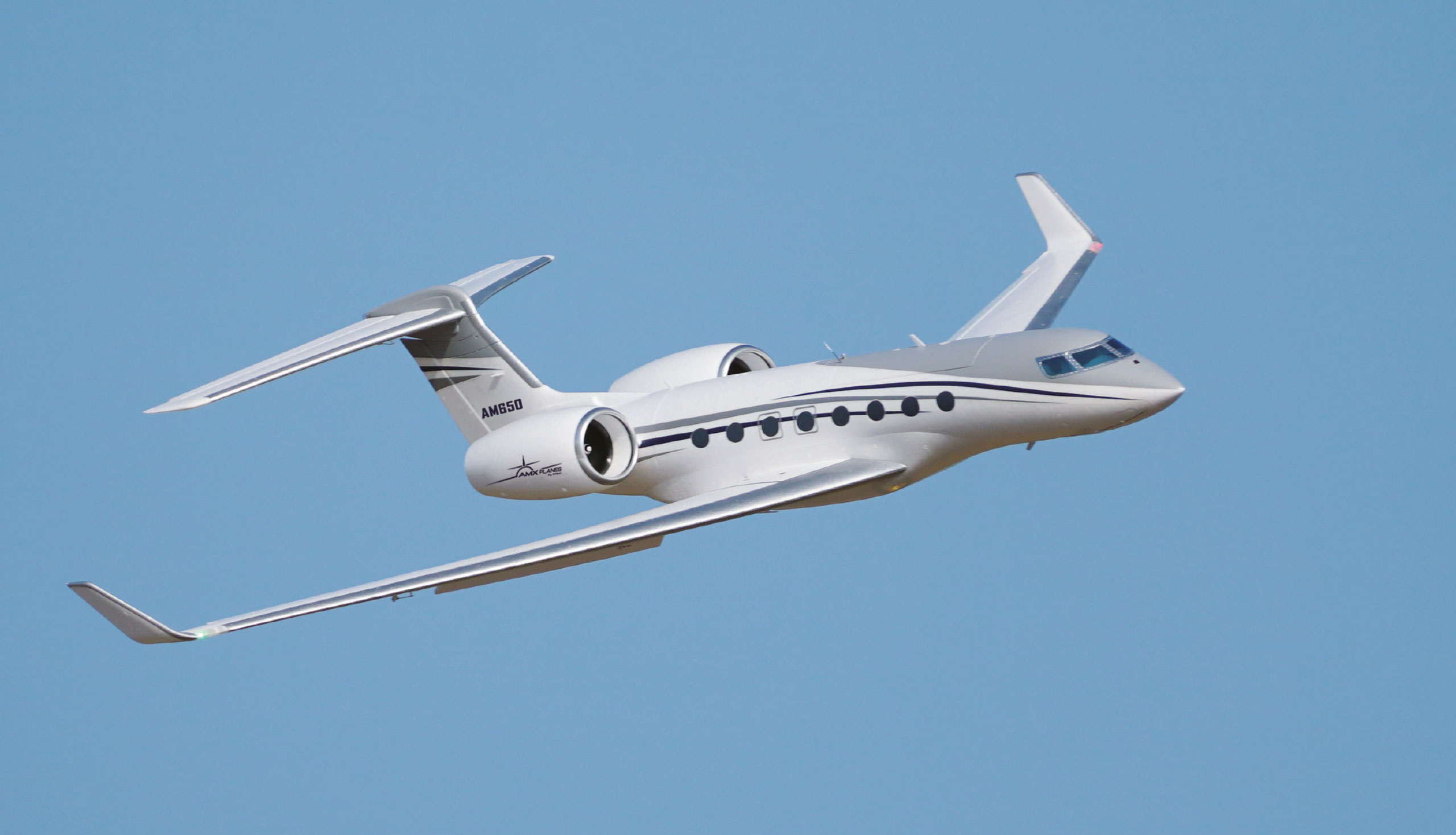

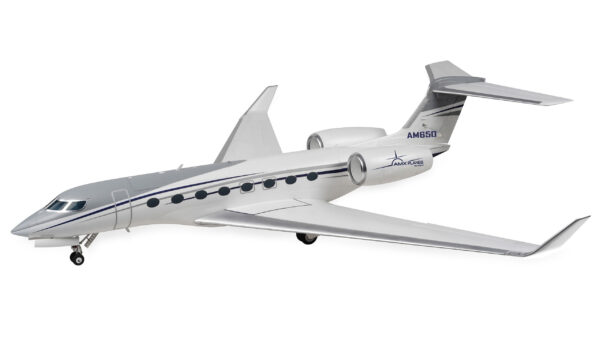

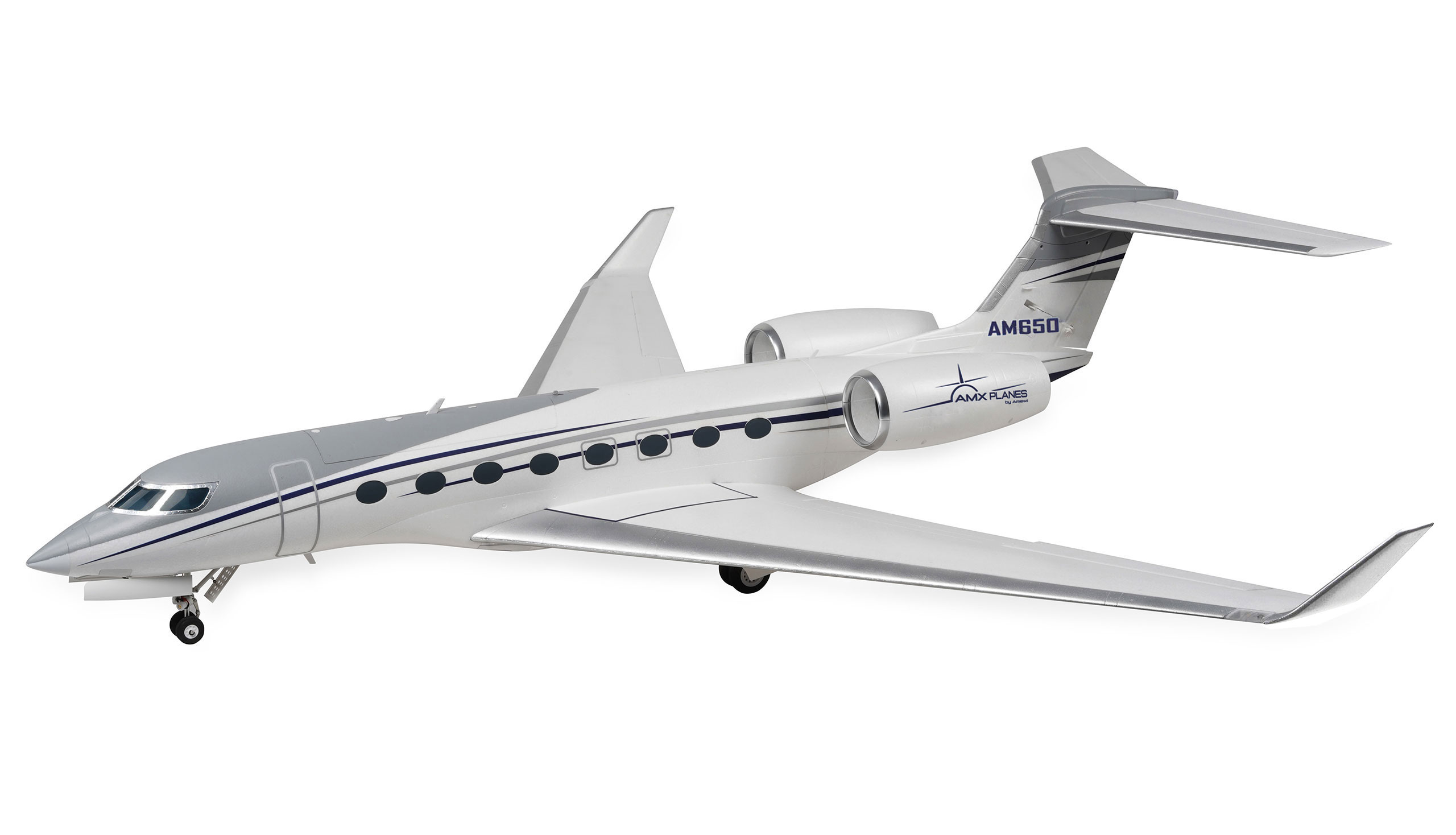

We present our first business jet, the AM650 Twin 70mm EDF Jet. This scale replica shines not only with its beautiful details like riveted window frames, over 13 LEDs, removable winglets, a scale landing gear with landing gear doors and removable nacelles, also the technical equipment like the two 60A ESC from Hobbywing, both 2860 2200KV brushless motors, the 8 digital servos with metal gearboxes, both 70mm 12-blade impellers, the 3-axis stabilization system with SBUS functionality and fully adjustable gain, the removable wings with metal wing connectors, the towed main landing gear and the compression strut nose gear, speak for themselves.
The AM650 Business Jet has a takeoff weight of approximately 4kg, depending on the LiPo battery used (5000-6000mAh recommended) and can achieve a flight time of 5-8 minutes, depending on the flying style and battery used. The included AFSS system can make for even more enjoyable and easier flights by compensating for influences such as wind, etc.

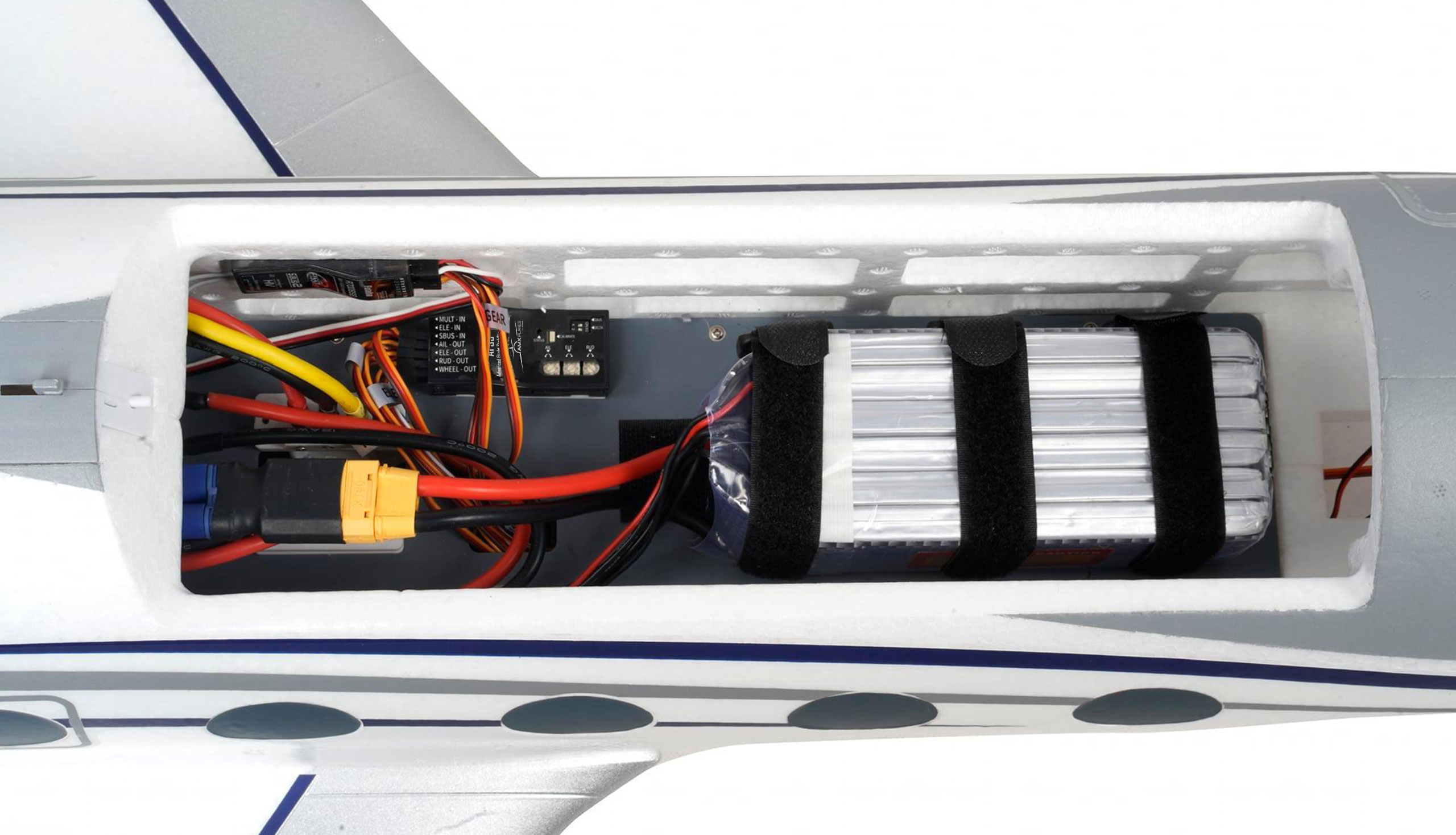

The assembly of this largely prefabricated PNP model is limited only to gluing the two-piece fuselage, attaching the elevator, the drive nacelles and the wings. All parts are screwed (except for the fuselage halves) and all cables, the 13-piece LED lighting, the landing gear and the distribution board, where all electrical components converge, are already installed in the model. The connection of servos and LEDs in the elevator and wings are each connected to their counterpart in the fuselage via a multi-pin connector before the elevator and wings are bolted on. Thus, all connections are made to the elevator with tail flasher and, for the wings, to the aileron, flaps, lights and landing gear.

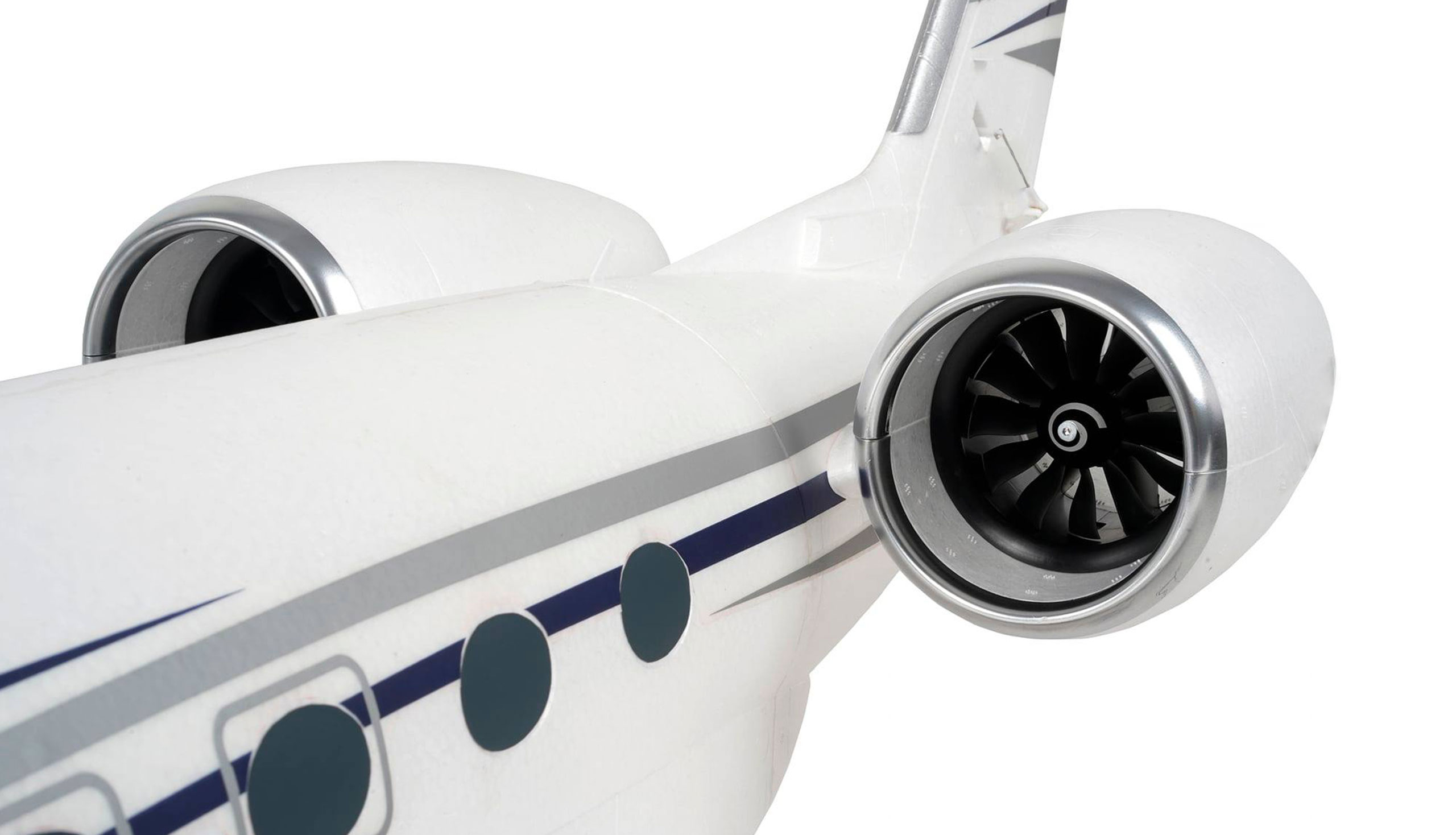

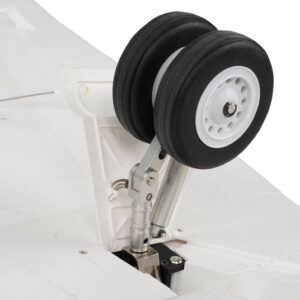

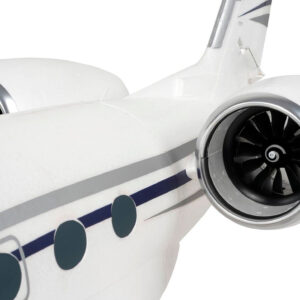

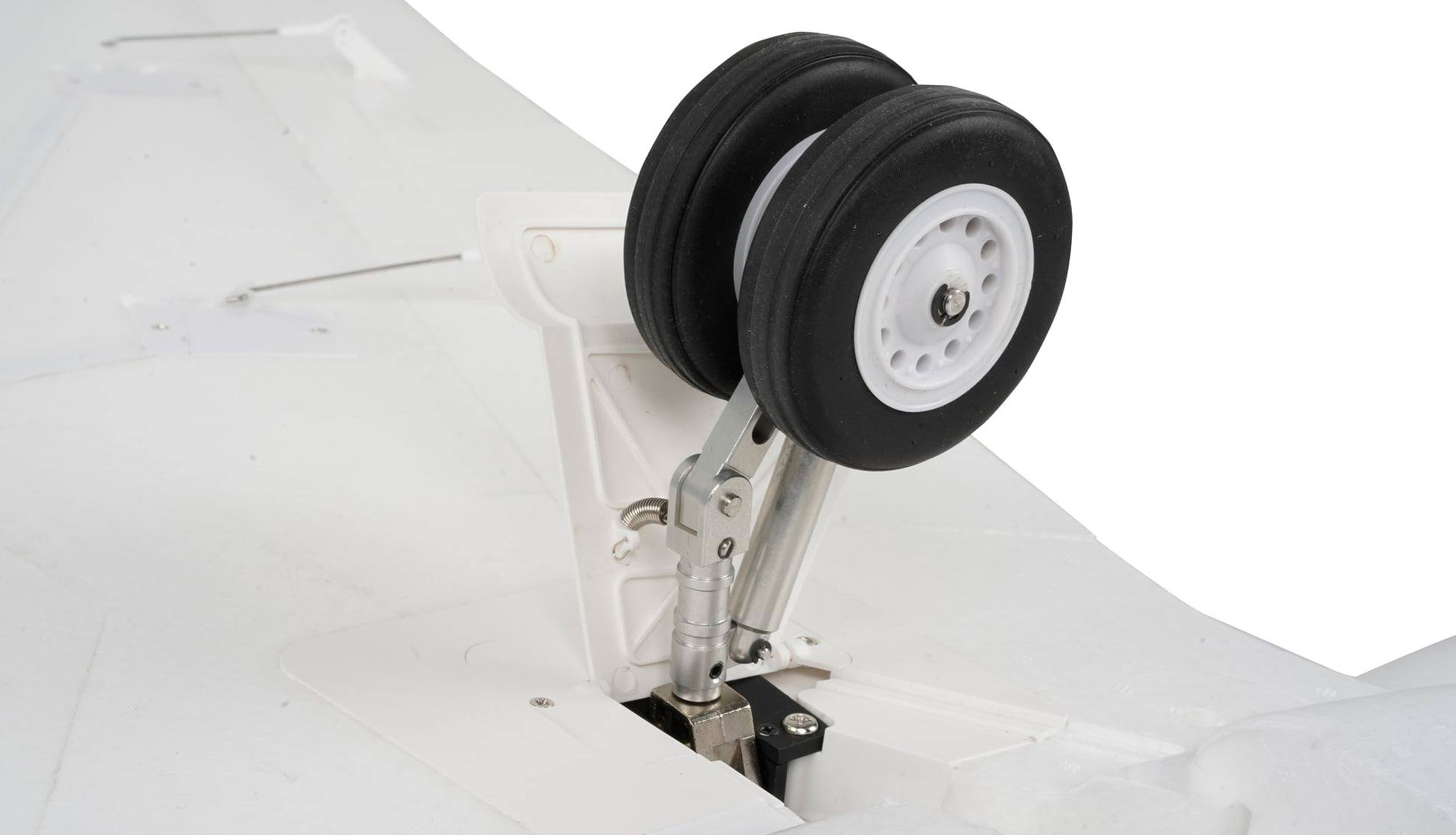

The landing gear is electric, made of aluminum, double-tired and dragged. Bumps on takeoff and somewhat harder landings are no problem for this reason. Thanks to the ample power of the finely balanced 70mm 12-blade impellers and the high-performance brushless motors with a specific speed of 2200KV on 6S, takeoffs succeed even on grass after a short takeoff distance.
For landing, the flaps can be extended, so that the speed decreases significantly. The AM650 combines a large business jet with good-natured flight characteristics – making it suitable for professionals as well as less experienced pilots, but who already have some flying hours behind them.

Highlights:
Stability system included in the set for do-it-yourself installation for even more stable flight behavior in e.g. windy conditions
Complete and towed electric retractable landing gear made of metal
Multi-pin connector on wings and elevator for all functions such as ailerons, elevator, landing gear, lights and flaps

Other features:

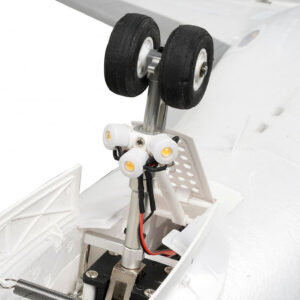

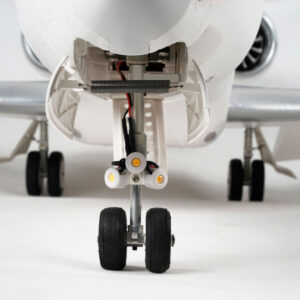

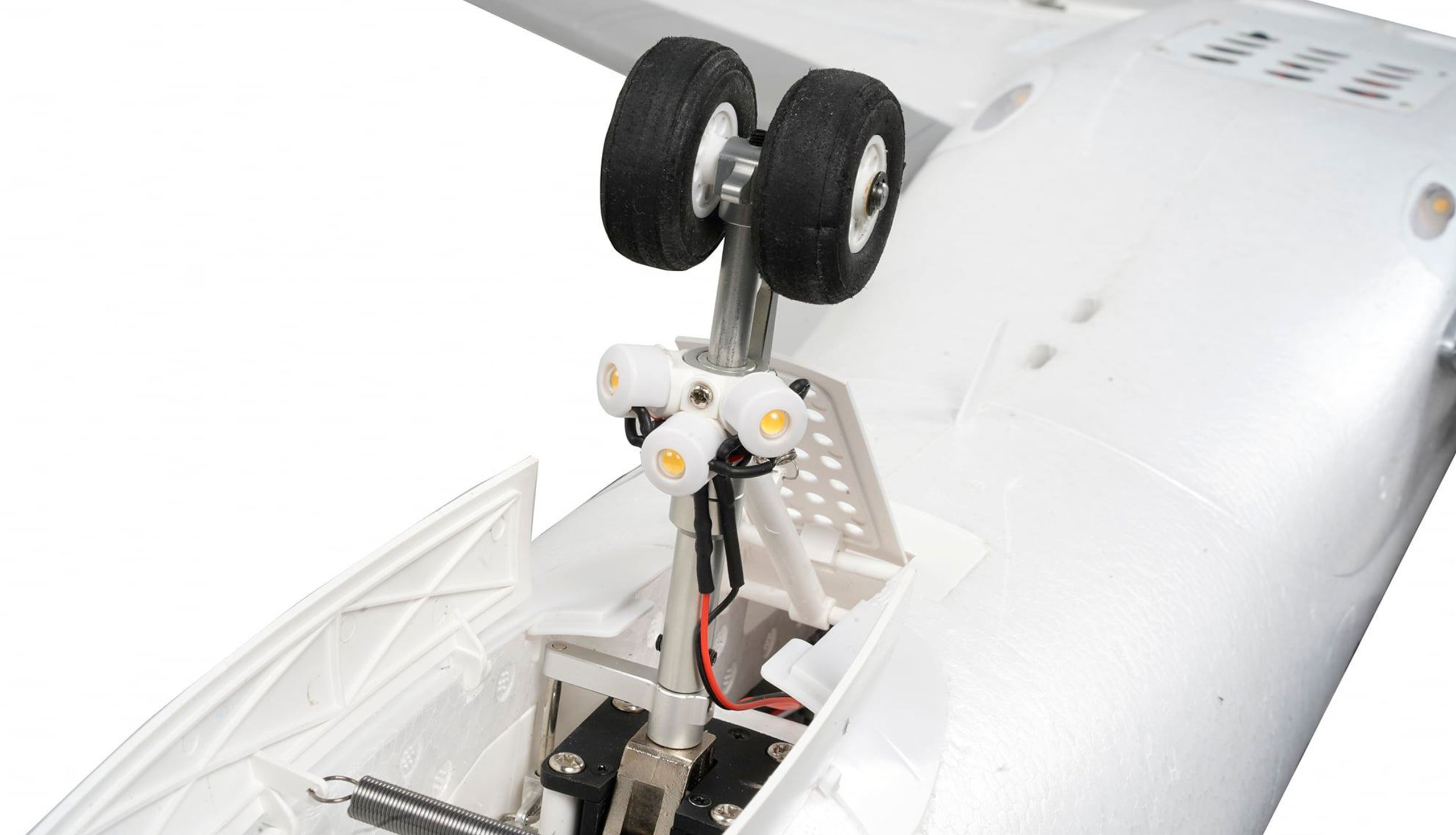

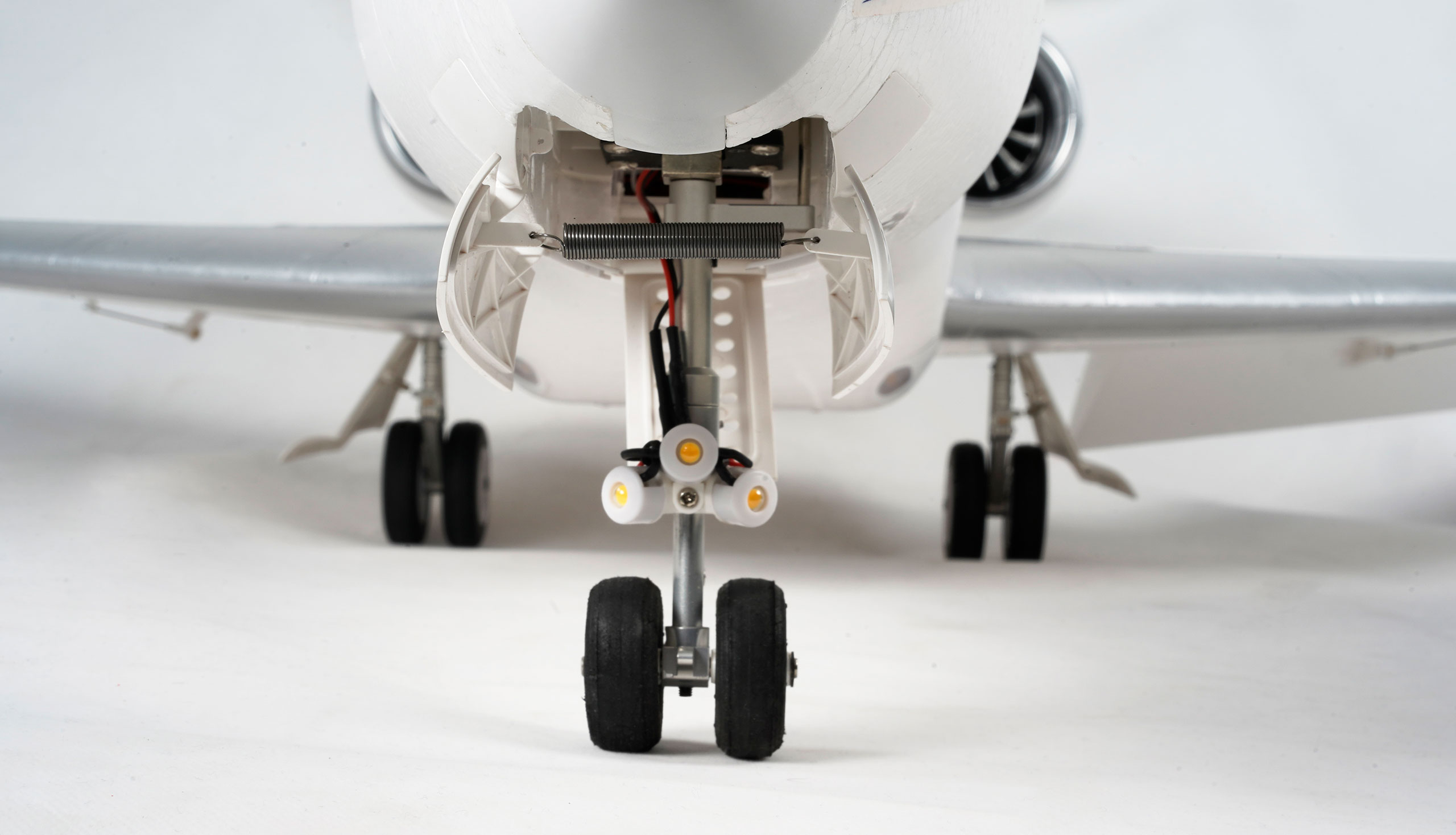

13-piece LED lighting such as tail flasher white, wing lights with flasher and red/green LED, landing lights in the fuselage and 3-piece landing lights on the nose gear
High strength material with very smooth surface and a great look
All metal driven servos already installed
Landing gear ready installed (wing and nose with double tires)

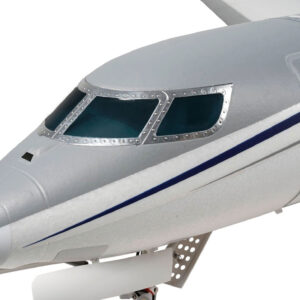

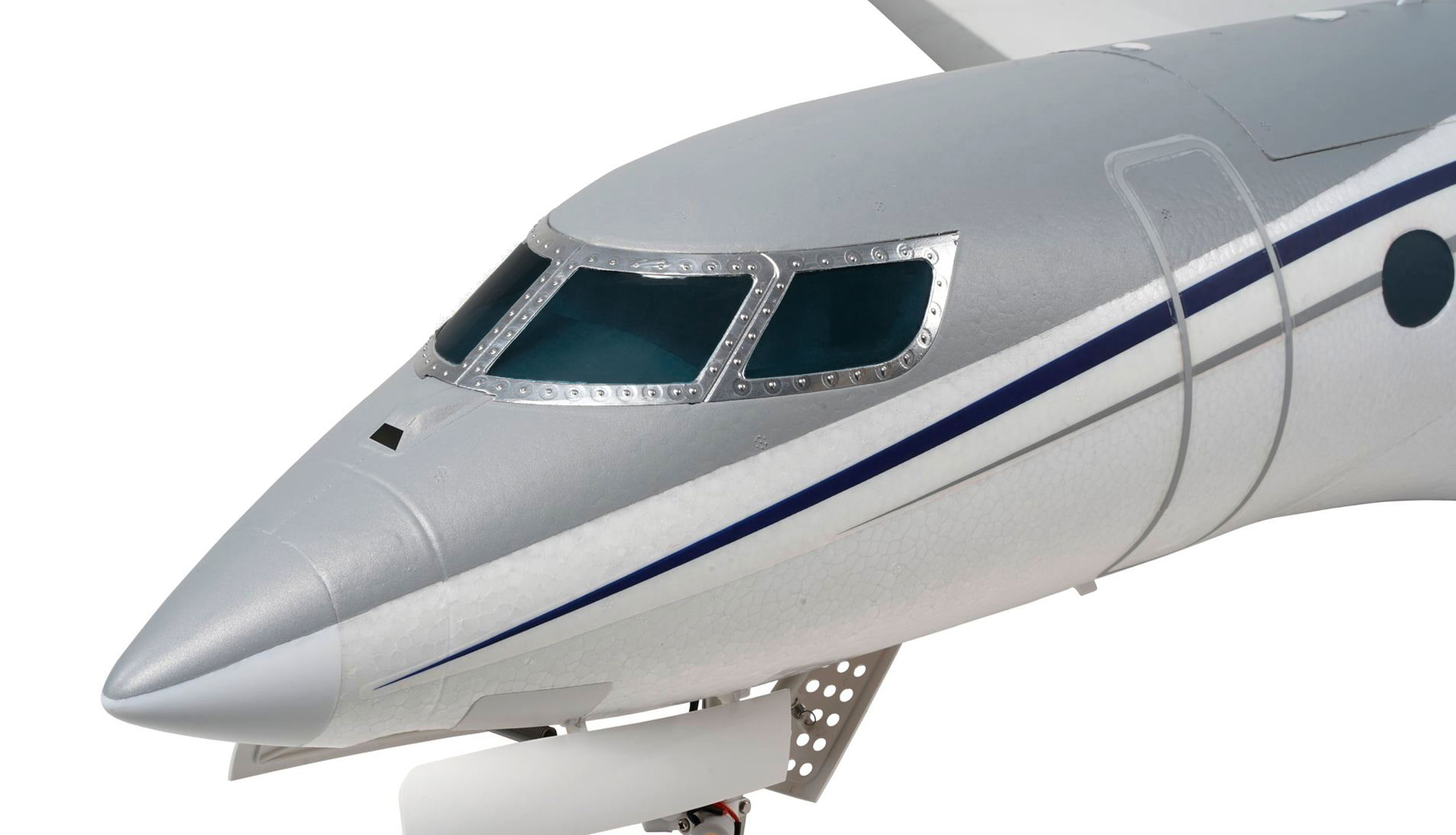

Cockpit glazing with rivet dummies
High-performance drive ready installed and finely balanced
Turbine-like sound
Very wide speed range (slow to very fast)
Gyro/gyro included in the set
2x Hobbywing 60A sESC
8A BEC ready installed for power supply of the electronics (via controller)

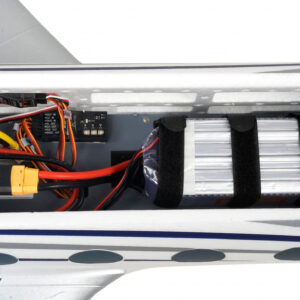

Ready installed distribution board for all rudders, lights and landing gear. Thus, the model can also be operated with a 7-channel receiver / transmitter

Specifications:
Wingspan: 1766mm
Length: 1768mm
Weight: approx. 3900g e.g. with a 5400mAh 6S LiPo
Main material: EPO foam and plastics
Landing gear: electric metal, towed
Thrust: over 1:1
Motor: 2x 2860-2200KV
ESC: 2x Hobbywing 60A
Servos: 5x 13g Digital MG / 3x 9g Digital MG
Skill level: advanced to professional
Build time: approx. 20-30min

Scope of delivery:
Model PNP
AFSS module
Battery Velcro
Instruction manual DE/EN

Required accessories:
Transmitter/receiver min. 7-channel
LiPo Battery 5000-6500mAh 6S XT90
Charger
