Description

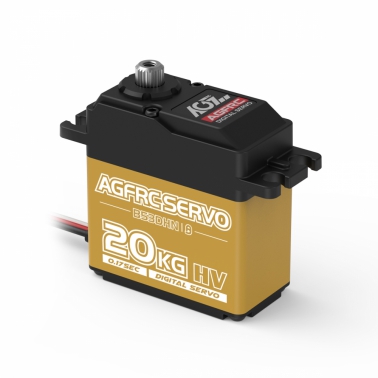

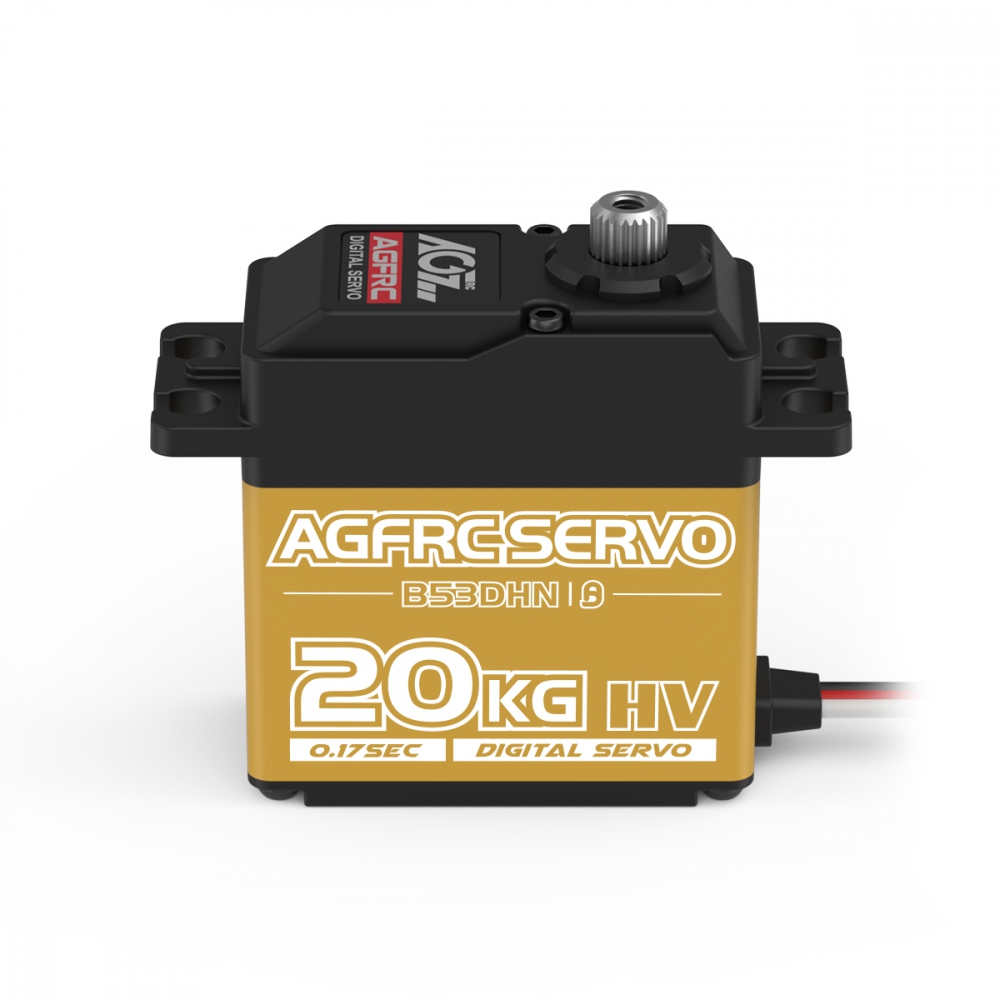

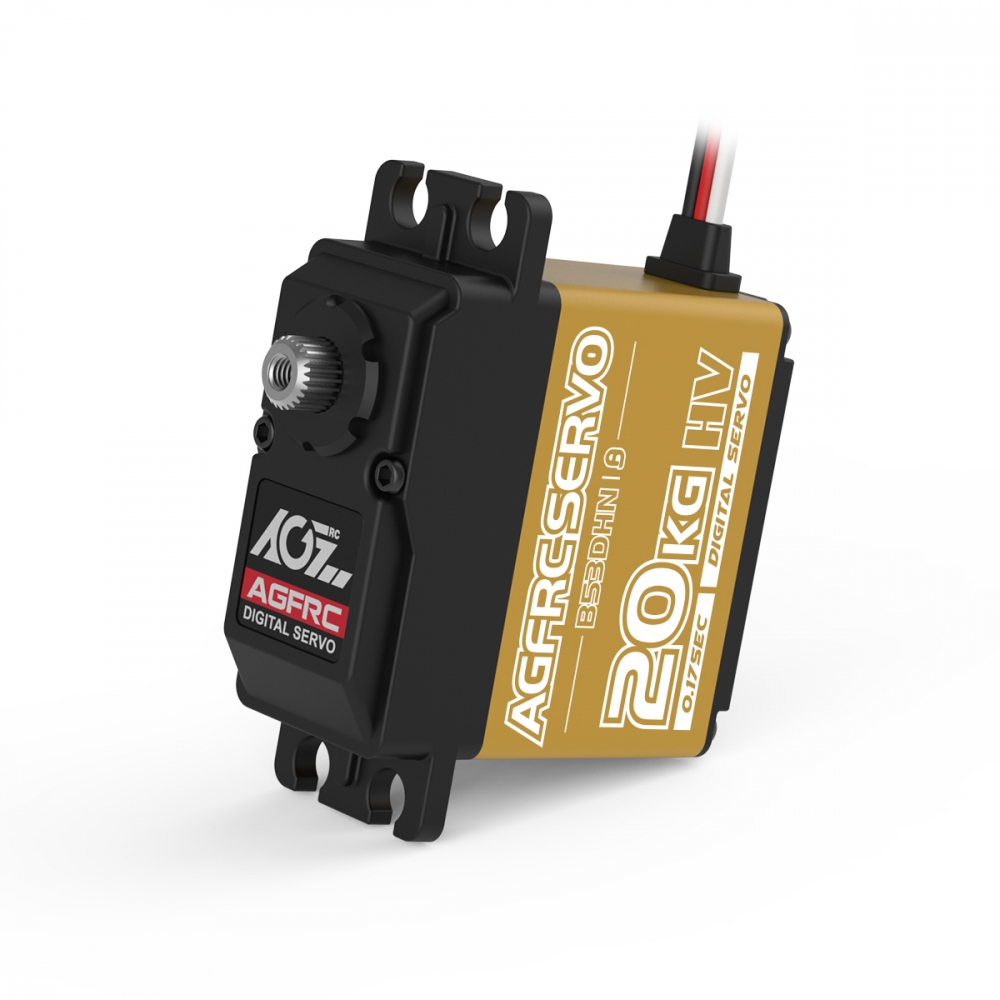

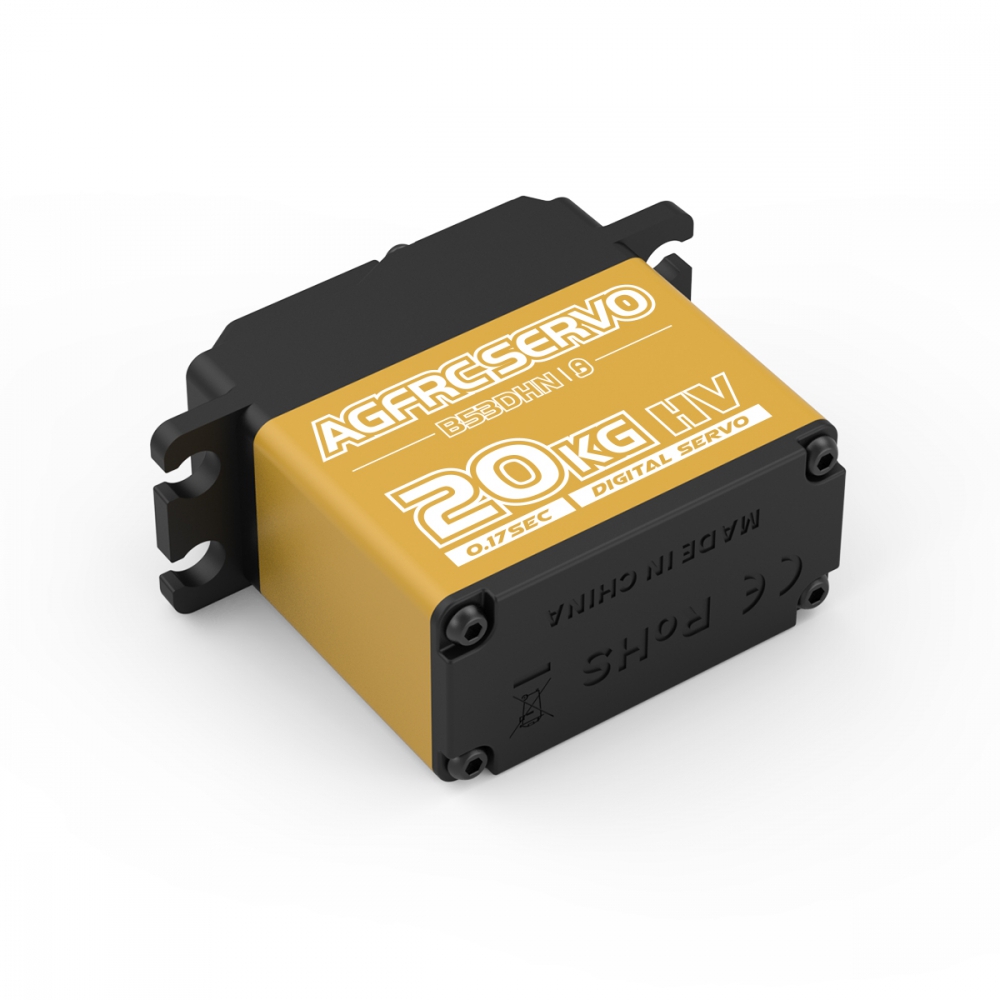

The AGF-RC B53DHN is a 20mm standard servo with a partially aluminum housing. The servo is HV capable and can be operated directly on a 2s LiPo (4.8 – 8.4V).
With 20kg actuating force, this powerhouse can show what it can do in a variety of tasks. The maximum servo travel is up to 180°.
Whether in a fixed-wing model or an RC car, the B53DHN delivers top performance at a very good price.
15kg at 6.0V 0.21sec / 60°
18kg at 7.4V 0.185sec / 60°
20kg at 8.4V 0.17sec / 60°
The B53DHN can also be programmed with the optional USB interface AGF-SP.
This requires a Windows computer with Windows 7 or 10. The servos are powered directly via the USB port and only need to be plugged into the interface. In the software, for example, the soft start, the neutral point, the servo travel can be adjusted (larger and smaller) or the direction of rotation can be set. Furthermore, the Sanwa SSR mode can be activated if required, which is particularly interesting for RC car drivers. The integrated overload shutdown can also be adjusted in 3 stages and you can select what should happen if the signal is lost.
Of course, these are optional features; all servos can be operated normally straight out of the package and do not need to be adjusted beforehand!
Characteristics
| Positioning time S2/60° (sec): | 0.17 |
| Positioning time S1/60° (sec): | 0.21 |
| Actuating force S1 (kg*cm): | 15 |

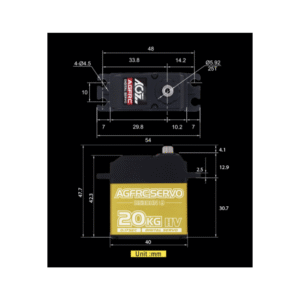

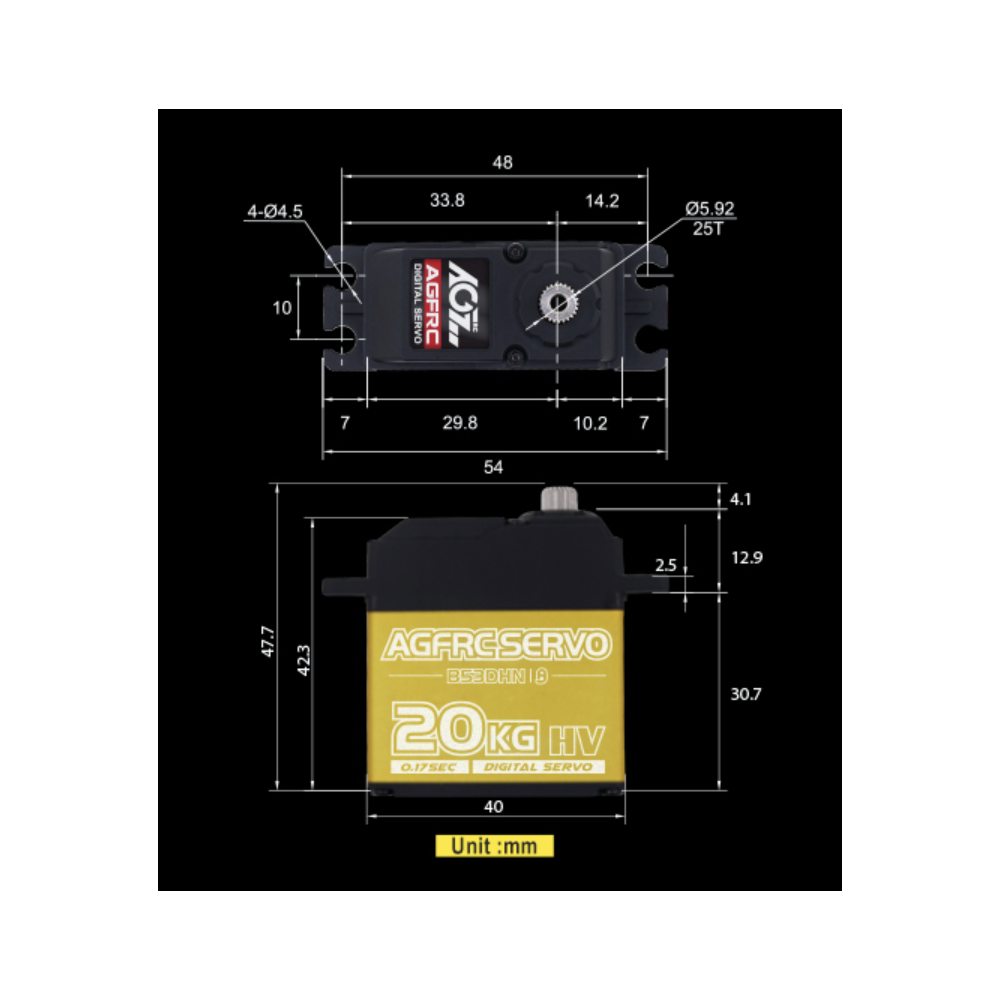

| Width (mm): | 20 |
| Actuating force S2 (kg*cm): | 20 |
| Voltage range: | 4.8V-8.4V |
| Length (mm): | 40 |
| Height (mm): | 42.3 |
| Weight (g): | 63 |
| Control frequency: | Control frequency up to 333Hz, center pulse 1520us |
| High voltage capable up to 8.4V: | Yes |
| Engine type: | brush motor |
| Recommended use: | helicopter, airplane, car, boat |
| Ball bearings (number): | 2 |
| Voltage 1 (Volt): | 6.0 |
| Housing type: | partial metal |
| Output teeth (number): | 25 |
| Voltage 2 (Volt): | 8.4 |
| Gearbox type: | titanium |
| Classification: | standard |
