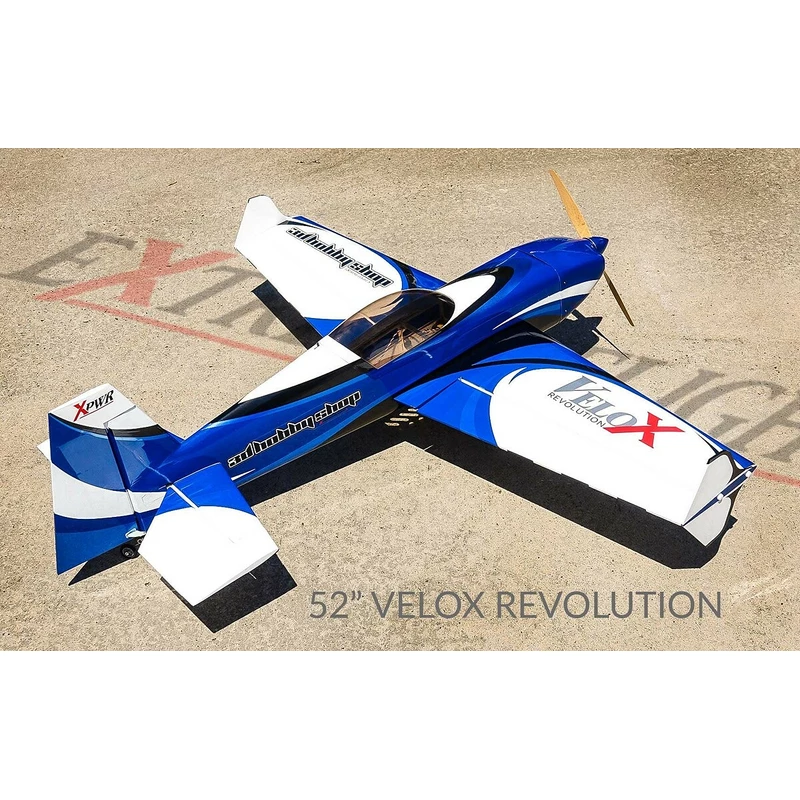

52 “Velox – Blue / White 1.32m

Sports semiscale model of aerobatic plane for electric brushless motor Xpwr T3910 for experienced pilots for flying classic precision and extreme 3D aerobatics.

The hull of the model is a classic construction of plywood and balsa laser-carved parts with composite reinforcements with a removable laminate engine cover and a removable upper fuselage with cab for perfect access to the propulsion system and RC equipment. The motor is mounted in the rear mounting on a plywood box bed.

The two-piece wing with symmetrical profile (halves are slid sideways on the carbon tubular coupling and secured with screws) is also a classic design with solid balsa coating. Wings with large surface are controlled by 2 independent servos. You can provide the wing ends with the supplied winglets.

The tail surfaces are all-balsa geodetic structures, GTC is one-piece with a stabilizer glued into the fuselage. Elevator and rudder is controlled by servos stored in the tail of the fuselage with short straight rods. The entire model is coated with iron-on ULTRACOTE (this is a US trademark for the well-known Oracover films).

The chassis is a spur-type with carbon main legs, light wheels with laminate covers and a wire spur with a carbon console coupled with a rudder.

To drive, you will need an Xpwr T3910 brushless motor with a 70-90 A speed controller powered from a four-cell 2500-3300 mAh LiPo battery with a load rating of at least 40C.

At least four-channel computer RC set suits model control – possibility of programming double and exponential deflections in the right size is essential for flying acrobatics – classic precision and extreme 3D -.

Servos meet fast and powerful in micro size – eg Hitec HS-5087MH, D85MG etc.

The kit includes: iron-on fuselage-coated fuselage, wing and tail, sprayed laminate engine cover, complete set of accessories, carbon undercarriage, spur, light wheels and instructions. < / p>
