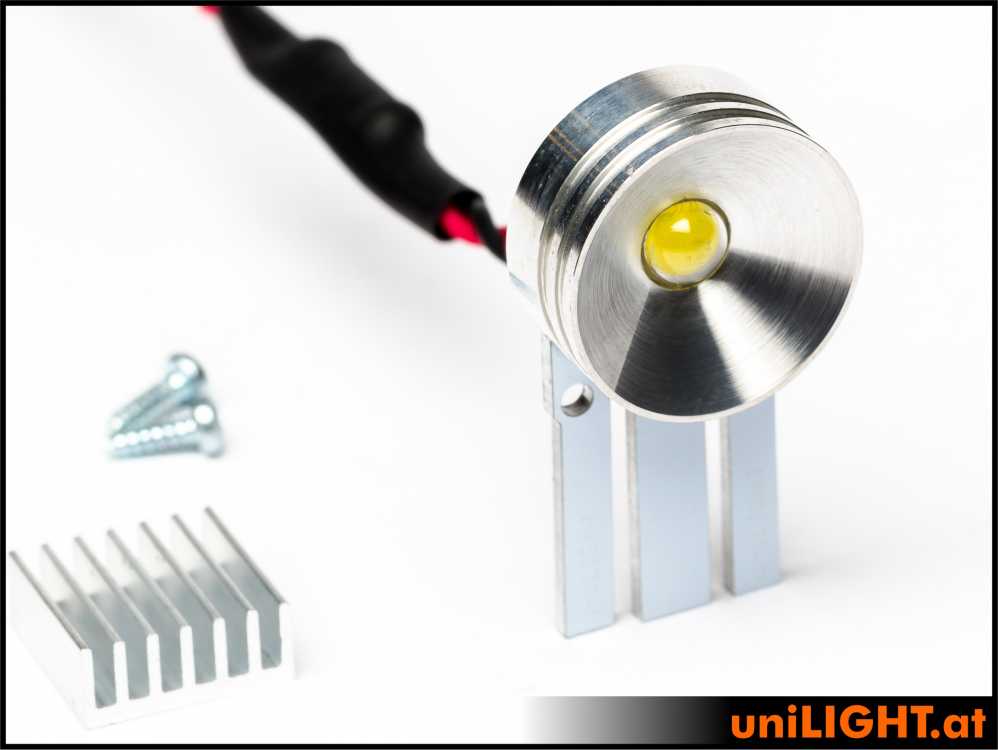

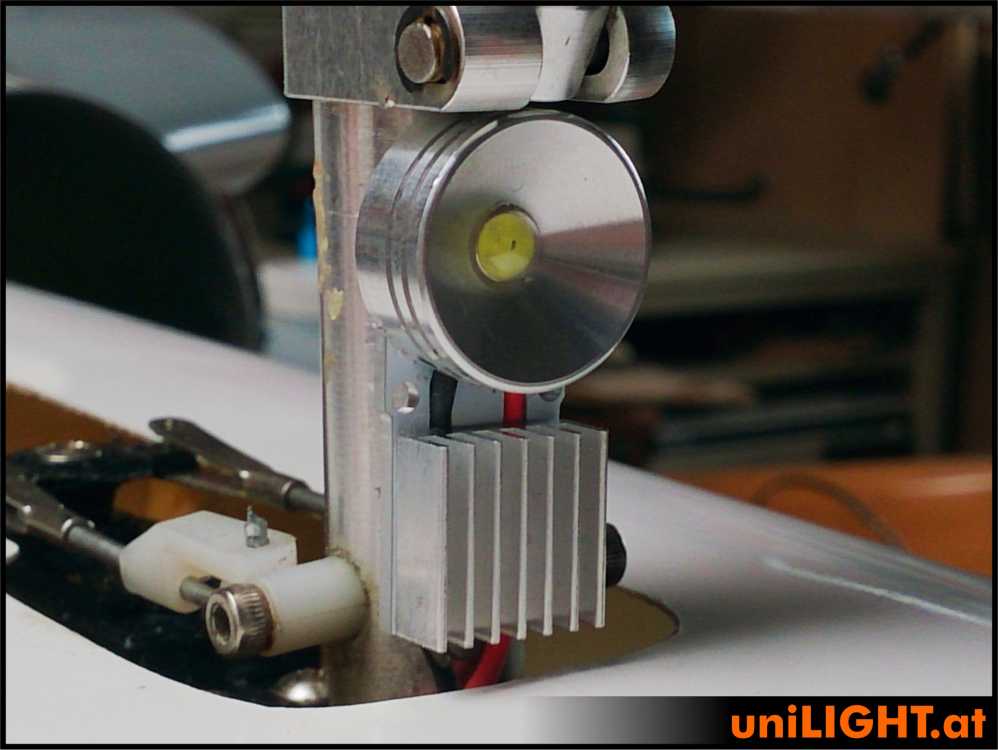

Flat headlight with CNC machined aluminum reflector with 20mm diameter and mounting plate for horizontal cooling. Ideal for chassis or as a folding headlight. The included heatsink can be glued on to improve uptime. The headlight can also be glued directly to the landing gear leg with a heat-conductive adhesive, then the mounting flanges can also be completely removed and only the reflector remains.
Direct operation with 2S LiPo (8V), with 3S (12V) the enclosed additional resistor must be soldered in or a 4W adapter cable (accessories) must be used. Please make sure that there is sufficient cooling air during operation.
Power: 4W reference power
voltage: 8V, use the enclosed resistor for 12V!
Current: 0.4A
Beam angle: ~100°
Luminous intensity: ~110 lumen WHITE Luminous
intensity: ~95 lumen WARM WHITE
Dimensions: D20x39x9mm
Weight: 7g (without cable
