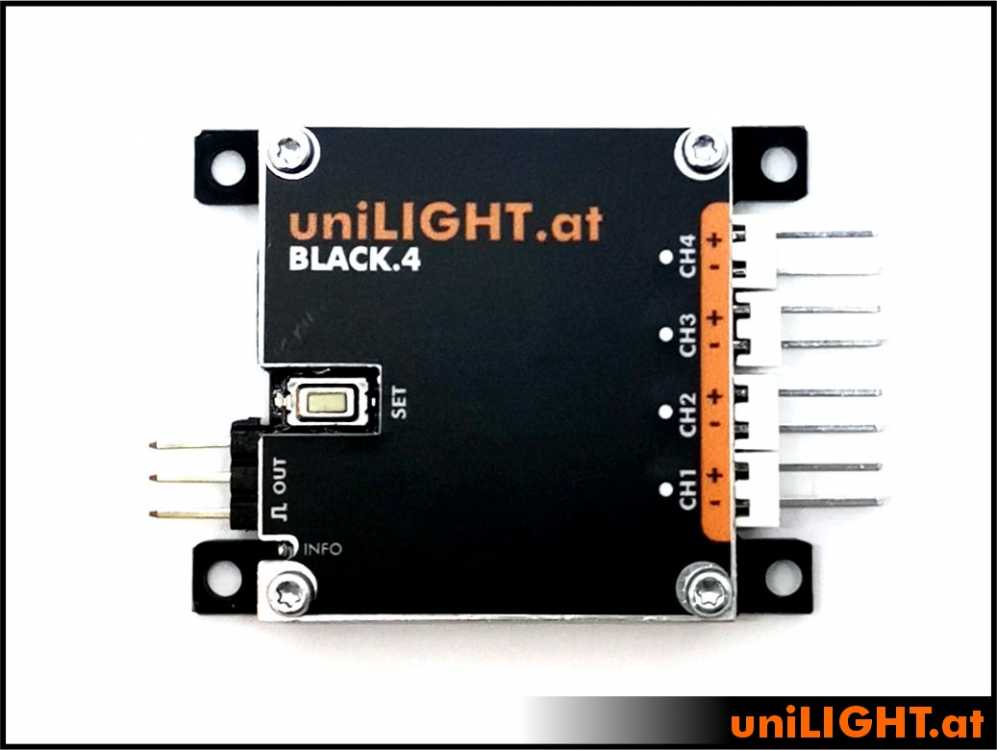

uniLIGHT BLACK.4

4-channel control of the latest generation: BLACK.4

Our Black.4 control unit is the new, slim standard control for uniLIGHT lighting systems. It delivers fast and brilliant results for all model areas, but has been significantly improved in all areas compared to its predecessor. With the 4 control functions, it operates strobes, beacon/ACL, navigation/position lights and headlights via just one remote control channel and is therefore ideally suited for almost every flight model. As an innovation, 16 new special functions for night and show flights are also offered.

Innovations of the BLACK series

• Dynamic more beautiful, faster and sharper defined lighting effects
• Diversity 3 times as many light schemes pre-programmed
• Dimension Reduced thickness and weight, reverse polarity protected connector as output
• Security Basic short-circuit protection with reactivation, reverse polarity protection
• Power Up to 5 amperes per channel continuous current, 8A in total
• Battery deep discharge protection for connected LiPo/LiIon
• Master-slave principle, no switch required in the load circuit
• Scale soft switching transition programmable as a special function
• Sport Navigation+Blitz special function for many sports tasks
• Future New hardware platform enables updates and extensions

special function

• Slow switching processes Soft switching transition to simulate incandescent lamp behavior or the simulation of a rotating beacon with slowly flashing functions.
• Fast switching processes The flash signal is subordinate to a basic component with around 20% power. This means that all strong flashing lights can now also be used as position lights AND flashing lights at the same time. Optimal application for all sports models: only one light but two

• Control side receiver 4.8-9.6V
• approx. 8g without cable
• Dimension 50x35x6mm
• Light signals 4 channels with 5A to 16V (>6A pulse)
• Total load up to 8A continuous (>10A pulse)
• Galvanically isolated system
• Operation also possible without RC signal
• 15+1 classic variable speed light scheme

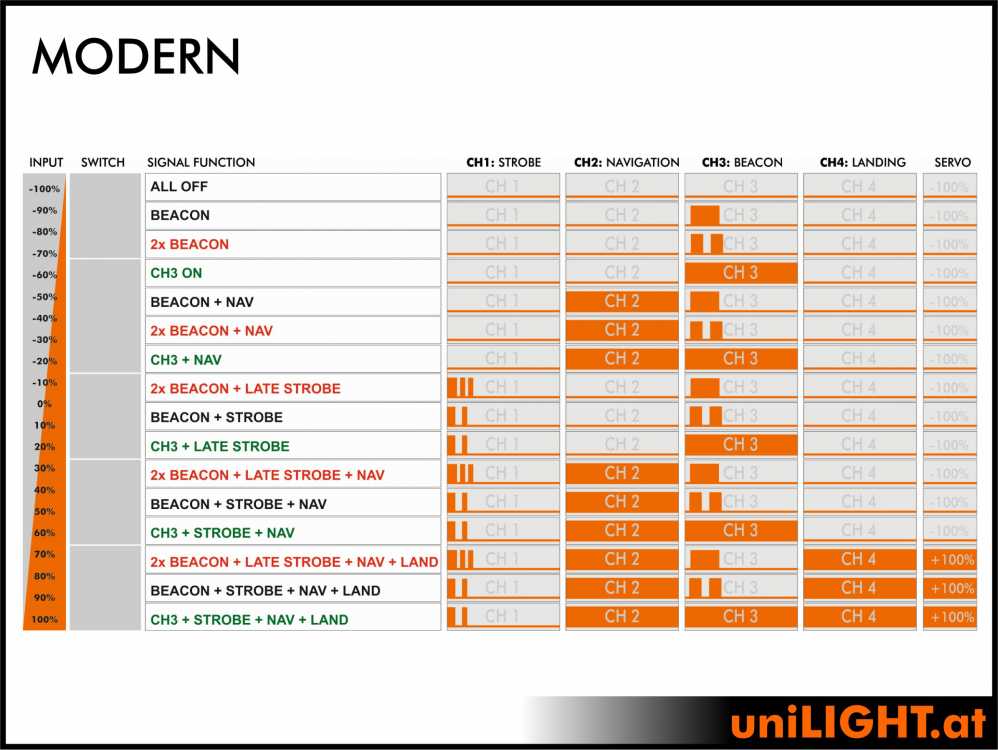

• 15+1 modern light scheme with variable speed
• 15+1 special effects with variable speed (running light, scanner, rotation,…)
• soft switching programmable
• Navigation with flash function programmable
• short circuit protection
• deep discharge protection
• reverse polarity protection
• Servo output for operating pop-up headlights, switches or valves
• Including mounting brackets for the quick release, 3m cable and description
